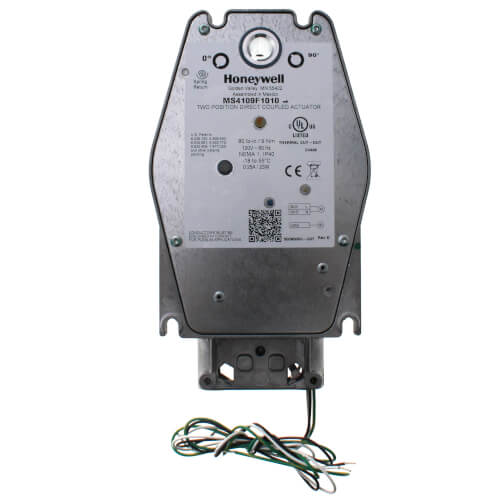

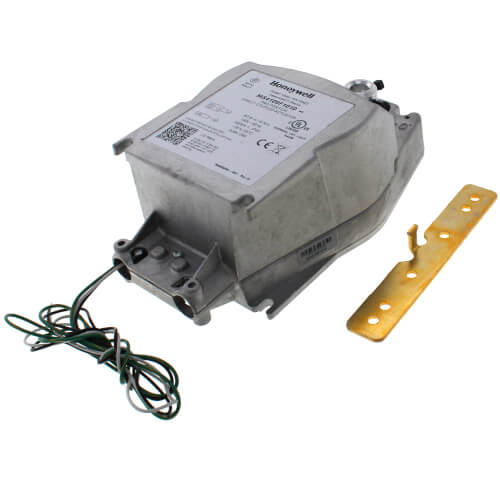

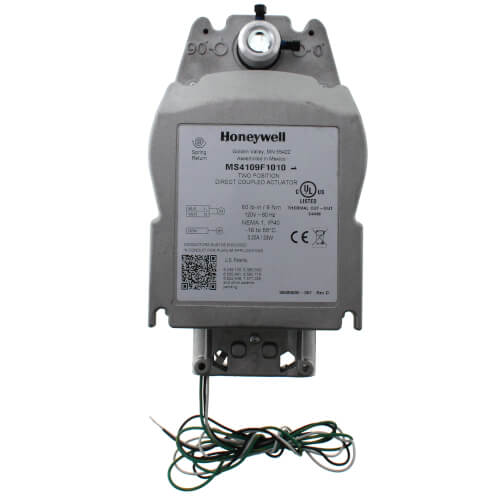

Honeywell MS4109F1010 Spring Return Fast Acting Two Position Actuator with 80 lb-in Torque

Product Description

The Honeywell MS4109F1010 Actuator is a fast-acting, two-position actuator designed for fire and smoke control systems. This actuator operates at 120V and provides 80 lb-in torque for direct coupled action. It's suitable for on/off control and accepts a signal from a single-pole, single-throw controller.

• Reversible mounting allows for clockwise or counterclockwise spring rotation.
• Patent pending design eliminates the need for limit switches, reducing power consumption.
• Ninety-five degree angle of rotation ensures robust operation.

Product Highlights

Crafted by Honeywell, this actuator guarantees efficient fire and smoke control. It features a fifteen-second spring return timing and makes no audible noise during holding. This unit is designed to operate reliably in harsh conditions requiring Underwriter's Laboratories Inc. UL555S ratings up to 350°F.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MS4109F1010

Technical Specifications

• Voltage: 120V AC
• Torque: 80 lb-in
• Spring Return: Yes
• Signal Type: On/Off
• Mounting Type: Direct Mount
• Operating Temperature Range: 0°F to 130°F
• Ambient Temperature Range: -40°F to 140°F
• Size: 8-15/16 in (Height) x 5-1/8 in (Width) x 3-1/4 in (Depth)
