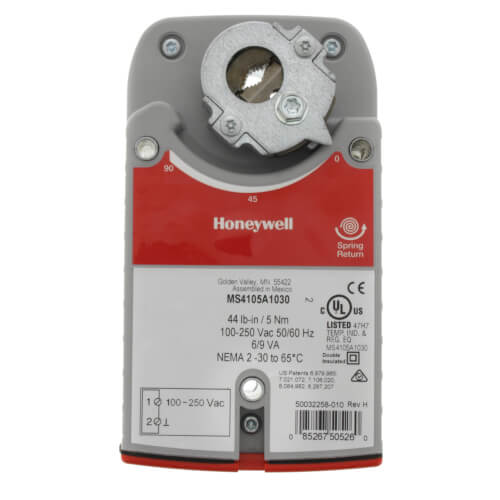

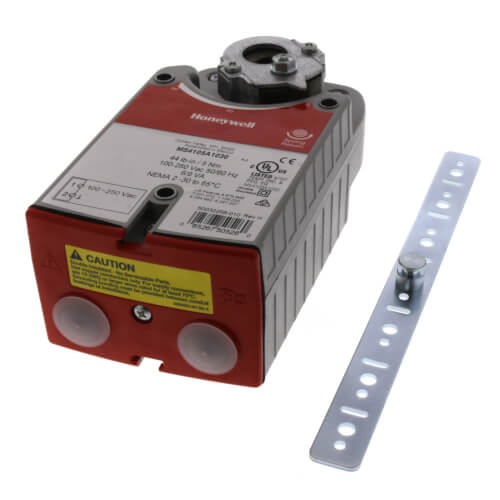

Honeywell MS4105A1030 Electric Actuator 120/230V Two Position Spring Return

Product Description

Honeywell's MS4105A1030 Electric Actuator is engineered for reliable operation in HVAC systems requiring spring return fail-safe operation. This actuator delivers a torque of 44 pounds per inch, suitable for controlling a variety of quarter-turn final control elements.

• Robust metal housing with built-in mechanical end limits.
• Inclusive of a self-centering shaft adapter accommodating a wide range of shaft sizes.
• UL listed and CE compliant; suitable for use in plenum-rated areas.

Product Highlights

Features electronic stall protection with a universal voltage range of 120/230V, facilitating easy integration into existing systems. Its rotational capacity and manual override capabilities ensure easy installation and operation.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MS4105A1030

Technical Specifications

• Torque: 44 lb-in
• Voltage: 120/230V AC
• Actuator Type: Two Position
• Control Type: SPST
• Operating Temperature Range: -22 to 149F
• Connection Type: Screw Terminal
