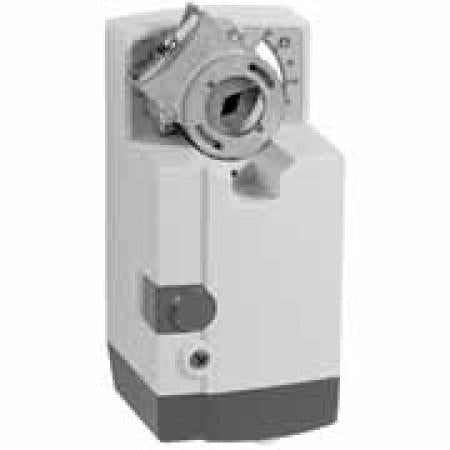

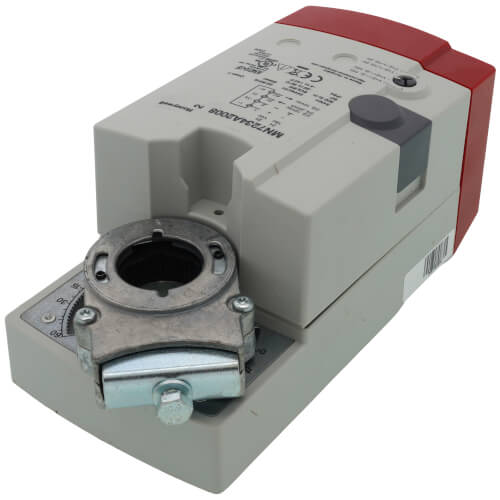

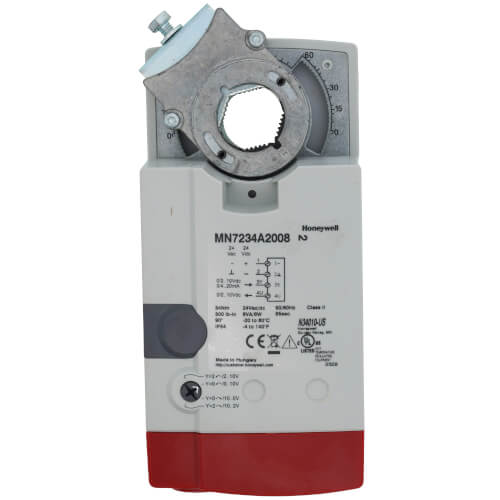

Honeywell MN7234A2008 24v Non-Spring Return Actuator 300 lb-in

Product Description

The Honeywell MN7234A2008 is a 24-volt non-spring return actuator offering 300 pound-inches of torque. This actuator features modulating control and is designed for various industrial applications.

• Operating voltage: 24V AC/DC
• Torque: 300 lb-in
• Control signal: 0-10 VDC, 4-20 mA

Product Highlights

The Honeywell MN7234A2008 actuator is suitable for air dampers, air handling units, ventilation flaps, and louvers. It offers reliable and adjustable control, even for larger damper areas up to 50 square feet.

Product Information

Standard Information

• Brand: Honeywell
• Model: MN7234A2008

Technical Specifications

• Torque: 300 lb-in
• Control Signal: 0-10 VDC, 4-20 mA
• Power Supply: 24V AC/DC
• Number of Internal Auxiliary Switch: 0
• Rotation Angle: 95 +/- 3 degrees
• Mounting: Direct coupled
• Actuator Type: Damper, Valve
• Fail Safe Mode: Non-spring return
• Material: Plenum rated plastic housing
• Weight: 3.56 pounds
• Environmental Rating: NEMA2
• Dimensions: 8.78 inches high x 3.62 inches wide x 3.15 inches deep
• Approvals: UL873, cUL, CE, C-Tick
