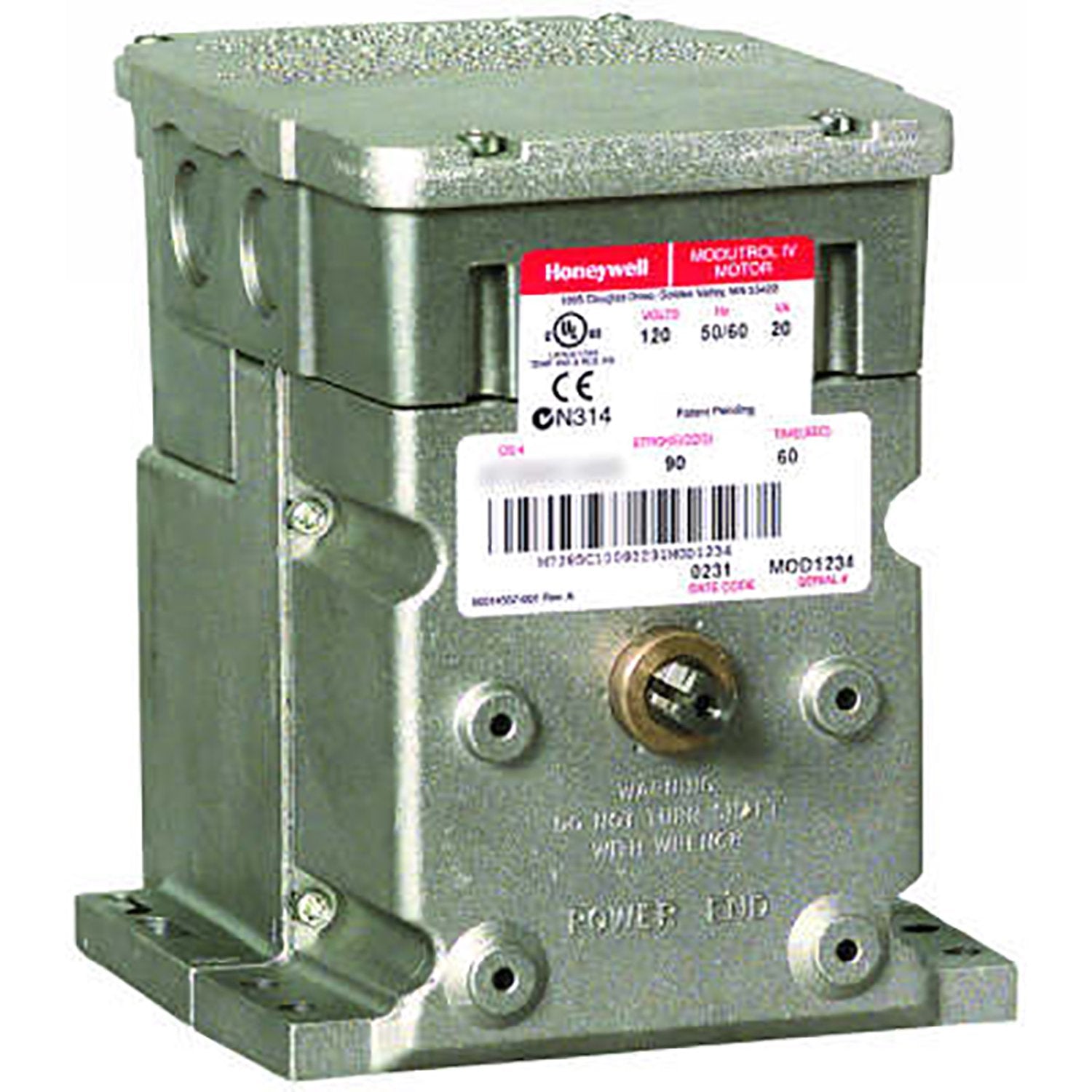

Honeywell M9174C1025 Modutrol IV Motor 120V 75 lb

Product Description

The Honeywell Modutrol IV Motor M9174C1025 is designed for industrial applications. This 120V modulating motor features advanced control capabilities and a robust construction, ensuring reliable performance in demanding environments.

• 120V operation for industrial applications
• Includes transformer and dual auxiliary switches
• Suitable for controlling heating or cooling systems

Product Highlights

The Honeywell M9174C1025 offers precision temperature control with modulating operation and two auxiliary switches for additional control options. Its compact design allows for easy installation.

Product Information

Standard Information

• Brand: Honeywell
• MPN: M9174C1025

Technical Specifications

• Voltage: 120V
• Torque Rating: 75 lb-in
• Dimensions: 6 7/16 inches high x 5 1/2 inches wide x 7 5/16 inches deep
• Timing: 30 - 60 seconds
• Control Signal: Proportional, 135 Ohm
• Fail Safe Mode: Non-Spring Return
• Operating Temperature Range: -40 to 150 degrees Fahrenheit
• Electrical Connections: Quick Connect Terminals
