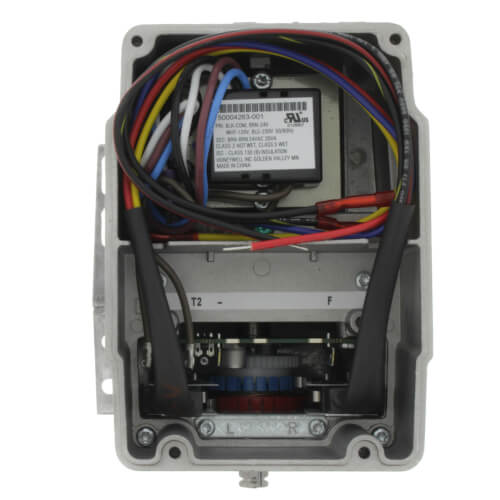

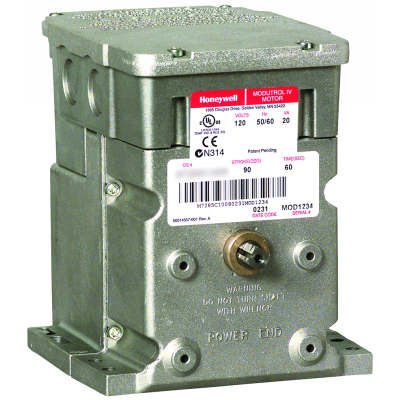

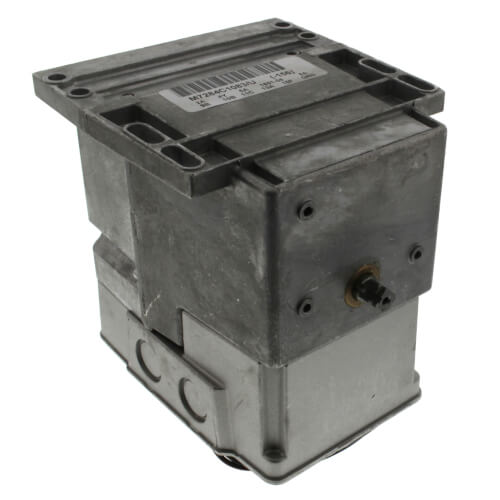

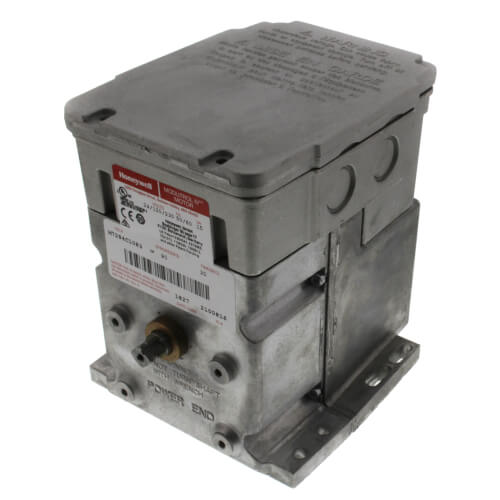

Honeywell M7284C1083 24V Non Spring Return Mod Motor 4-20mA

Product Description

The Honeywell M7284C1083 is a 24V non-spring return modulating motor. This motor replaces the M7284C1059 model, providing reliable control for valves and dampers in industrial and commercial applications.

• Power supply: 24V AC with a maximum voltage rating of 230V.
• Capable of handling an input signal range of 4 to 20 mA.
• Features include a foot mount and torque capacity of 150 inch-pounds.

Product Highlights

This actuator is designed for precise positioning of dampers and valves. The robust design is suitable for demanding environments, ensuring durability and efficiency in operation.

Product Information

Standard Information

• Brand: Honeywell
• MPN: M7284C1083

Technical Specifications

• Torque: 150 inch-pounds
• Voltage Rating: 24/120/230 Volt AC
• Current Rating: 0.24 Amp
• Frequency Rating: 50/60 Hz
• Angle of Rotation: 90 degrees
• Dimensions: 5.5 inches width x 7.3125 inches depth x 6.4375 inches height
• Operating Temperature: -40 to 150 degrees Fahrenheit
• Approval: UL (Canada and US), CE
