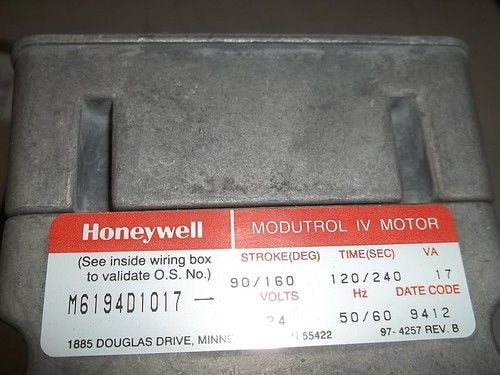

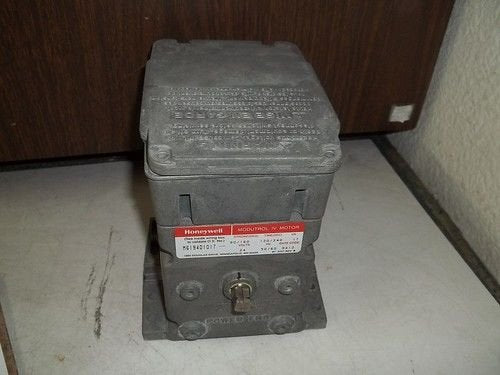

Honeywell M6194D1017 24V Non-Spring Return Foot-Mounted Modutrol IV Motor 300 lb-in Torque

Product Description

The Honeywell M6194D1017 is a 24-volt non-spring return foot-mounted Modutrol IV motor with a torque of 300 lb-in. This motor is designed for use with controllers that provide a switched SPDT or floating output to operate dampers or valves.

• Provides precise control of fluid flow
• Non-spring return design
• Operates from 24 VAC

Product Highlights

This Honeywell motor features a sturdy design and reliable performance, making it suitable for various industrial applications such as chemical processing, water treatment, and manufacturing. With a timing range of 120 to 240 seconds, it ensures precise and repeatable control to meet demanding process requirements.

Product Information

Standard Information

• Brand: Honeywell
• Model: Modutrol IV
• MPN: M6194D1017

Technical Specifications

• Application Type: Electric
• Fail Safe Mode: Non-Spring Return
• Control Signal: Floating
• Motor Shaft: Dual-ended Shaft
• Stroke: Adjustable; 90 to 160 degrees
• Power Consumption: 15 VA
• Dimensions: 6 7/16 inches high x 5 1/2 inches wide x 8 3/4 inches deep
• Weight: 6.10 lbs
• Temperature Range: -40 to 150F
• Torque: 300 lb-in
