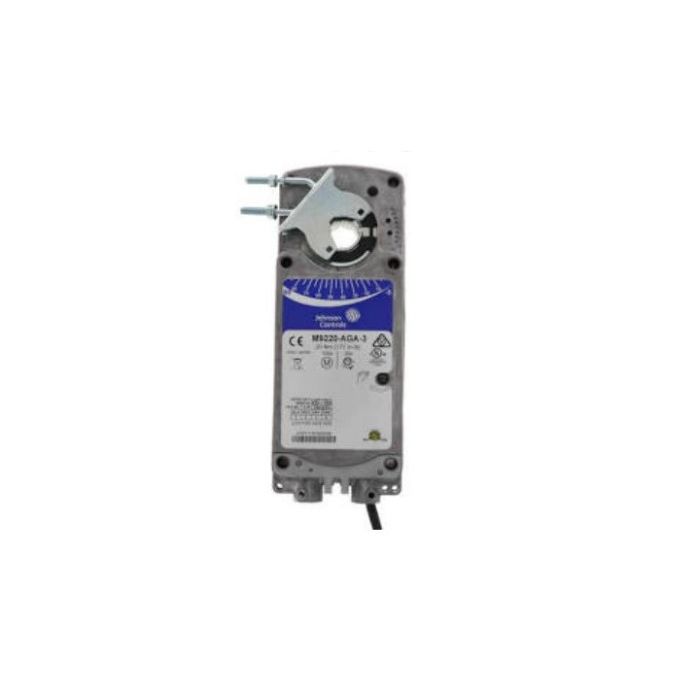

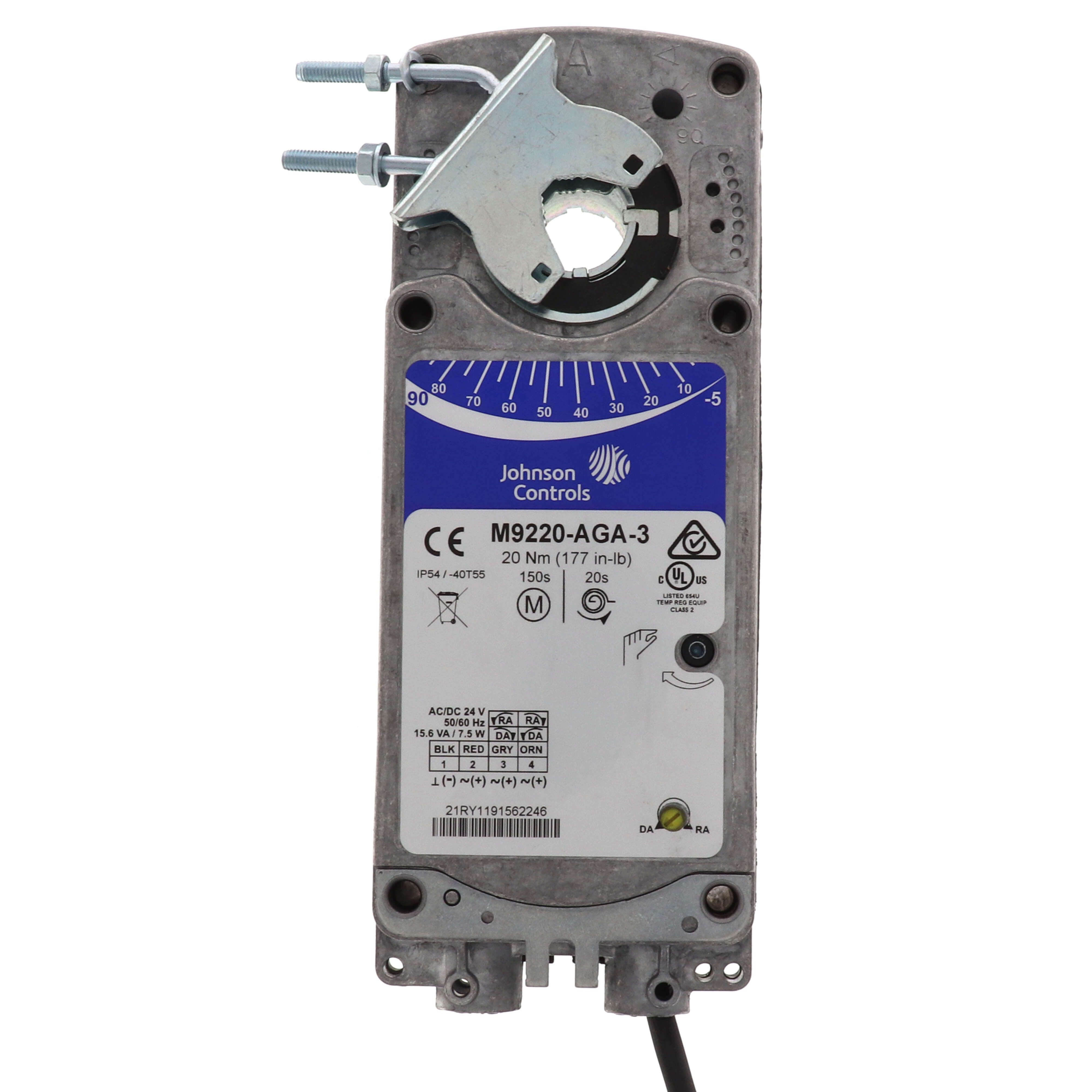

Johnson Controls M9220-AGA-3 Electric Spring-Return Actuator 24 VAC Package of 1

Product Description

The Johnson Controls M9220-AGA-3 is a high-performance electric spring-return damper actuator designed for efficient operation in HVAC systems. This model allows for precise control of air dampers and valves without the need for damper linkages.

• Equipped with bidirectional functionality to accommodate various damper shafts.
• Incorporates electronic stall detection to safeguard against overload.
• Features integral halogen-free cables and a NEMA 2 rated enclosure for enhanced durability.

Product Highlights

This actuator provides robust performance with a torque of 177 lb-in and includes options for mounting on both round and square shafts using the standard shaft clamp. It supports multiple voltage inputs and offers flexible control options through its floating control feature.

Product Information

Standard Information

• Model: M9220-AGA-3
• Brand: Johnson Controls
• Type: Electric Spring-Return Damper Actuator

Technical Specifications

• Power requirements: 24 VAC, 50/60 Hz or DC 24 V
• Running and spring-return torque: 177 lb-in
• Rotation range: Bidirectional
• Included components: Standard shaft clamp, optional Jackshaft Coupler Kit

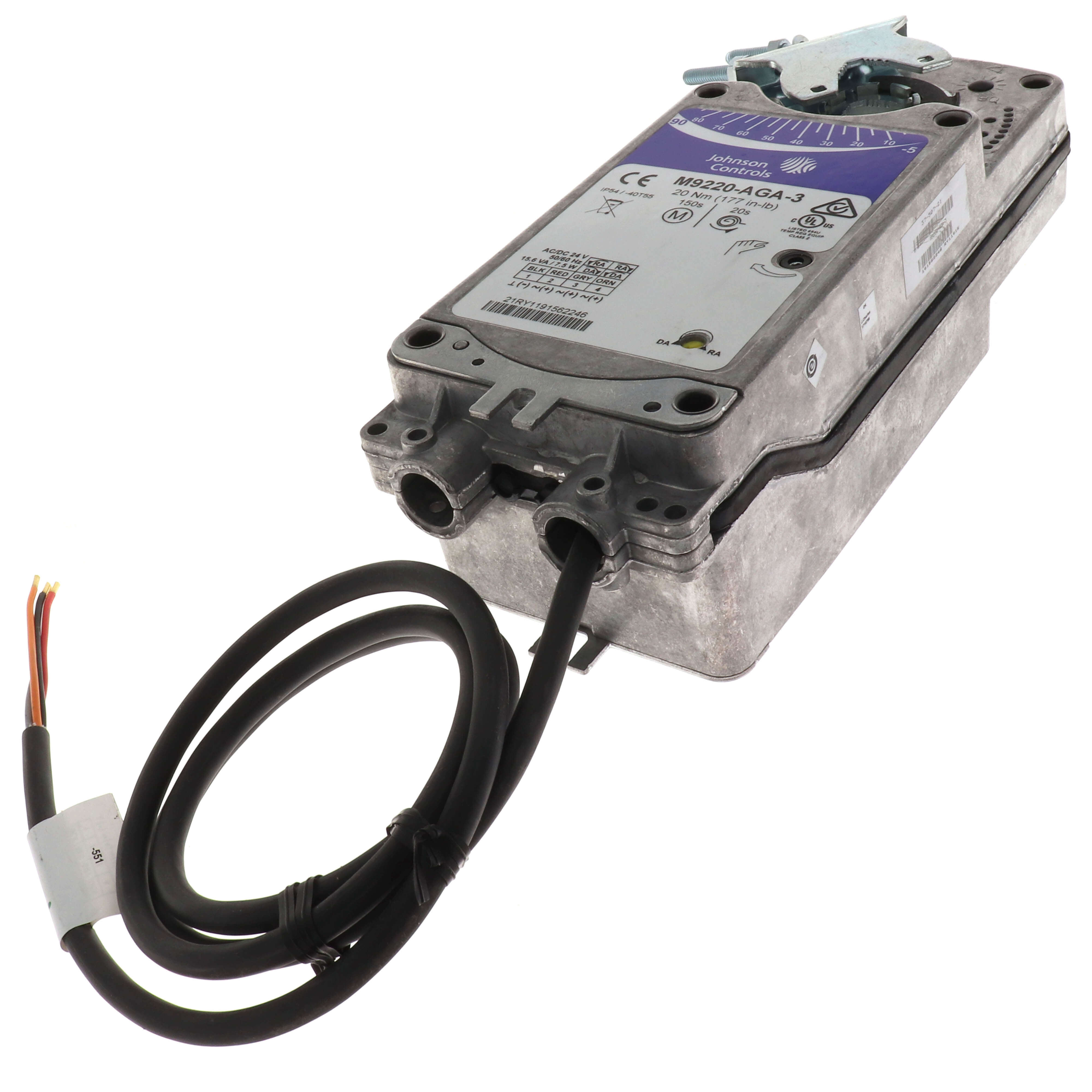

• Electrical connections: 48 in. 18 AWG appliance cable
