Dallas Specialty DS56-66SR C.I.,Pvc x C.I.,Pvc 6 inches x 6 inches

Product Description

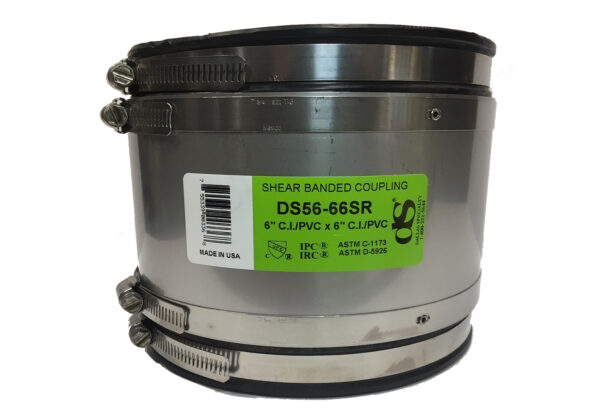

The Dallas Specialty DS56-66SR is a shear banded flexible PVC pipe coupling. This coupling is designed for C.I.,PVC x C.I.,PVC connections, providing flexibility of +/- 5% OD. Suitable for various applications requiring a secure and adaptable pipe connection.

• Size: 6" x 6"
• Material: Flexible PVC
• Temperature Range: -30 to 140

Product Highlights

Flexible PVC pipe coupling with shear band, ideal for C.I.,PVC x C.I.,PVC connections.

Product Information

Standard Information

• Brand: DALLAS SPECIALTY
• Manufacturer Part Number: DS56-66SR

Technical Specifications

• Part #: DS56-66SR
• Other UOM: CS
• Barcode #: 755339003368
• Catalogue Page: 9
• Product Class: SRA
• Size: 6" x 6"
• Series: C.I.,PVC x C.I.,PVC DS56SR
• DIM "A" Inch: 6.50"
• DIM "A" MM: 165
• DIM "B" INCH: 6.50"
• DIM "B" MM: 165
• DIM "C" INCH: 6.00"
• DIM "C" MM: 152
• Band 1: DS-116
• Band 2: DS-116
• Band 3: DS-SR-27
• Case QTY: 15
• Part Weight: 2.75#
• Case Weight: 41.25#
• Min Temp: -30
• Max Temp: 140
• Resin/Material: FLEXIBLE PVC
• Install Torque: 60 IN LBS
• ASTM: C-1173 D-5926
• IPC/IRC: 1
• CUPC: 1
• Information: FLEXIBILITY +/- 5% OD
