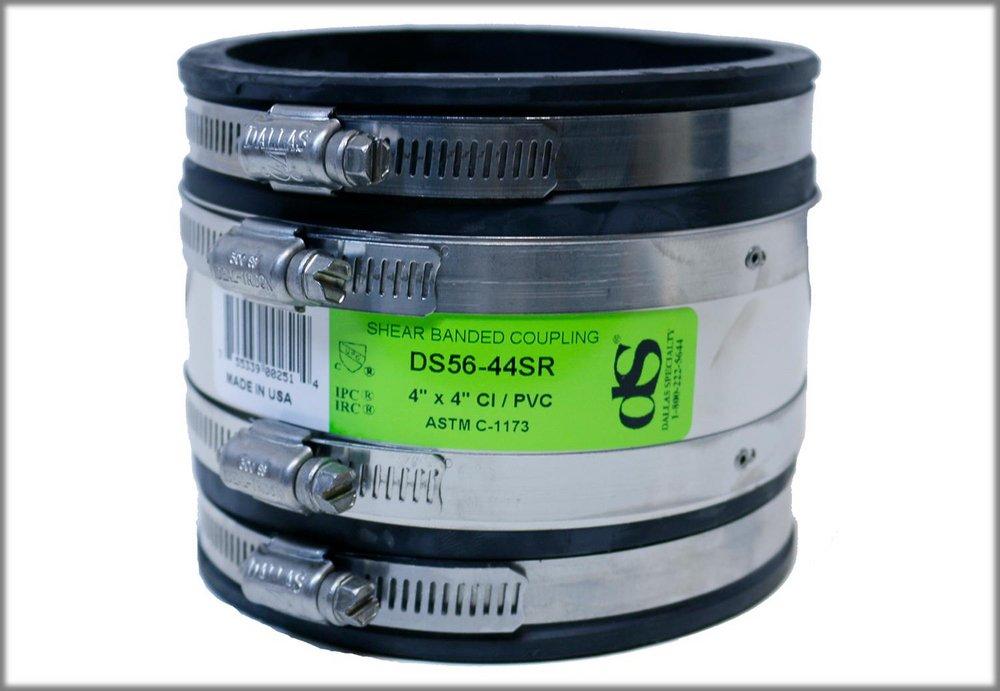

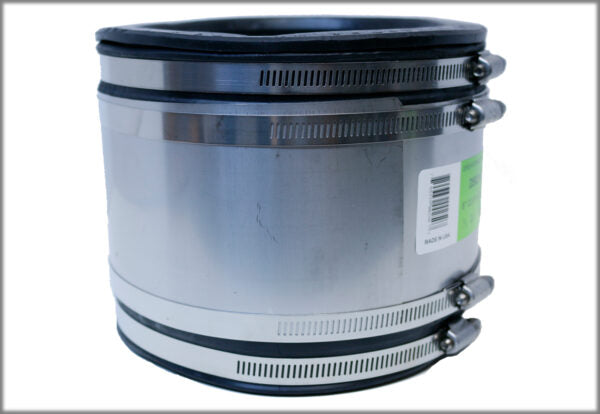

Dallas Specialty DS56-44SR C.I.,PVC x C.I.,PVC DS56SR 4 inches x 4 inches

Product Description

The Dallas Specialty DS56-44SR is a shear banded flexible PVC pipe coupling. It provides flexibility of +/- 5% OD. This coupling is suitable for use with cast iron and plastic pipes. It is designed for easy installation and secure connection in various plumbing applications.

• SHEAR BANDED FLEXIBLE PVC PIPE COUPLING
• Fitting Size 1: 4 in
• Material: Stainless Steel, Rubber, Plastic

Product Highlights

Flexible PVC pipe coupling for plumbing applications, ensuring secure connections.

Product Information

Standard Information

• Brand: DALLAS SPECIALTY
• Manufacturer Part Number: DS56-44SR

Technical Specifications

• Part #: DS56-44SR
• Barcode #: 755339002514
• Catalogue Page: 9
• Product Class: SRA
• Size: 4" x 4"
• Series: C.I.,PVC x C.I.,PVC DS56SR
• DIM "A" Inch: 4.38"
• DIM "A" MM: 111
• DIM "B" INCH: 4.38"
• DIM "B" MM: 111
• DIM "C" INCH: 4.00"
• DIM "C" MM: 101
• Band 1: DS-80
• Band 2: DS-80
• Band 3: DS-SR-18
• Min Temp: -30
• Max Temp: 140
• Resin/Material: FLEXIBLE PVC
• Install Torque: 60 IN LBS
• ASTM: C-1173 D-5926
• IPC/IRC: 1
• CUPC: 1
• Information: FLEXIBILITY +/- 5% OD
• End Connection 1: Clamp
• End Connection 2: Clamp
• End Connections: Clamp
• Fitting Size 1: 4
• Fitting Size 2: 4
• Fitting Sizes: 4 in
• Fitting Type: Straight
• Material: Stainless Steel, Rubber, Plastic
• Material Type: 300L, Vinyl
