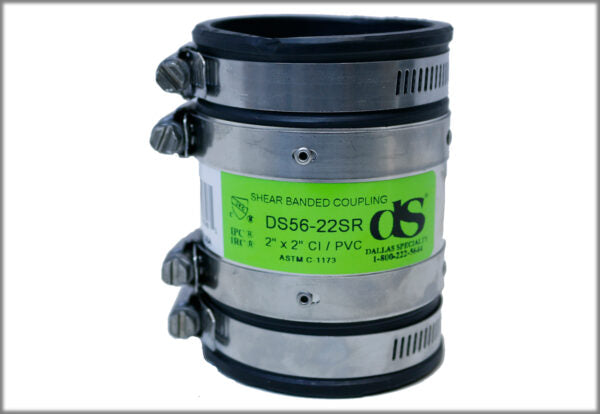

Dallas Specialty DS56-22SR C.I.,PVC x C.I.,PVC DS56SR 2 inches x 2 inches

Product Description

The Dallas Specialty DS56-22SR C.I.,PVC x C.I.,PVC DS56SR is a shear banded flexible PVC pipe coupling. Designed for use in various plumbing applications, this coupling provides flexibility with +/- 5% OD. It conforms to ASTM C-1173 and D-5926 standards and is IAPMO/UPC, IPC/IRC, and CUPC certified.

• Shear banded
• Flexible PVC pipe coupling
• Suitable for use in plumbing applications

Product Highlights

Flexible PVC pipe coupling with shear band, conforming to industry standards and certifications.

Product Information

Standard Information

• Brand: DALLAS SPECIALTY
• Manufacturer Part Number: DS56-22SR

Technical Specifications

• Part #: DS56-22SR
• Other UOM: CS
• Barcode #: 755339003481
• Catalogue Page: 9
• Product Class: SRA
• Size: 2" x 2"
• Series: C.I.,PVC x C.I.,PVC DS56SR
• DIM "A" Inch: 2.40"
• DIM "A" MM: 60
• DIM "B" INCH: 2.40"
• DIM "B" MM: 60
• DIM "C" INCH: 3.50"
• DIM "C" MM: 88
• Band 1: DS-40
• Band 2: DS-40
• Band 3: DS-SR-11
• Case QTY: 54
• Min Temp: -30
• Max Temp: 140
• Resin/Material: FLEXIBLE PVC
• Install Torque: 60
• ASTM: C-1173 D-5926
• IAPMO/UPC: 1
• IPC/IRC: 1
• CUPC: 1
• Information: FLEXIBILITY +/- 5% OD
