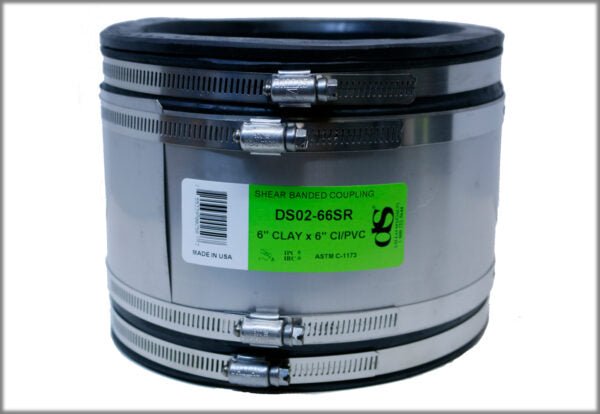

Dallas Specialty DS02-66SR Clayxc.i.,pvc coupling 6 inches x 6 inches

Product Description

The DALLAS SPECIALTY DS02-66SR is a shear banded flexible PVC pipe coupling. It provides flexibility with +/- 5% OD. Designed for use in various plumbing applications, this coupling ensures a secure and adaptable connection between pipes. Ideal for connecting pipes in residential, commercial, and industrial settings.

• Shear banded
• Flexible PVC pipe coupling

Product Highlights

Flexible PVC pipe coupling with shear band for secure pipe connection.

Product Information

Standard Information

• Brand: DALLAS SPECIALTY
• Manufacturer Part Number: DS02-66SR

Technical Specifications

• Part #: DS02-66SR
• SKU: 3a525e93c9e8
• Other UOM: CS
• Barcode #: 755339002507
• Catalogue Page: 9
• Product Class: SRA
• Size: 6" x 6"
• Series: CLAYxC.I.,PVC DS02SR
• DIM "A" Inch: 7.38"
• DIM "A" MM: 187
• DIM "B" INCH: 6.60"
• DIM "B" MM: 165
• DIM "C" INCH: 6.00"
• DIM "C" MM: 152
• Band 1: DS-128
• Band 2: DS-116
• Band 3: DS-SR-30
• Case QTY: 6
• Part Weight: 4.85#
• Case Weight: 29#
• Min Temp: -30
• Max Temp: 140
• Resin/Material: FLEXIBLE PVC
• Install Torque: 60
• ASTM: C-1173 D-5926
• IPC/IRC: 1
• CUPC: 1
• Information: FLEXIBILITY +/- 5% OD
