Dakota Plumbing Products DSZ-A3020 Apron Sink Single Bowl

Product Description

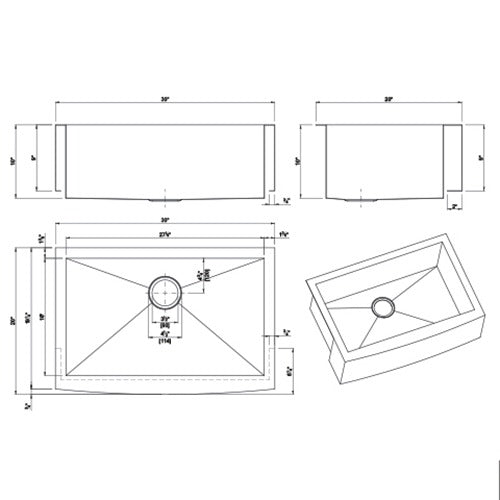

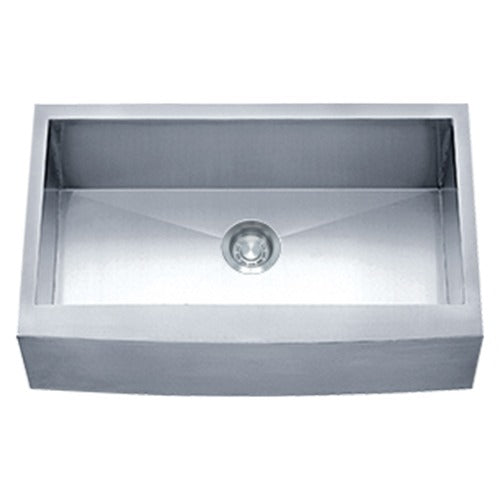

The DAKOTA PLUMBING PRODUCTS DSZ-A3020 is a single-bowl apron-front undermount kitchen sink built from 16-gauge 304 stainless steel with an 18/10 chrome-nickel composition. The zero-radius corner design delivers sharp 90-degree angles that maximize usable bowl volume and give the sink a clean, contemporary profile. Overall dimensions are 30 inches (L) by 20 inches (W) by 10 inches (D), with a bowl interior measuring 27.125 inches by 16 inches by 10 inches. This model ships in a Satin Brushed Nickel finish. Licensed plumbers and remodeling contractors install this sink as a primary kitchen or bar fixture.

The DSZ-A3020 is suited for residential kitchen and bar installations requiring an apron-front, single-bowl configuration. It requires a base cabinet of 33 inches or larger. The rear-positioned 3.5-inch center drain works with the integrated channeled bottom to direct water away efficiently and reduce standing water. A thermal undercoating and oversized sound-dampening pads are factory-applied under the sink deck to control noise during heavy use and limit condensation transfer to the cabinet below. This sink is part of the Zoria collection and is also available in Copper, Gold, Gunmetal Black, and Silver finishes.

Key Features

• 16-gauge 304 stainless steel construction with 18/10 chrome-nickel composition for corrosion resistance
• Zero-radius corners maximize bowl space and provide a modern aesthetic
• Rear-positioned 3.5-inch center drain with integrated channeled bottom for efficient drainage
• Peacekeeper sound absorption system with thermal undercoating and oversized dampening pads
• Ships with DSMZaBGA3020 bottom grid and DSAaPBSSS basket strainer included
• Optional 11-piece bar kit available for boxed orders

Compatibility

Designed for apron-front undermount installation in base cabinets 33 inches or larger. Drain opening accepts a standard 3.5-inch basket strainer.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes. Shut off the water supply and disconnect the drain before removing an existing sink. Apron-front sinks require cabinet face modification or a purpose-built apron-front cabinet; verify cabinet rough opening dimensions before installation. Do not overtighten the basket strainer locknut against the stainless steel drain collar.
