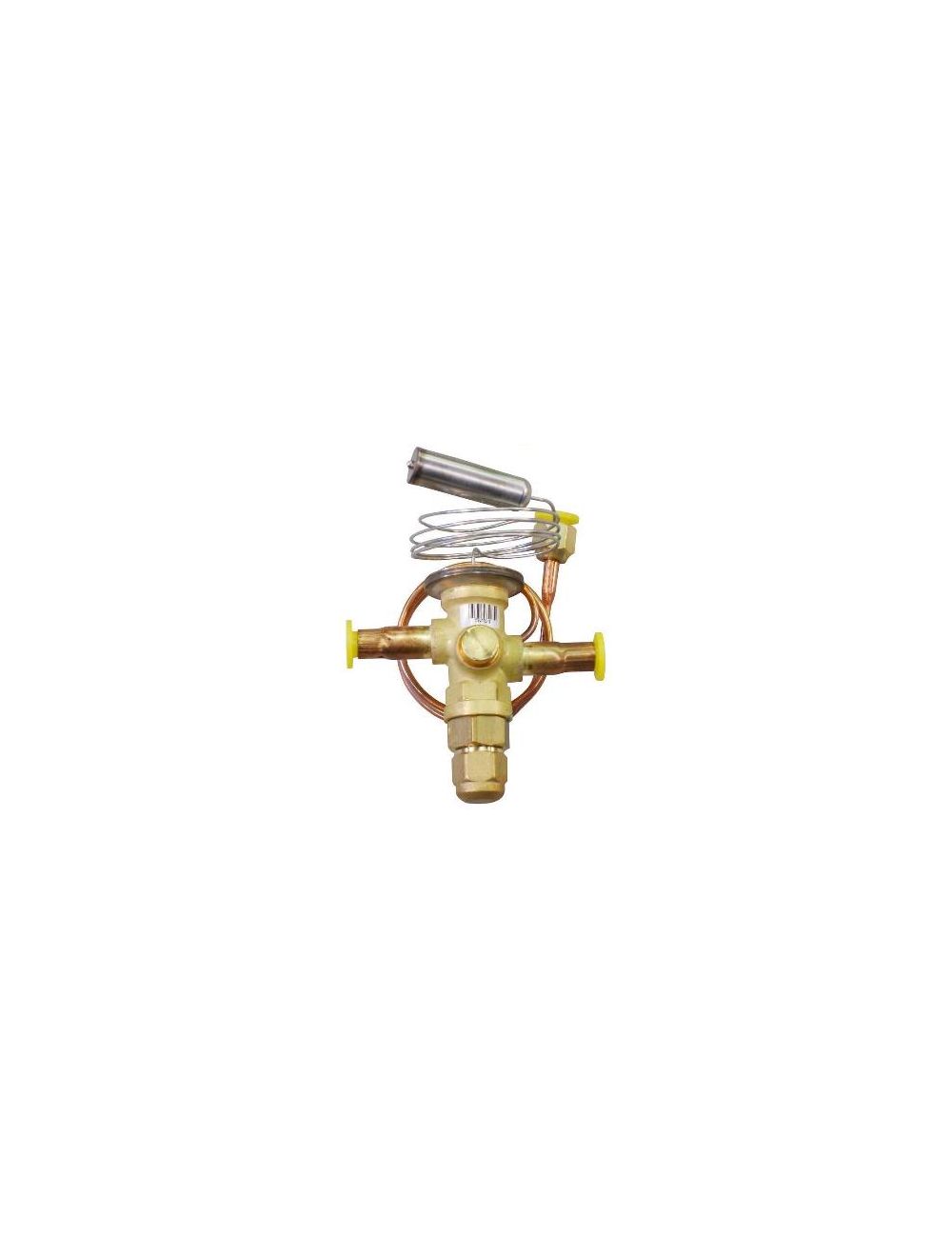

Daikin TX3N4 2 - 3 Ton R-410A Thermal Expansion Valve

Product Description

The DAIKIN TX3N4 is a thermal expansion valve designed for use with 2 to 3 ton units. It controls the amount of refrigerant flow into the evaporator, thereby controlling the superheating at the outlet of the evaporator. It is compatible with R-410A refrigerant and requires certification for use.

• Requires Certification
• Nominal size: 1/4 in
• Flared connection

Product Highlights

This thermal expansion valve is designed for air conditioning and residential applications. It is compatible with multiple models.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: TX3N4

Technical Specifications

• A2L Compatible: No
• Application: Air Conditioner, Residential
• Fits Model: GSX130301, GSX130361, DSXC160361, GSZ130301, GSZ130361, SSZ140301, SSZ140361, SSZ140381, SSZ160301, SSZ160361, DSZC160361, DSZC180361, CHPF3636B6
• Refrigerant: R-410A
• Tonnage: 2 - 3 Ton
• Valve Type: Thermal Expansion Valve
• Nominal Size: 1/4 in
• Connection Type: Flared
• Brand: Daikin
• Manufacturer: Daikin
• Nominal Capacity (Tons): 3

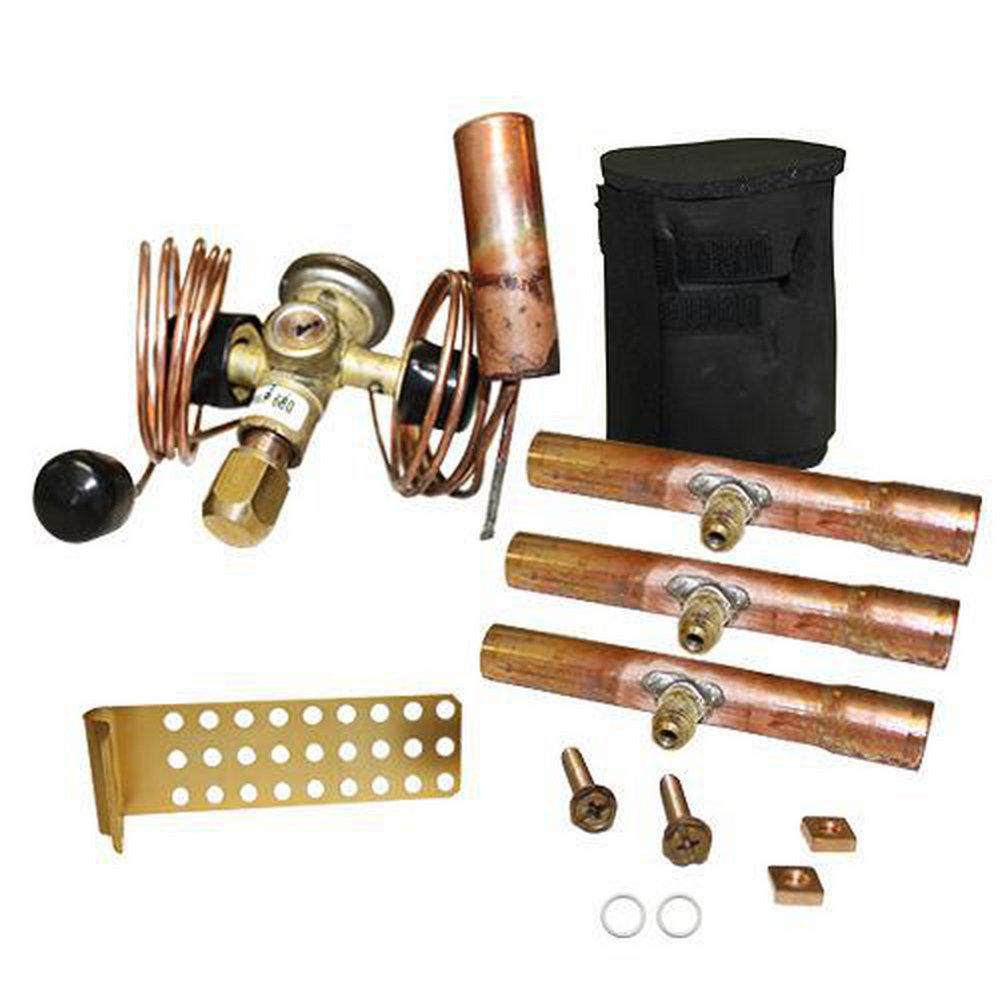

• Item Name: Thermostatic Expansion Valve Kit
• Type: Non-Bleed
• For Use With: GSZ16 2.5 - 3 tons High-Efficiency Split System Heat Pump, Non-TXV, Non-EEV Coils
