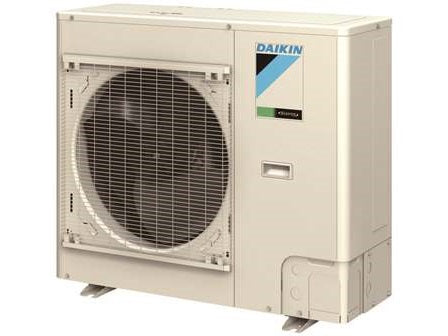

Daikin RZQ30PVJU8 SkyAir Heat Pump, Single Zone 2.5 tons

Product Description

The DAIKIN RZQ30PVJU8 SkyAir Heat Pump is a single-zone outdoor unit with a 2.5-ton capacity. It utilizes inverter technology for precise temperature control and energy efficiency. Designed for light commercial applications, this heat pump operates with R-410A refrigerant and features a swing compressor.

• Inverter technology delivers precise temperature control and superior energy efficiency
• Suitable for light commercial applications

Product Highlights

The DAIKIN RZQ30PVJU8 is a 2.5-ton SkyAir heat pump with a swing compressor, designed for efficient and precise temperature control in light commercial settings.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: RZQ30PVJU8

Technical Specifications

• Class: Sky Air Heat Pump
• Family: RZQ_PVJU8
• Tonnage: 2.5 tons
• Category: Sky Air Heat Pump
• Keywords: RZQ30PVJU8
• ERP Alias: RZQ30PVJU8 C
• Unit Type: Outdoor
• Unit Depth: 12-5/8 in
• Unit Width: 35-7/16 in
• Power Phase: 1 Ph
• Refrigerant Type: R-410A
• Unit Height: 30-5/16 in
• Min. Circuit Amps: 16.5 A
• Power Voltage: 208-230 V
• Compressor Type: Swing
• Power Frequency: 60 Hz
• Product Benefits: Inverter technology delivers precise temperature control and superior energy efficiency
• Family Description: 1.5 - 3.5 Ton Heat Pump
• Product ID Bar Code: RZQ30PVJU8
• Prop65 Label Required: TRUE
• Cooling Capacity Rated: 30000 Btu/H
• Heating Capacity Rated: 34000 Btu/H
• Airflow Rate High Cooling: 1835 ft³/min
• Brand: Daikin
• MPN: RZQ30PVJU8
• Product Category: Ductless Mini-Splits
• Product Class - (PIM): Sky Air Heat Pump
• System Family: Sky Air
• Function Category: Heat Pump
• Product Type: Equipment
• Market Type: Light Commercial
• Cooling Operation Range - (Std. Max): 115 °F
• Cooling Operation Range - (Std. Min): 23 °F
• Heating Operation Range - (Std.Max): 60 °F
• Heating Operation Range - (Std.Min): 0 °F
• Rated Cooling Condition - (Ambient DB): 95 °F
• Rated Cooling Condition - (Ambient WB): 75 °F
• Rated Cooling Condition - (Room DB): 80 °F
• Rated Cooling Condition - (Room WB): 67 °F
• Rated Heating Condition - (Ambient DB): 47 °F
• Rated Heating Condition - (Ambient WB): 43 °F
• Rated Heating Condition - (Room DB): 70 °F
• Rated Heating Condition - (Room WB): 60 °F
• Inter Connecting Wires: L1, L2, Ground
• Max Overcurrent Protection: 20 A
• Dimensions - (Unit Depth): 12-5/8 in
• Dimensions - (Unit Height): 30-5/16 in
• Dimensions - (Unit Width): 35-7/16 in
• Expansion Device: EEV
• Heat Exchanger Type: Air Cooled
• Sound Pressure (High) - Cooling: 49 dBA
• Additional Refrigerant Charge - (oz/ft): 0.036
• Condensate Drain Outlet: 1 in
• Factory Std. Refrigerant Charge: 5.1 lb
• Pipe Size Gas: 5/8 in
• Pipe Size Liquid: 3/8 in
• Rated Piping Length: 25 ft
• Standard Line Set Length - (Max): 164 ft
• Standard Line Set Length - (Vertical): 98 ft
• Proposition 65 Label: Yes
• Carton Type: CTN
• Case Qty: 1.0
• Release Status: Obsolete
