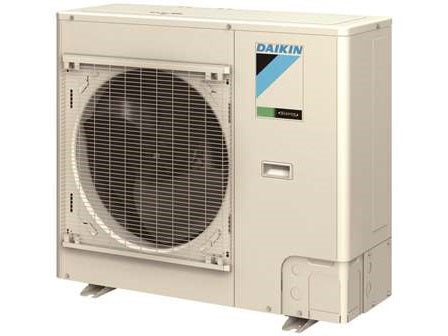

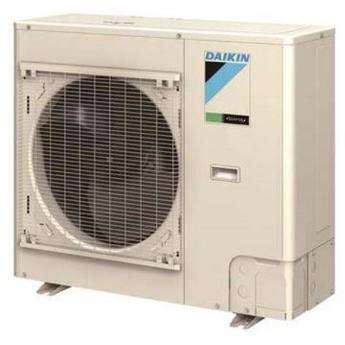

Daikin RZQ18PVJU9 Skyair Heat Pump, Single Zone 1.5 tons

Product Description

The Daikin RZQ18PVJU9 Skyair Heat Pump is a single zone outdoor unit. This heat pump provides both heating and cooling. It features inverter technology for precise temperature control and energy efficiency. The unit is optimized for R-410A refrigerant and has self-diagnostic capabilities.

• Inverter technology delivers precise temperature control and superior energy efficiency
• Maximum piping height separation up to 164 ft
• Quiet operation makes it ideal for many light commercial applications

Product Highlights

The Daikin Skyair heat pump provides efficient heating and cooling for single-zone applications. It is designed for quiet operation and easy installation.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: RZQ18PVJU9
• Country of Origin: Japan

Technical Specifications

• Class: Sky Air Heat Pump
• Family: RZQ_PVJU9
• Tonnage: 1.5 tons
• Category: Sky Air Heat Pump
• Keywords: RZQ18PVJU9
• Unit Type: Outdoor
• Unit Depth: 12-5/8
• Unit Width: 35-7/16
• Power Phase: 1 Ph
• Refrigerant Type: R-410A
• Unit Height: 30-5/16
• Min. Circuit Amps: 16.5 A
• Power Voltage: 208-230 V
• Power Frequency: 60 Hz
• Compressor Stages: Inverter
• Family Description: 1.5 - 3.5 Ton Heat Pump
• Product ID Bar Code: RZQ18PVJU9
• Prop65 Label Required: TRUE
• Cooling Capacity Rated: 18000 Btu/H
• Heating Capacity Rated: 20000 Btu/H
• Airflow Rate High Cooling: 1835 ft³/min
• Brand: Daikin
• MPN: RZQ18PVJU9
• Product Category: Ductless Mini-Splits
• System Family: Sky Air
• Function Category: Heat Pump
• Product Type: Equipment
• Short Description: SkyAir Heat Pump, Single Zone
• Country of Origin: Japan
• US HTS Code: 8415.90.8065
• Canadian HTS Code: 8415.90.90.00
• Cooling Operation Range - (Std. Max): 115 °F
• Cooling Operation Range - (Std. Min): 23 °F
• Heating Operation Range - (Std.Max): 60 °F
• Heating Operation Range - (Std.Min): 0 °F
• Rated Cooling Condition - (Ambient DB): 95 °F
• Rated Cooling Condition - (Ambient WB): 75 °F
• Rated Cooling Condition - (Room DB): 80 °F
• Rated Cooling Condition - (Room WB): 67 °F
• Rated Heating Condition - (Ambient DB): 47 °F
• Rated Heating Condition - (Ambient WB): 43 °F
• Rated Heating Condition - (Room DB): 70 °F
• Rated Heating Condition - (Room WB): 60 °F
• Fuse Size: 35 A
• Inter Connecting Wires: L1, L2, Ground
• Max Overcurrent Protection: 20 A
• Heat Exchanger Type: Air Cooled
• Sound Pressure (High) - Cooling: 49 dBA
• Cooling Input Power: 1.61 kW
• Heating Input Power: 1.96 kW
• Additional Refrigerant Charge - (oz/ft): 0.036
• Condensate Drain Outlet: 1 in
• Factory Std. Refrigerant Charge: 5.1 oz
• Pipe Size Gas: 5/8 in
• Pipe Size Liquid: 3/8 in
• Rated Piping Length: 25 ft
• Refrigerant Pre-Charged Line Length: 0 ft
• Standard Line Set Length - (Max): 164 ft
• Standard Line Set Length - (Vertical): 98 ft
• Proposition 65 Label: Yes
• EER Rating: 12.7 EER
• Flow Rate: 1835 cfm
• HSPF Rating: 8.7
• Maximum Piping Length: 164
• Mounting Type: Outdoor
• Power Source: 208 to 230 V 60 Hz 1 ph
• SEER Rating: 18.6 SEER
• Type: Ductless Single-Zone
• Depth (In.): 12 5/8
• Length (In.): 35 7/16
• Height (In.): 30 5/16
• Use with: FAQ18PVJU, FCQ18PVJU, FHQ18PVJU
• Prop65: No
• Cooling Capacity (BTU): 18000
• Decibel Rating: 49 dBA
• Built-In WiFi: No
• Heating Capacity (BTU): 20000
• Series: SkyAir
• Width: 35.4375"
• Height: 30.3125"
• Depth: 12.625"
• Frequency: 60 Hz.
• Volts: 230/208 Volts
• Amps: 20 Amps
• Phase: 1
• Heat: Heat Pump
• Maximum Air Flow: 1835 CFM
• Number of Zones: 1
• Provides Heating: Yes
