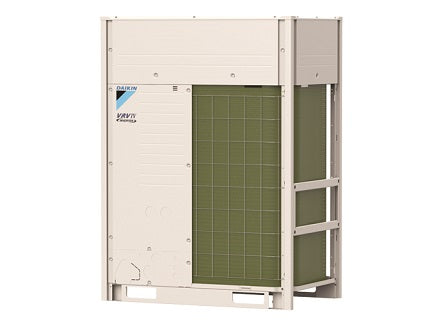

Daikin RXYQ120TYDN VRV IV Heat Pump 10 Ton

Product Description

The Daikin RXYQ120TYDN is a VRV IV outdoor heat pump, designed for commercial applications. This unit has a cooling capacity of one hundred twenty thousand BTUs per hour and a heating capacity of one hundred thirty-five thousand BTUs per hour.

• Energy-efficient operation with an improved seasonal cooling efficiency.
• Inverter control technology enhances reliability and reduces temperature influence.
• Larger capacity design allows for flexible installation options.

Product Highlights

This heat pump includes a digital display for streamlined setup and diagnostics. Its unique heat exchanger coil design wraps around the unit to optimize efficiency.

Product Information

Standard Information

• Cooling Capacity: 120000 BTU/h
• Heating Capacity: 135000 BTU/h
• Power Supply: 460 V
• Weight: 556 lb
• Dimensions: 30.2 inches depth, 66.7 inches height, 48.9 inches width

Technical Specifications

• IEER: 23.5
• EER (Ducted): 12.1
• EER (Non-Ducted): 13.2
• Max Water Temp: 122 °F (Cooling), 60 °F (Heating)
• Capacity Control Range: 15 to 100%
• Refrigerant Type: R-410A
• Min Circuit Amps: 20.6 A
• Max Overcurrent Protection: 25 A
