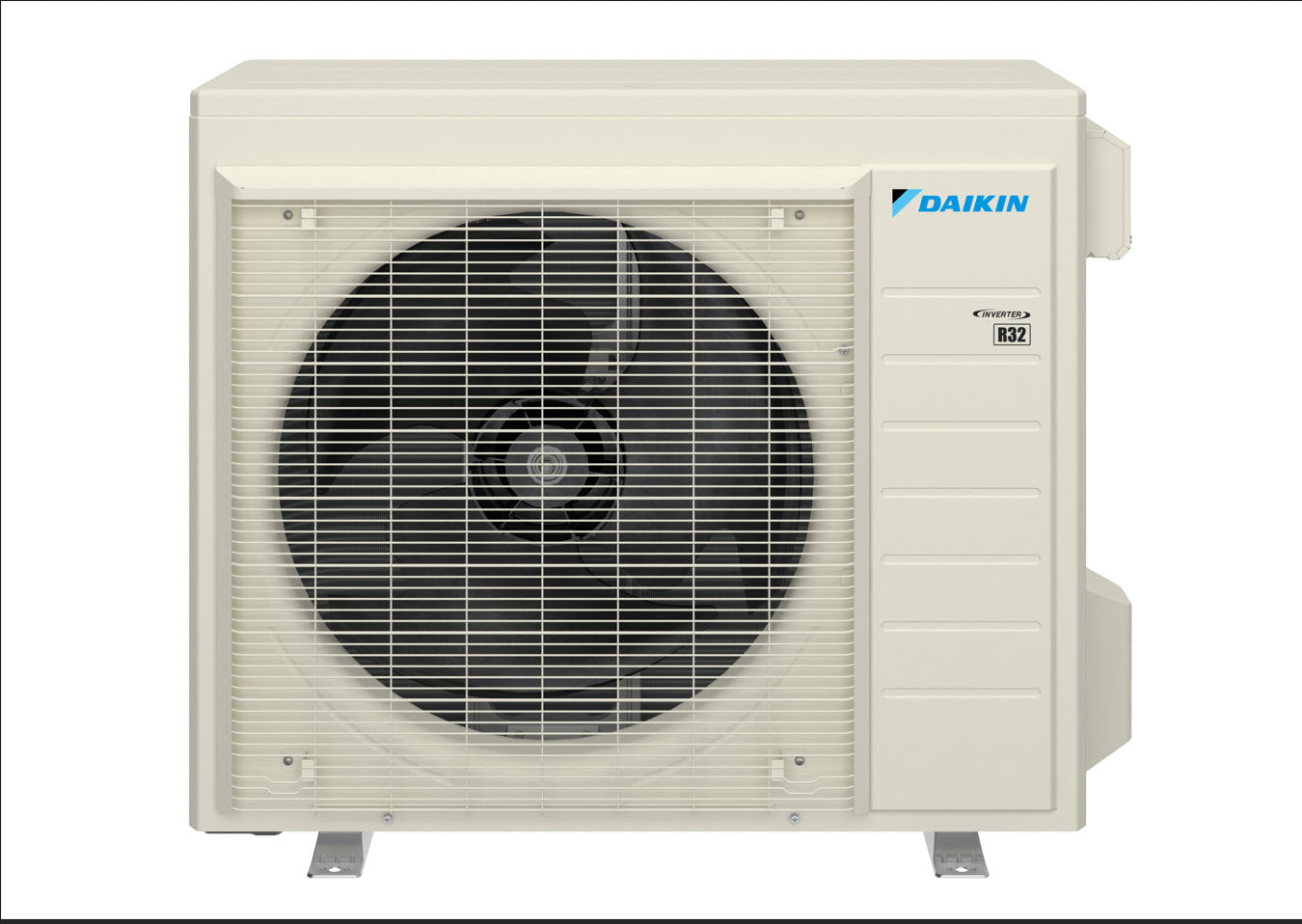

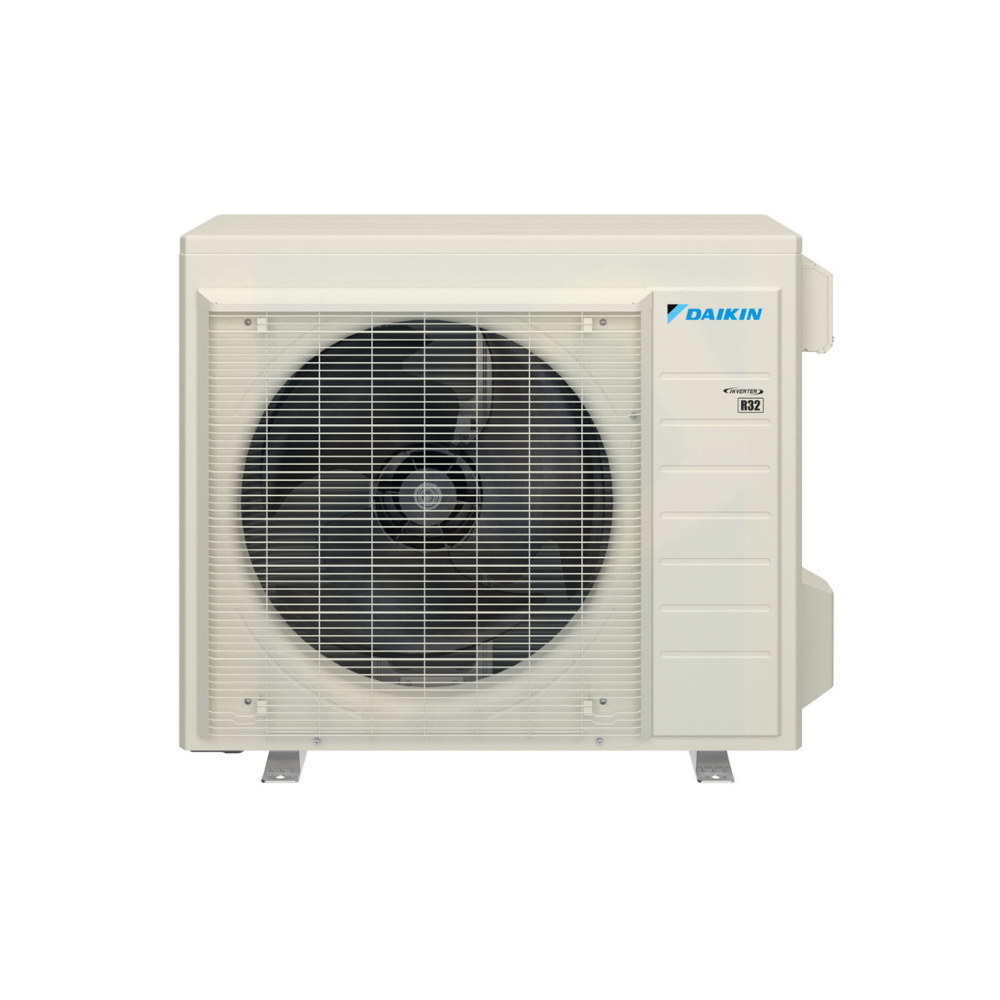

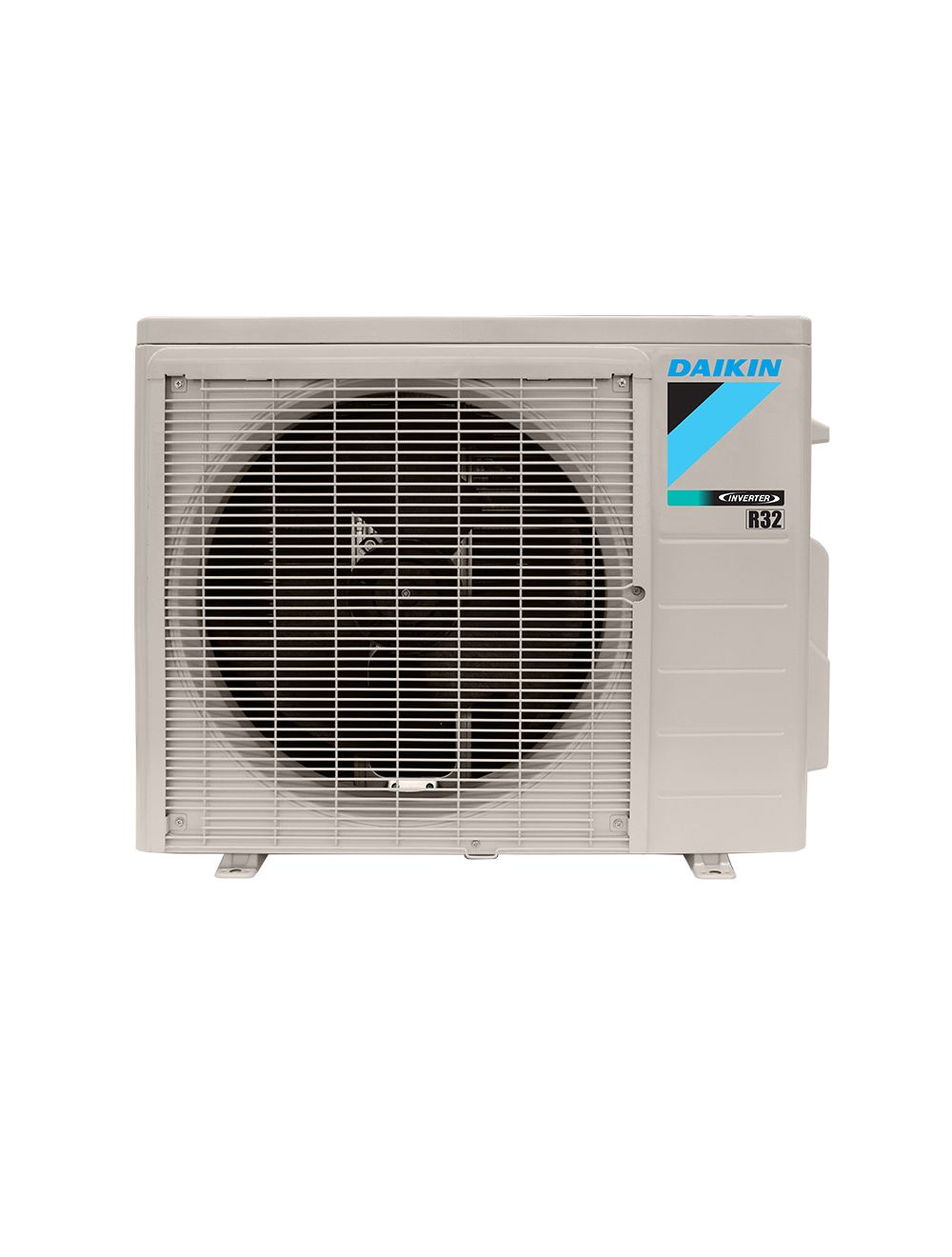

Daikin RXQ12ASBU9 Oterra 115V Heat Pump Ductless ODU 1 Ton

Product Description

The Daikin RXQ12ASBU9 Oterra 115V Heat Pump Ductless ODU is an outdoor mini-split heat pump designed for single-zone residential use. It features a swing compressor and inverter system for efficient operation with R-32 refrigerant. The unit operates within a cooling range of 50 to 114.8°F and a heating range of 5 to 65°F.

• Operates quietly for minimal disturbance.
• Features automatic defrosting and anti-corrosion treatment.
• Offers efficient heating and cooling with a swing compressor and inverter system.

Product Highlights

This Daikin Oterra series outdoor unit provides efficient and reliable heating and cooling for residential spaces, utilizing eco-friendly R-32 refrigerant and inverter technology.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: RXQ12ASBU9
• Country of Origin: Mexico

Technical Specifications

• Model Number: RXQ12ASBU9
• Brand: Daikin
• Product Category: Ductless Mini-Splits
• Product Class - (PIM): Mini-Split Heat Pump
• System Family: Mini-Split
• Function Category: Heat Pump
• Product Type: Equipment
• Unit Type: Outdoor Unit
• Market Type: Residential-Single Family
• Product Family: RXQ_ASBU9
• Series Name: Daikin Oterra 115V
• Model Efficiency: 20 SEER
• Compressor Stages: Inverter
• Compressor Type: Swing
• Refrigerant Type: R-32
• Power Voltage: 115 V
• Power Frequency: 60 Hz
• Power Phase: 1 Ph
• Cooling Operation Range - (Std. Max): 114.8 °F
• Cooling Operation Range - (Std. Min): 50 °F
• Heating Operation Range - (Std.Max): 65 °F
• Heating Operation Range - (Std.Min): 5 °F
• Rated Cooling Condition - (Ambient DB): 95 °F
• Rated Cooling Condition - (Ambient WB): 75 °F
• Rated Cooling Condition - (Room DB): 80 °F
• Rated Cooling Condition - (Room WB): 67 °F
• Rated Heating Condition - (Ambient DB): 47 °F
• Rated Heating Condition - (Ambient WB): 43 °F
• Rated Heating Condition - (Room DB): 70 °F
• Rated Heating Condition - (Room WB): 60 °F
• Fuse Size: 15 A
• Min. Circuit Amps: 15 A
• Max Overcurrent Protection: 15 A
• Air Flow Rate (High) - Cooling: 1144 ft³/min
• Air Flow Rate (High) - Heating: 1144 ft³/min
• Dimensions - (Unit Depth): 11-3/16 in
• Dimensions - (Unit Height): 21-15/16 in
• Dimensions - (Unit Width): 26-9/16 in
• Weight - (Unit): 64 lb
• Cooling Capacity - (Max): 12800 Btu/H
• Cooling Capacity - (Min): 3600 Btu/H
• Cooling Capacity - (Rated): 12000 Btu/H
• Heating Capacity - (Max): 14600 Btu/H
• Heating Capacity - (Min): 3800 Btu/H
• Heating Capacity - (Rated): 13500 Btu/H
• Tonnage: 1.0
• Additional Refrigerant Charge - (oz/ft): 0.22
• Condensate Drain Outlet: 5/8 in
• Factory Std. Refrigerant Charge: 1.65 oz
• Pipe Size Gas: 3/8 in
• Pipe Size Liquid: 1/4 in
• Rated Height Difference: 50 ft
• Rated Piping Length: 50 ft
• Refrigerant Pre-Charged Line Length: 50 ft
• ETL Listed: Yes
• Sound Pressure (High) - Cooling: 50 dBA
• Max Indoor Units: 1.0
• Inter Connecting Wires: 4
• Expansion Device: EEV
• Current Type: AC
• Inverter system: Yes
• Heat Exchanger Type: Air Cooled
• Standard Line Set Length - (Max): 50 ft
• Standard Line Set Length - (Vertical): 50 ft
• Proposition 65 Label: Yes
• Country of Origin: Mexico
• Cooling BTUs: 12000
• Includes Heat Pump: Yes
• Heat Pump BTUs: 13500
• Outdoor Unit Noise Level (dBA): 50
• Inverter Technology: Yes
• Line Set Liquid Line: 1/4"
• Line Set Suction Line: 3/8"
• Maximum Pipe Length (ft.): 66
• Max. Height Difference (Indoor / Outdoor) (ft.): 50
• Ambient Temperature Range - Cooling: 50°F - 115°F
• Ambient Temperature Range - Heating: 5°F - 65°F
• Min. Outdoor Temp for Heat °F: 5
• Width (in.): 26.563
• Depth (in.): 11.188
• Height (in.): 21.938
• Voltage: 110-120V
• Amps: 15
• Circuit Breaker Size (Amps): 15
• Product Line: Oterra Series
• Operating Mode: Cooling & Heating
• Cooling Input Power: 1.16 kW
• Heating Input Power: 1.3 kW
• Nominal Capacity: 1 ton
• SEER2 Rating: 20
• Sound Level: 50 dBA
• Voltage Rating: 115 V
• Frequency Rating: 60 Hz
• Phase: 1 ph
• Air Flow: 1144 cfm
• Gas Line Size: 3/8 in
• Liquid Line Size: 1/4 in
• Manufacturer: Daikin
• Manufacturer #: RXQ12ASBU9
• Series: FTXQ-B
• Sub-Brand: OTERRA
• Type: Outdoor
