Product Description

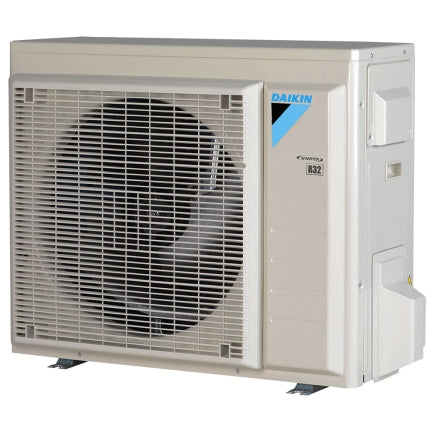

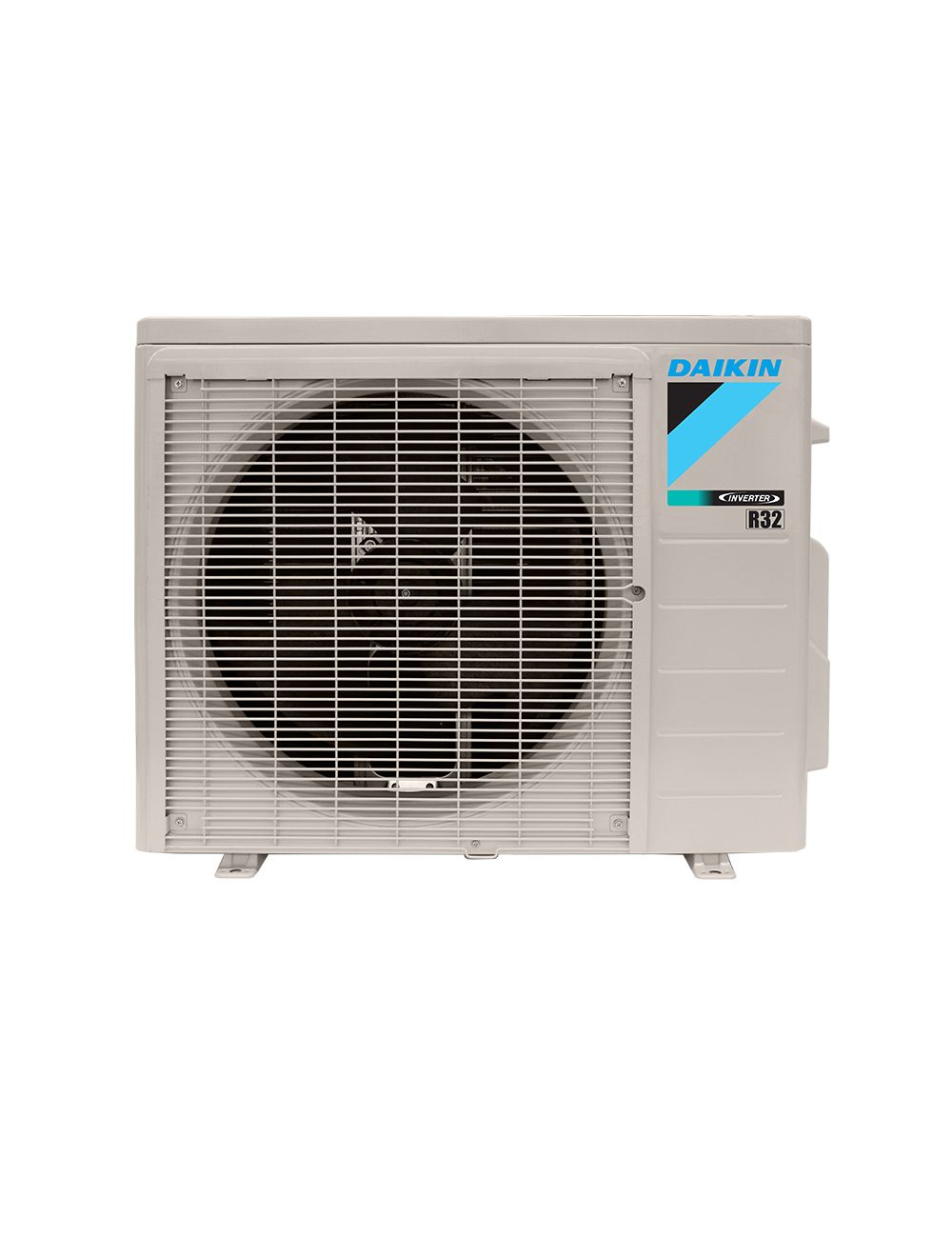

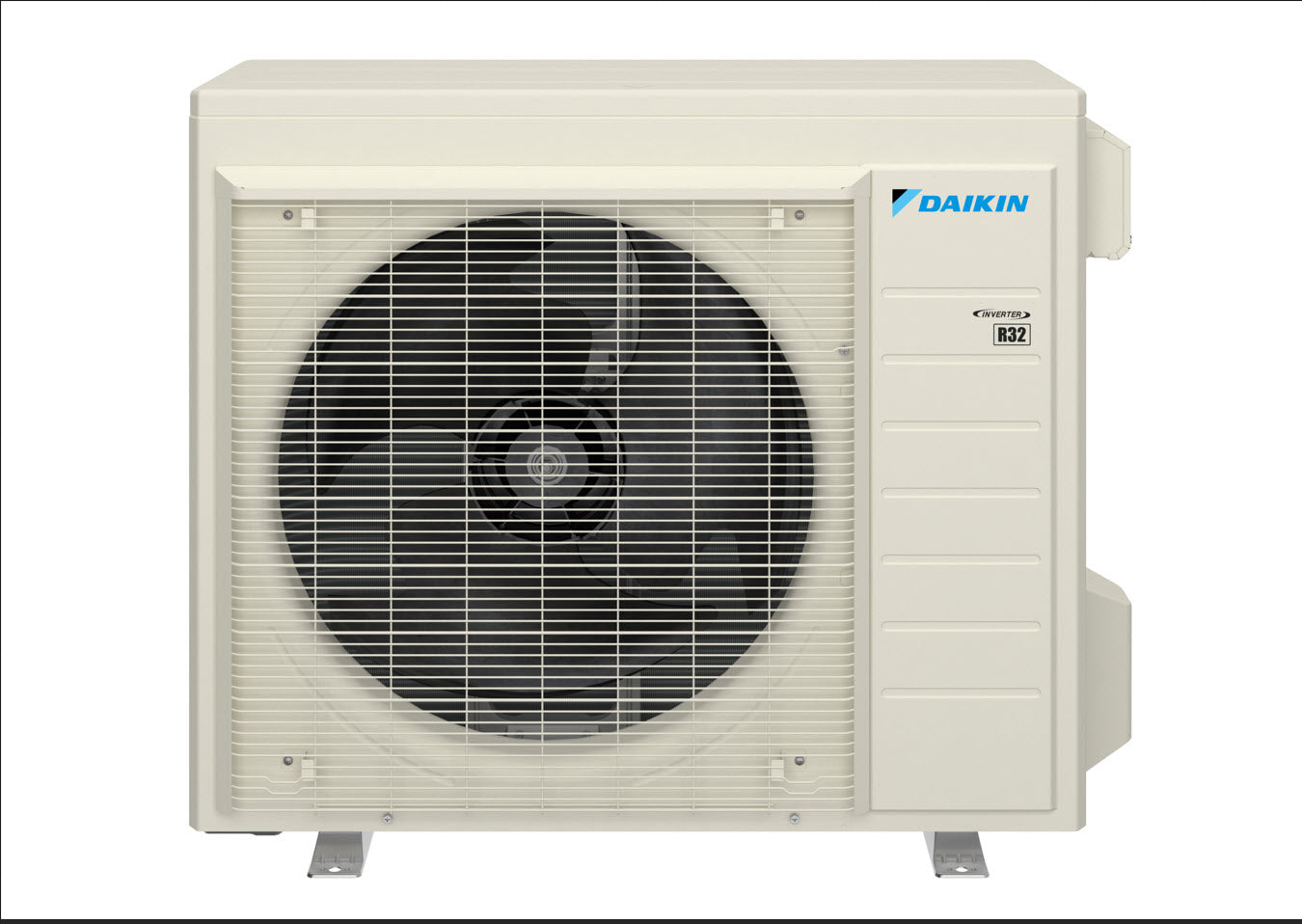

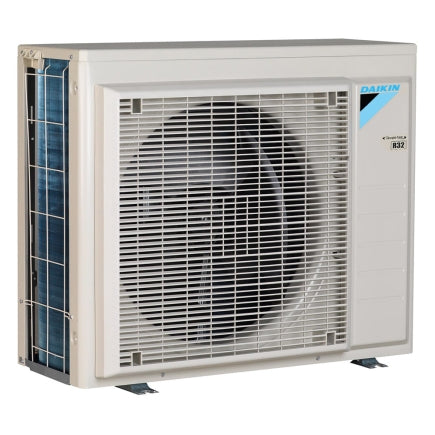

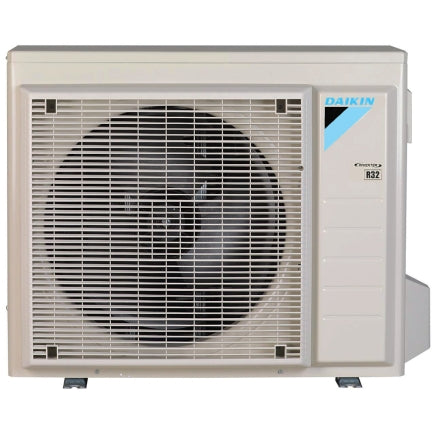

The Daikin RXQ09ASBU9 Oterra 115V Heat Pump Ductless ODU is a 0.75 ton outdoor mini-split heat pump designed for single-zone residential use. It features a swing compressor and inverter system for efficient operation with R-32 refrigerant. The unit operates within a cooling range of 50 to 114.8°F and a heating range of 5 to 65°F.
- Quiet outdoor unit operation.
- Features a long compressor life.
- Saves on energy costs with efficient operation.
Product Highlights
This Daikin Oterra heat pump offers efficient and quiet heating and cooling for residential spaces, utilizing a swing compressor and inverter technology.
Product Information
Standard Information
-
Brand: DAIKIN
-
Manufacturer Part Number: RXQ09ASBU9
-
Country of Origin: Mexico
Technical Specifications
-
Brand: Daikin
-
Model Number: RXQ09ASBU9
-
Product Category: Ductless Mini-Splits
-
Product Class - (PIM): Mini-Split Heat Pump
-
System Family: Mini-Split
-
Function Category: Heat Pump
-
Product Type: Equipment
-
Unit Type: Outdoor
-
Market Type: Residential-Single Family
-
Product Family: RXQ_ASBU9
-
Series Name: Daikin Oterra 115V
-
Model Efficiency: 20 SEER
-
Family Description: 0.75-1 Ton Daikin Oterra 115V Heat Pump
-
Compressor Stages: Inverter
-
Compressor Type: Swing
-
Refrigerant Type: R-32
-
Power Voltage: 115 V
-
Power Frequency: 60 Hz
-
Power Phase: 1 Ph
-
Cooling Operation Range - (Std. Max): 114.8 °F
-
Cooling Operation Range - (Std. Min): 50 °F
-
Heating Operation Range - (Std.Max): 65 °F
-
Heating Operation Range - (Std.Min): 5 °F
-
Rated Cooling Condition - (Ambient DB): 95 °F
-
Rated Cooling Condition - (Ambient WB): 75 °F
-
Rated Cooling Condition - (Room DB): 80 °F
-
Rated Cooling Condition - (Room WB): 67 °F
-
Rated Heating Condition - (Ambient DB): 47 °F
-
Rated Heating Condition - (Ambient WB): 43 °F
-
Rated Heating Condition - (Room DB): 70 °F
-
Rated Heating Condition - (Room WB): 60 °F
-
Cooling Capacity - (Max): 10500 Btu/H
-
Cooling Capacity - (Min): 2800 Btu/H
-
Cooling Capacity: 9000 Btu/H
-
Heating Capacity - (Max): 12000 Btu/H
-
Heating Capacity - (Min): 3800 Btu/H
-
Heating Capacity: 10900 Btu/H
-
Tonnage: 0.75
-
Current Type: AC
-
Fuse Size: 15 A
-
Min. Circuit Amps: 14.9 A
-
Max Overcurrent Protection: 15 A
-
Air Flow Rate (High) - Cooling: 1233 ft³/min
-
Air Flow Rate (High) - Heating: 1151 ft³/min
-
Expansion Device: EEV
-
Heat Exchanger Type: Air Cooled
-
Sound Pressure (High) - Cooling: 48 dBA
-
Sound Pressure (High) - Heating: 49 dBA
-
Additional Refrigerant Charge - (oz/ft): 0.22
-
Condensate Drain Outlet: 5/8 in
-
Factory Std. Refrigerant Charge: 1.15 oz
-
Pipe Size Gas: 3/8 in
-
Pipe Size Liquid: 1/4 in
-
Rated Height Difference: 50 ft
-
Rated Piping Length: 50 ft
-
Refrigerant Pre-Charged Line Length: 50 ft
-
Standard Line Set Length - (Max): 66 ft
-
Standard Line Set Length - (Vertical): 50 ft
-
ETL Listed: Yes
-
Proposition 65 Label: Yes
-
Voltage: 120
-
Amps: 14.9
-
Circuit Breaker Size (Amps): 15
-
Outdoor Unit Noise Level (dBA): 48
-
Inverter Technology: Yes
-
Line Set Liquid Line: 1/4"
-
Line Set Suction Line: 3/8"
-
Maximum Pipe Length (ft.): 66
-
Max. Height Difference (Indoor / Outdoor) (ft.): 50
-
Ambient Temperature Range - Cooling: 50°F - 115°F
-
Ambient Temperature Range - Heating: 5°F - 65°F
-
Min. Outdoor Temp for Heat °F: 5
-
EER Rating: 12
-
HSPF Rating: 9
-
Mounting Type: Outdoor
-
Nominal Capacity: 0.75T
-
Power Source: 60 Hz, 1 Ph, 115 V
-
SEER Rating: 20
-
Series: Oterra
-
Suction Line Size: 3/8 in
-
Type: Heat Pump
-
AHRI Number: 216504980
-
Avg Coverage Area: Less than 500 Sq Ft
-
Electrical Phase: 1-Phase
-
Heat Pump Efficiency (HSPF): 9
-
Line Set Connection Type: Flared
-
Liquid Line Size: 1/4 inch
-
Primary Heating Capacity: 10,001 - 15,000 BTU
-
Refrigerant: R-32
-
Cooling Efficiency (SEER2): 20
-
System Application Type: Ductless Split Systems
-
Warranty: 12 Year Parts
-
Region Compatibility: Nationwide
-
Discharge Line Size: 1/4 in
-
Max Indoor Units: 1.0
-
Inter Connecting Wires: 4
