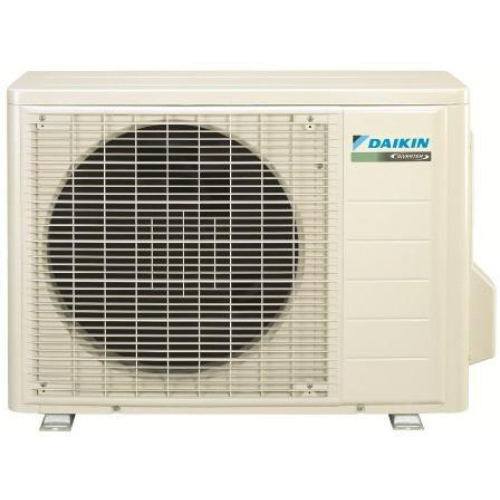

Daikin RXL09QMVJUA AURORA Outdoor Mini-Split Heat Pump | 18 SEER & HSPF | Single Zone |

Efficiency:
Cooling:
Seer 20.0
EER 12.5
Heating
Cop 4.20
HSPF 12.5

Cooling (Btu/hr)
Rated (Min/Max) 9,000 (4,400 / 10,900)
Sensible @ AHRI 8,170
Moisture Removal gal/h .32
Standard Operating Range 50F 115F
Extended Operating Range* -4F 115F

Heating (Btu/hr)
1:@ 47 Rated (Min/Max) 10,900 (4,400 / 16,000)
2: @ 17 Rated 6,700
3: @ 5 Max: Capacity / COP 10,900 / 1.98
Operating Range -13F 60F

1: Rated Heating Conditions: Indoor: 70F DB/60F WB
Outdoor: 47F DB/43F WB
2: Rated Heating Conditions: Indoor: 70F DB/60F WB
Outdoor: 17F DB/15F WB
3: Heating Conditions; Compressor
Operating at Max Frequency:
Indoor: 70F DB/60F WB
Outdoor: 5F DB/5F WB

Piping
Liquid (in) 1/4
Gas (in) 3/8
Drain (in) 5/8
Max. Interunit Piping Length (ft) 65.625
Max. Interunit Height Difference (ft) 49.25
Chargeless (ft) 32.8
Additional Charge of Refrigerant (oz/ft) .21

Refrigerant R-410A
