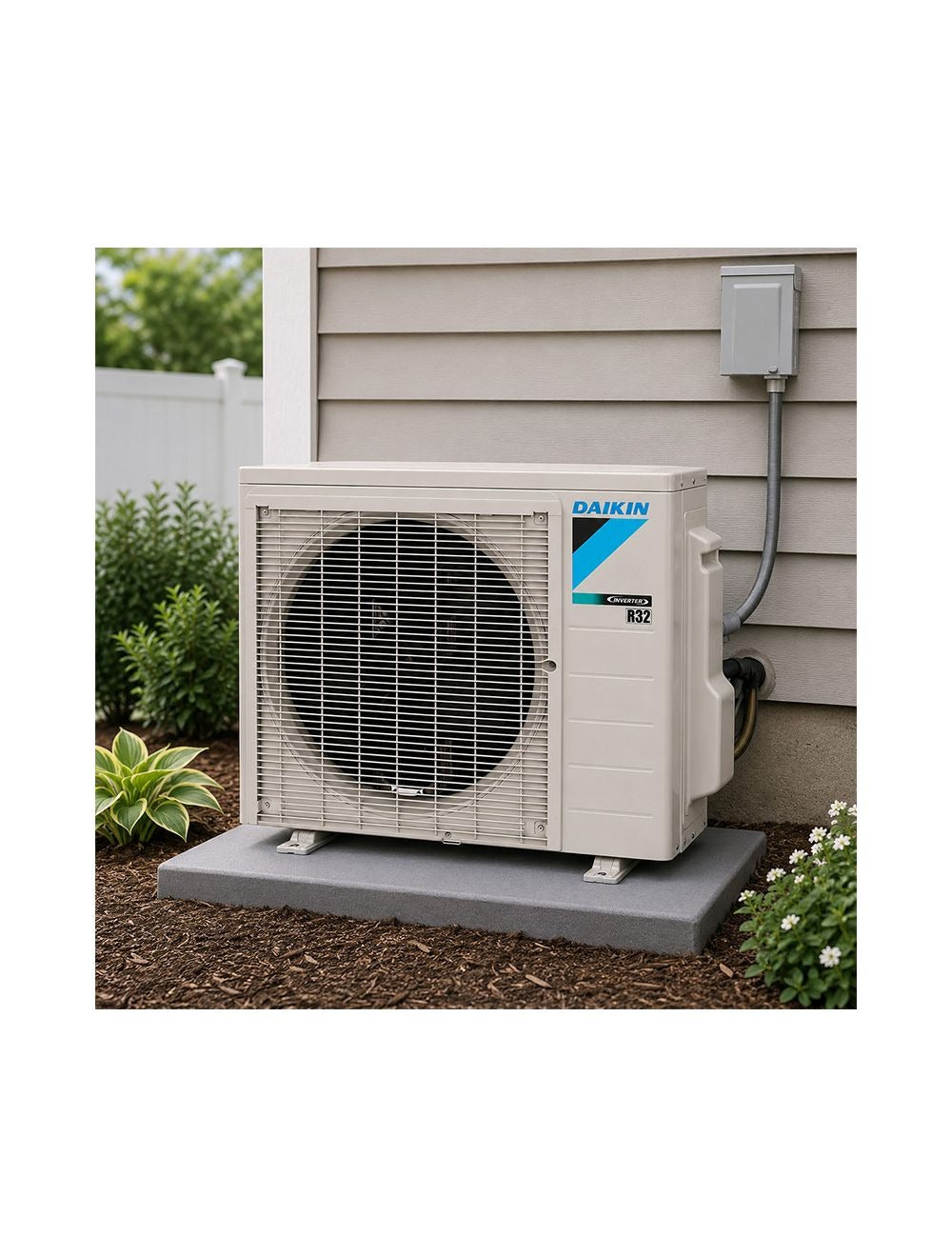

Daikin RXC18BVJU9 Mini-split Heat Pump Outdoor Unit 18000 Btu

Product Description

The DAIKIN RXC18BVJU9 is an 18,000 BTU/h mini-split heat pump outdoor unit from the Daikin Entra series, operating on R32 refrigerant. It functions as the condensing section of a ductless split system, pairing with a compatible indoor air handler to deliver both heating and cooling. R32 has a lower global warming potential than R410A, making it the current direction for residential and light-commercial ductless equipment. Licensed HVAC technicians handle installation and refrigerant handling for this class of equipment.

The RXC18BVJU9 is suited for residential and light-commercial ductless applications where a single-zone heating and cooling solution is required. Typical installs include additions, conditioned spaces without existing ductwork, server rooms, garage conversions, and supplemental zoning in larger structures. The unit is part of the Daikin Entra product line and is designed to be matched with a corresponding Entra series indoor unit.

Key Features

• 18,000 BTU/h capacity for single-zone heating and cooling
• R32 refrigerant with lower global warming potential compared to R410A
• Outdoor condensing unit designed for ductless mini-split system configurations
• Part of the Daikin Entra series for residential and light-commercial use
• Heat pump operation provides both heating and cooling from a single outdoor unit

Compatibility

Designed as an OEM-matched outdoor condensing unit for Daikin Entra series ductless mini-split systems. Pair only with compatible Daikin Entra indoor air handlers rated for R32 refrigerant and appropriate for an 18,000 BTU/h single-zone system.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician, as R32 is a mildly flammable refrigerant requiring adherence to applicable safety codes and manufacturer guidelines. Power down the system and follow all local electrical codes before making line-set or electrical connections. The outdoor unit requires a dedicated circuit sized to the equipment nameplate; verify voltage and amperage requirements on the unit label before wiring. Follow all refrigerant handling procedures specific to A2L refrigerants when evacuating, charging, or recovering R32.
