Daikin RXC12AXVJU / FTXC12AXVJU FTXC12AXVJU Indoor Split Unit Air Conditioner/Heat Pump 12,000 BTU/hr Single Zone

Product Description

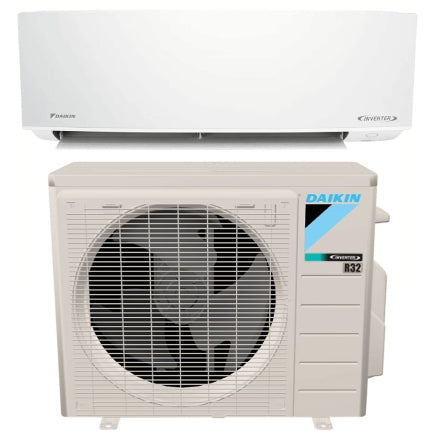

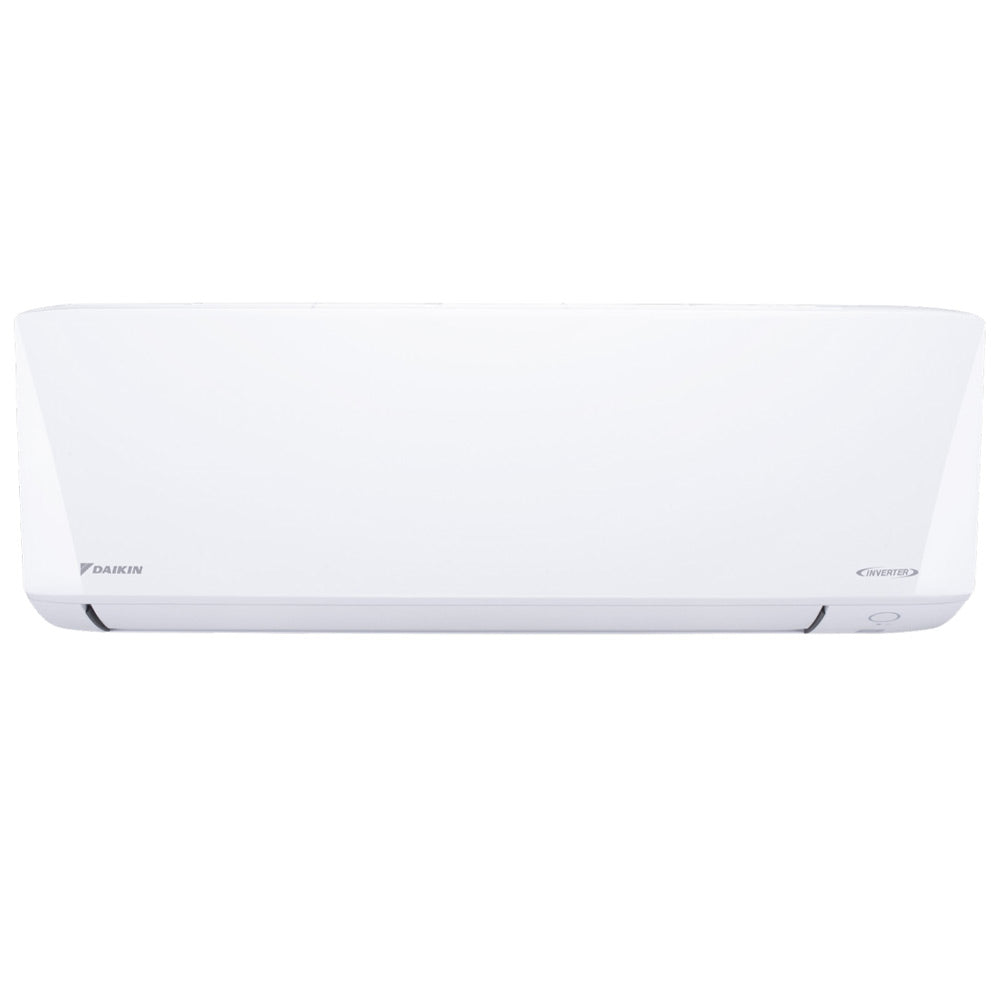

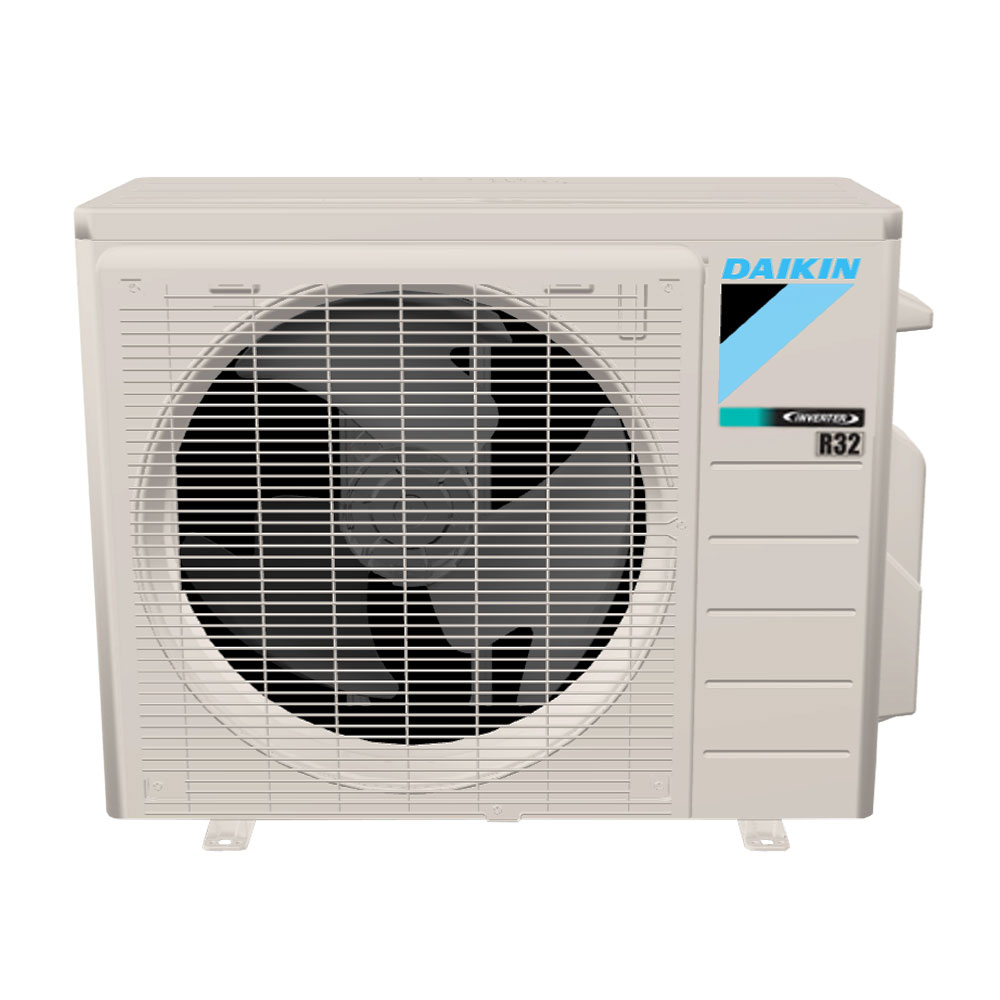

The Daikin FTXC12AXVJU / FTXC12AXVJU ENTRA single zone inverter wall-mounted systems provide energy efficiency and comfort control. This heat pump system features a streamlined, wall-mounted indoor unit paired with a compact outdoor unit. It delivers 12,000 BTU/hr cooling and 11,300 BTU/hr heating with R32 refrigerant and 473 CFM flow.

• ECO+ ensures optimum energy consumption while fulfilling basic human comfort needs.
• Titanium Apatite Photocatalytic Air Purifying Filter combines air-purifying and deodorizing functions.
• Blue Fin Protection enhances cleanliness and lifespan of the cooling coil.

Product Highlights

This Daikin Entra system offers efficient climate control with smart inverter technology and eco-friendly features for energy savings and consistent performance.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: RXC12AXVJU / FTXC12AXVJU

Technical Specifications

• Cooling Capacity: 12,000 Btu/hr
• EER Rating: 8.5 EER2
• Heating Capacity: 11,300 Btu/hr
• Power Source: 1 Phase, 208 / 230 V, 60 Hz
• Refrigerant Type: R-32
• SEER2 Rating: 18
• Sound Level: 19 to 45 dBA
• ADA Compliance: Yes
• Fan Drive: Direct
• Fan Type: Crossflow
• Flow Rate: 473 cfm
• Gas Line: 3/8 in
• HSPF2 Rating: 9.0
• Liquid Line: 1/4 in
• Manufacturer: Daikin
• Manufacturer #: FTXC12AXVJU
• Maximum Interunit Height Difference: 32-13/16 ft
• Maximum Interunit Piping Length: 65-5/8 ft
• Mounting Type: Wall
• Series: Entra
• Sub-Brand: Entra
• Type: Single Zone
• Model: RXC12AXVJU,FTXC12AXVJU
• Configuration: Wall Mounted
• Bundle Avg Coverage Area: 500 - 600 Sq Ft
• Bundle Cooling Capacity: 1 Ton
• Bundle Cooling Efficiency (SEER2): 18
• Heat Pump Efficiency (HSPF2): 9
• Zones: 1
• Popular Applications: Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
• Region Compatibility: Nationwide
• AHRI Number: 213895723
• Compressor: Inverter
• Electrical Phase: 1-Phase
• Line Set Connection Type: Flared
• Liquid Line Size: 1/4 inch
• Max Overcurrent Protection: 15 amps
• Primary Heating Capacity: 10,001 - 15,000 BTU
• Refrigerant: R-32
• Cooling Efficiency (SEER2): 18
• Suction Line Size: 3/8 inch
• System Application Type: Ductless Split Systems
• Voltage: 240
• Air Flow Direction: Horizontal
• Blower Motor: Variable Speed
