Product Description

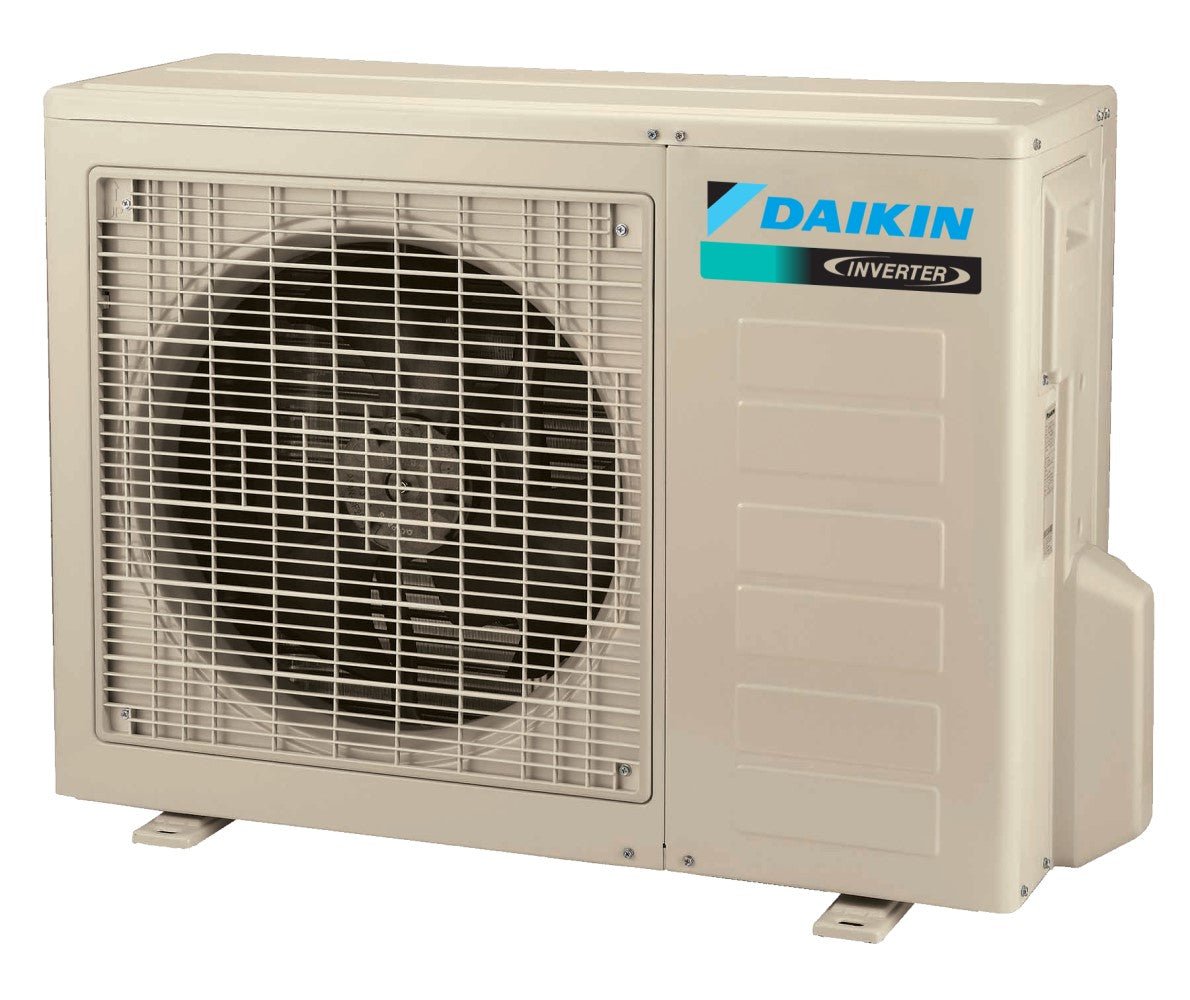

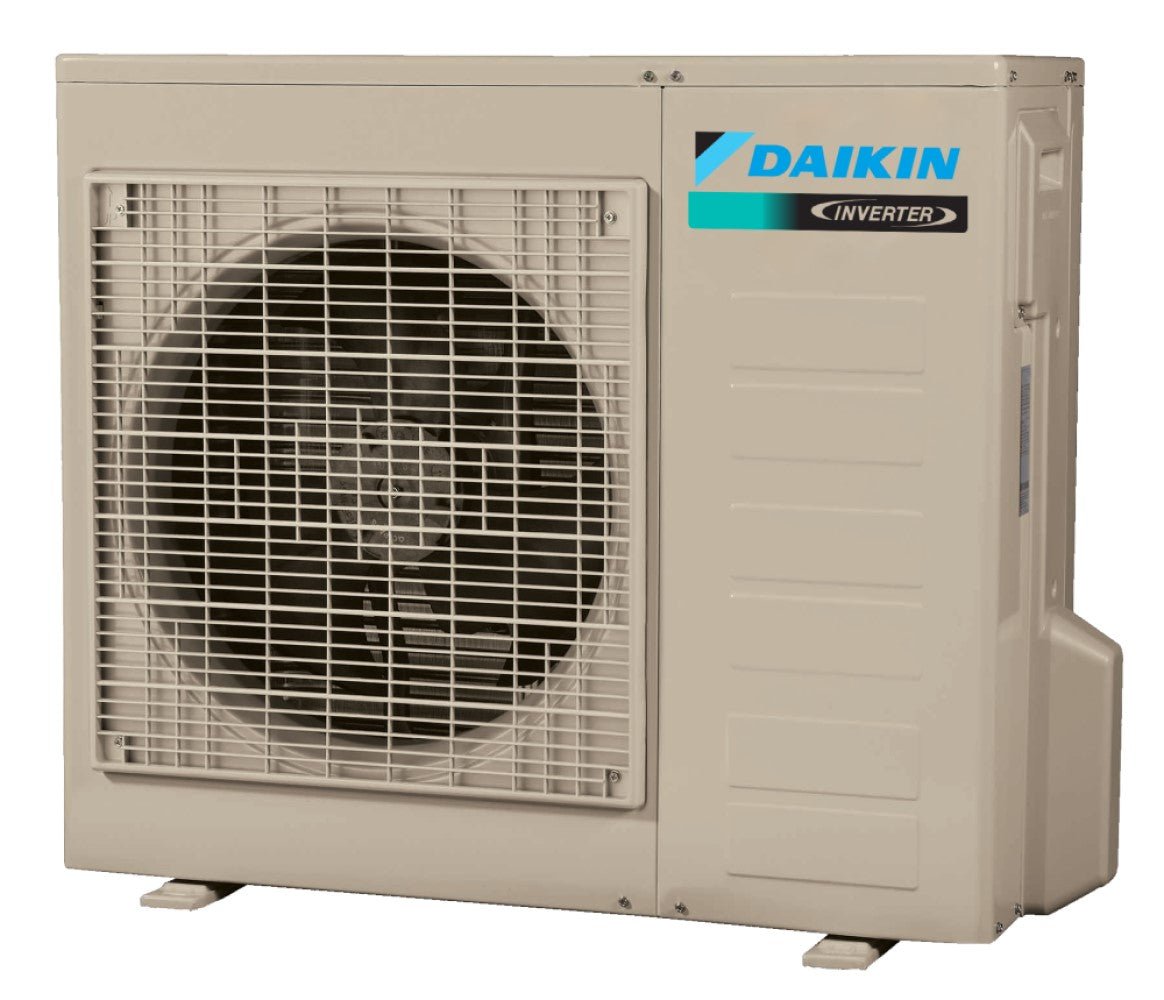

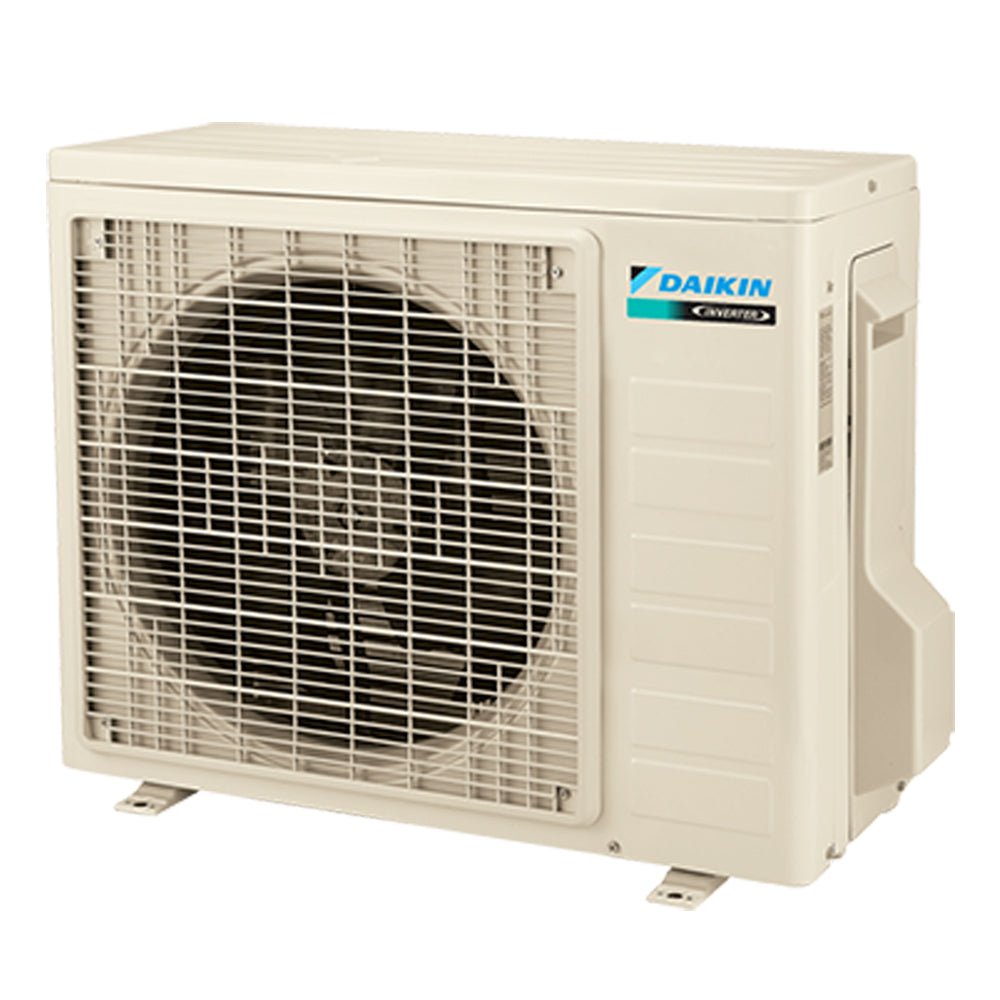

The Daikin RX30NMVJUA NV Outdoor Mini-Split Heat Pump is a single-zone, 2.5-ton heat pump with an inverter compressor. Designed for both residential and commercial applications, this outdoor unit provides efficient heating and cooling. It operates quietly and features auto restart after power failure and anti-corrosion treatment.
- Features an inverter compressor for efficient operation.
- Offers auto restart after power failure.
- Equipped with anti-corrosion treatment for durability.
Product Highlights
Efficient and durable, this Daikin mini-split heat pump provides reliable climate control for any space.
Product Information
Standard Information
-
Brand: DAIKIN
-
Manufacturer Part Number: RX30NMVJUA
-
Country of Origin: Thailand
Technical Specifications
-
Class: Mini-Split Heat Pump
-
Family: RX_NMVJU
-
Tonnage: 2.5 tons
-
Category: Mini-Split Heat Pump
-
Keywords: RX30NMVJUA
-
Unit Type: Outdoor
-
Unit Depth: 12-5/8 in
-
Unit Width: 34-1/4 in
-
Unit Height: 28-15/16 in
-
Compressor Type: Hermetically Sealed Swing
-
Compressor Stages: Inverter
-
Product ID Bar Code: RX30NMVJUA
-
Prop65 Label Required: TRUE
-
Airflow Rate High Cooling: 2528 CFM
-
Airflow Rate High Heating: 2274 CFM
-
MPN: RX30NMVJUA
-
Product Category: Ductless Mini-Splits
-
System Family: Mini-Split
-
Function Category: Heat Pump
-
Product Type: Equipment
-
Product Family: RX_NMVJU
-
Compressor RLA: 18.25 A
-
Outdoor Fan FLA: 0.62 A
-
Sound Pressure (High) - Cooling: 56 dBA
-
Sound Pressure (High) - Heating: 58 dBA
-
Additional Refrigerant Charge - (oz/ft): 0.32
-
Factory Std. Refrigerant Charge: 3.64 lb
-
Refrigerant Oil: PVE (FVC50K)
-
Refrigerant Pre-Charged Line Length: 32.8 ft
-
Proposition 65 Label: Yes
-
Cooling Capacity (Btu/hr): 31,400
-
SEER: 17.5
-
EER: 9.85
-
Heating Capacity (Btu/hr): 34,800
-
HSPF: 9.3
-
COP: 2.92
-
Voltage Rating: 208/230 Volt AC
-
Number Of Phases: 1
-
Frequency Rating: 60 Hertz
-
Liquid Pipe Connection Size: 1/4“
-
Gas Pipe Connection Size: 5/8“
-
Condensate Drain Size: 5/8“
-
Refrigerant: R-410A
-
Operating Temperature (Cooling): 50°F – 115 °F
-
Operating Temperature (Heating): 5 – 65°F
-
Series: RX Series
-
Amperage Rating: 15.6/17.3 A
-
Refrigerant Type: R-410A
-
Mounting Type: Wall
-
Phase: 1 ph
-
Liquid Line Size: 1/4 in
-
Suction Line Size: 5/8 in
-
Fuse Rating: 20 A
-
Overall Width: 34-1/4 in
-
Overall Height: 28-15/16 in
-
Cooling CFM Rating: 2528 cfm
-
Cooling Sound Level: 56 dBA
-
Model code: RX30NMVJUA
-
NV Series: NV Series
-
Power: > 20,000 BTU/H
-
Cooling Efficiency Mixed: 17.5 SEER
-
Equipment Class: DUCTLESS PAIR OUTDOOR
-
Gas Line Size: 5/8"
-
Indoor/Outdoor: Outdoor
-
Operating Mode: Heating and Cooling
