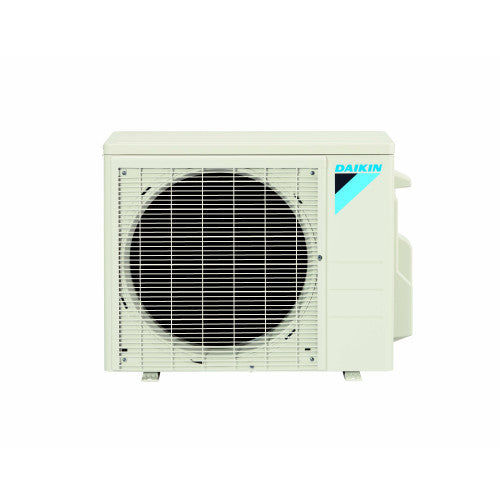

Daikin RX09RMVJU9A EMURA Outdoor Mini-Split Heat Pump | & HSPF | Single Zone | Inverter

Efficiency:
Cooling:
Seer 20.90
EER 13.0
Heating
Cop 4.58
HSPF 11.70

Cooling (Btu/hr)
Rated (Min/Max) 9,100 (4,600 / 11,100)
Sensible @ AHRI 7,990
Standard Operating Range 50F 115F
Extended Operating Range* -4F 115F

Heating (Btu/hr)
1:@ 47 Rated (Min/Max) 10,000 (4,600 / 14,000)
2: @ 17 Rated 6,000
3: @ 5 4,480
Operating Range 5F 65F
1: Rated Heating Conditions: Indoor: 70F DB/60F WB
Outdoor: 47F DB/43F WB
2: Rated Heating Conditions: Indoor: 70F DB/60F WB
Outdoor: 17F DB/15F WB
3:Heating Conditions: Indoor: 70F DB/60F WB
Outdoor: 5F DB/5F WB

Piping
Liquid (in) 1/4
Gas (in) 3/8
Drain (in) 1-1/32
Max. Interunit Piping Length (ft) 65.625
Max. Interunit Height Difference (ft) 49.25
Chargeless (ft) 32.8
Additional Charge of Refrigerant (oz/ft) .21
