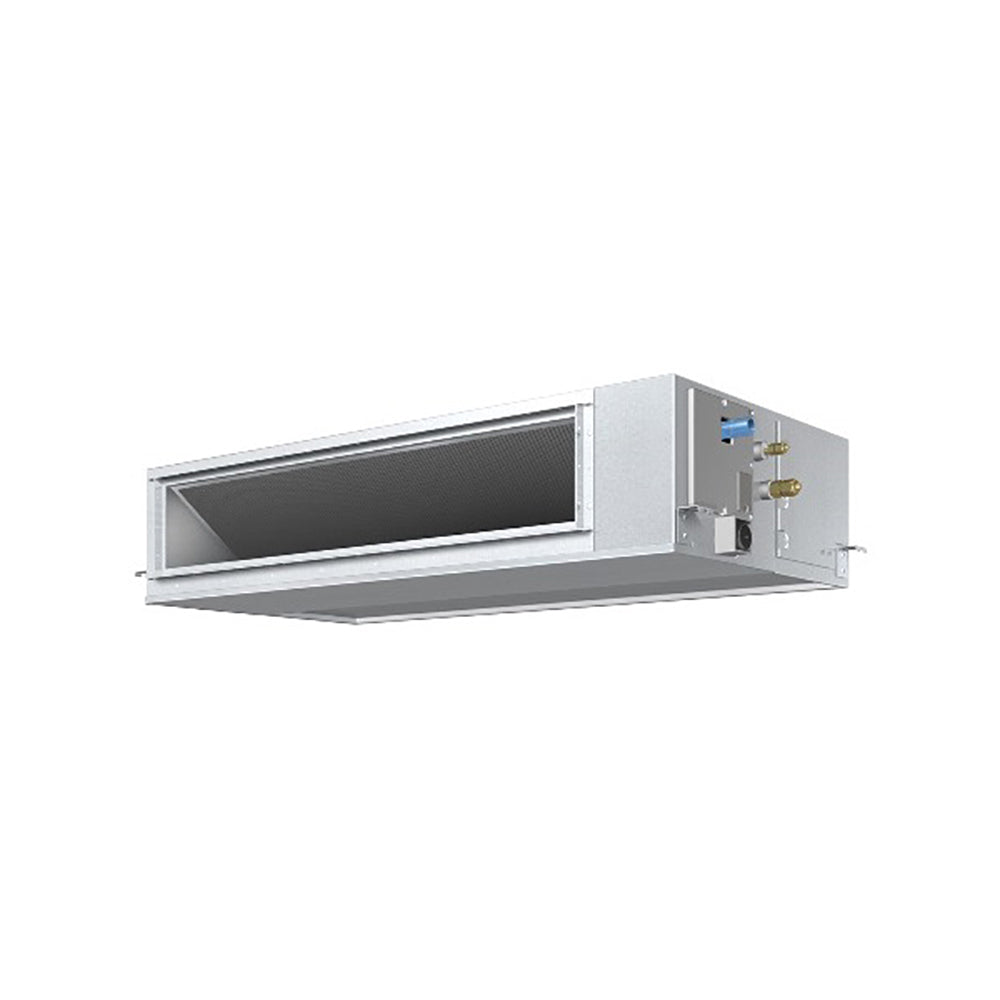

Daikin FXMQ36PBVJU Indoor Concealed Ducted VRV Fan Coil

Product Description

The Daikin FXMQ36PBVJU Indoor Concealed Ducted VRV Fan Coil provides efficient climate control for various indoor spaces. Its compact design allows it to fit seamlessly into any environment. This fan coil unit offers significant air flow and is ideal for applications in retail, classrooms, offices, or hotels.

• Enhanced air quality with optional MERV 13 filters.
• Low profile design at under 12 inches in height.
• Integrated condensate pump with up to 18-3/8 inch lift.

Product Highlights

This unit delivers flexibility and ease of installation with auto-adjusting airflow based on the space's requirements.

Product Information

Standard Information

• Brand: Daikin
• MPN: FXMQ36PBVJU

Technical Specifications

• Class: VRV Fan Coil
• Family: FXMQ_PBVJU
• Tonnage: 3 tons
• Unit Type: Indoor

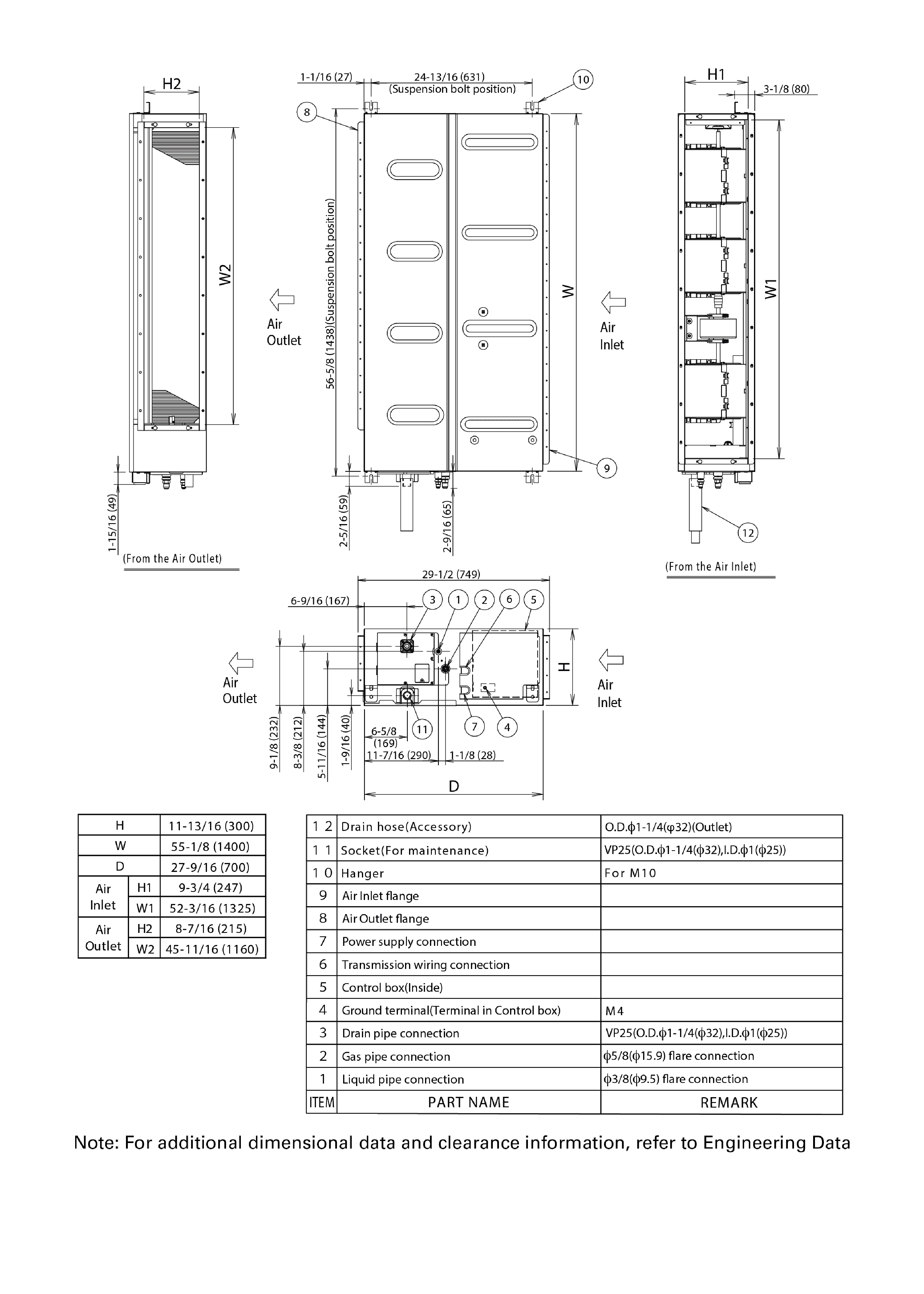

• Unit Depth: 27-9/16 inches
• Unit Width: 55-1/8 inches
• Unit Height: 11-13/16 inches
• Unit Weight: 102 pounds
• Power Phase: 1
• Refrigerant: R-410A
• Power Voltage: 208-230
• Cooling Capacity Rated: 36,000 BTU
• Heating Capacity Rated: 40,000 BTU
• Airflow Rate High Cooling: 953 CFM
