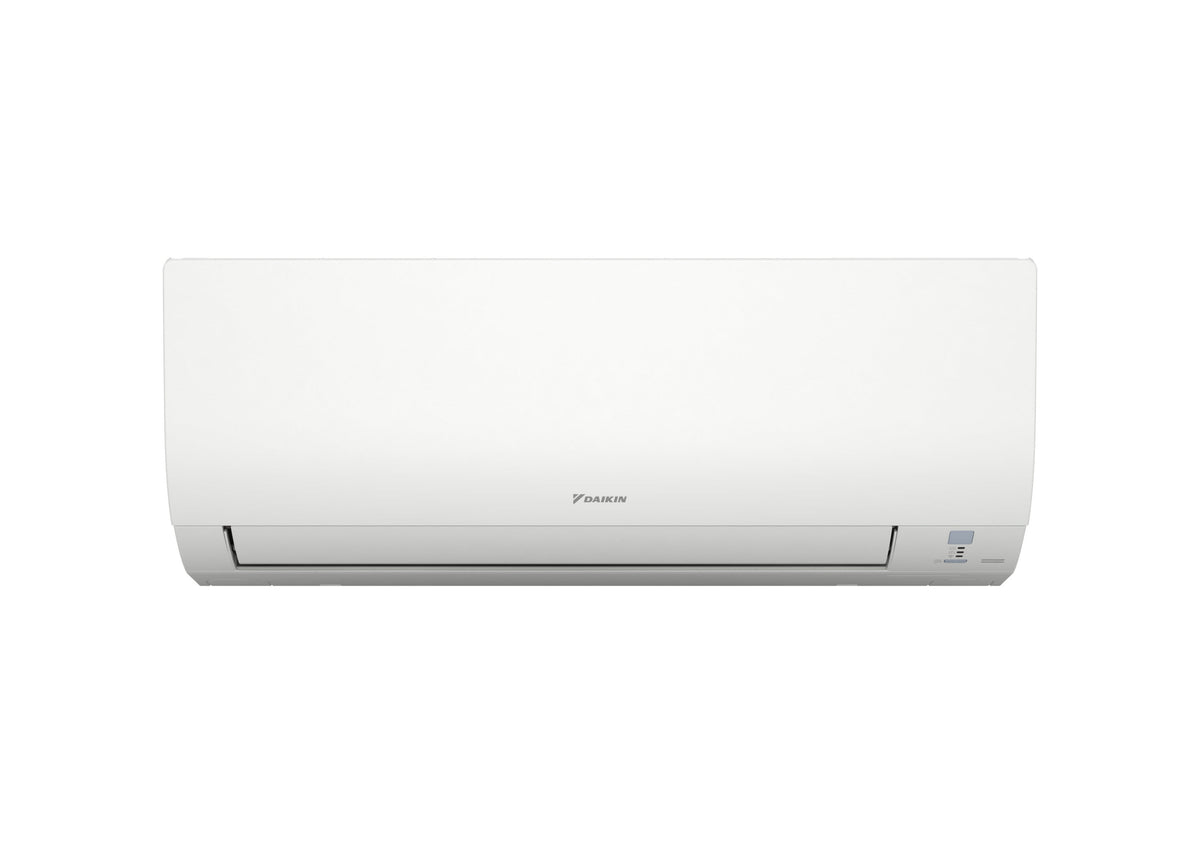

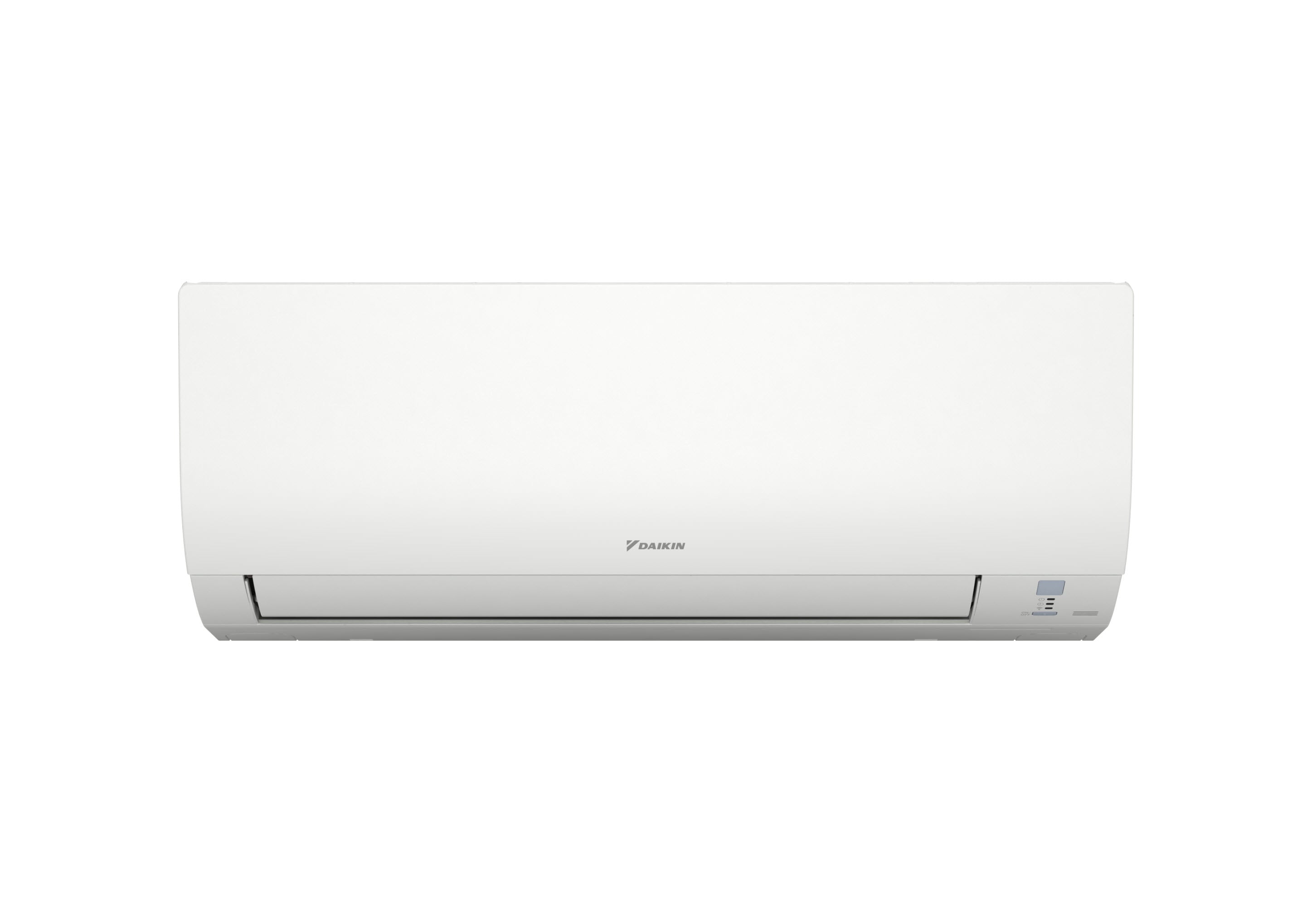

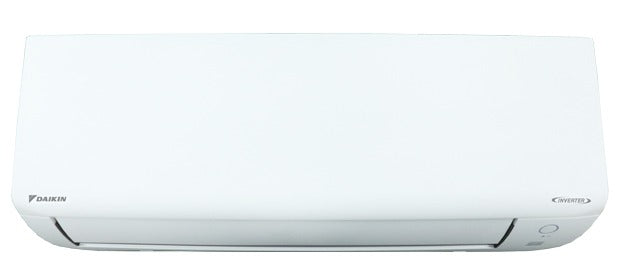

Daikin FTXQ09ASBU9 Oterra 9k Indoor High Wall Unit 115V

Product Description

The Daikin FTXQ09ASBU9 Oterra 115V R-32 9K Indoor High Wall Unit is an indoor mini-split fan coil designed for residential use. This unit features a heat pump and is designed for wall mounting. It operates on 115V AC power at 60 Hz. The unit provides comfortable airflow and reliable operation.

• Features auto swing with wide angle louvers and auto fan speed.
• Equipped with a removable drain pan for easy maintenance.
• Operates quietly with sound pressure as low as 21 dBA.

Product Highlights

This Daikin Oterra series indoor unit offers efficient heating and cooling with features like a removable drain pan and quiet operation, ideal for residential applications.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: FTXQ09ASBU9
• Country of Origin: Mexico

Technical Specifications

• Brand: Daikin
• Model Number: FTXQ09ASBU9
• Product Category: Ductless Mini-Splits
• Product Class - (PIM): Mini-Split Fan Coils
• System Family: Mini-Split
• Function Category: Heat Pump
• Product Type: Equipment
• Unit Type: Indoor
• Market Type: Residential-Single Family
• Product Family: FTXQ_ASBU9
• Series Name: Daikin Oterra 115V
• Installation Type: Wall Mounted
• Communication Feature: No
• Country of Origin: Mexico
• US HTS Code: 8415.90.8065
• Canadian HTS Code: 8415.90.90.00
• ENERGY STAR® Certified: No
• Current Type: AC
• Power Frequency: 60 Hz
• Power Phase: 1 Ph
• Power Voltage: 115 V
• Air Flow Rate (High) - Cooling: 424 ft³/min
• Air Flow Rate (High) - Heating: 413 ft³/min
• Air Flow Rate (Low) - Cooling: 261 ft³/min
• Air Flow Rate (Low) - Heating: 247 ft³/min
• Air Flow Rate (Medium) - Cooling: 307 ft³/min
• Air Flow Rate (Medium) - Heating: 328 ft³/min
• ETL Listed: Yes
• Heat Exchanger Type: Air Cooled
• Sound Pressure (High) - Cooling: 43 dBA
• Sound Pressure (High) - Heating: 41 dBA
• Sound Pressure (Low) - Cooling: 30 dBA
• Sound Pressure (Low) - Heating: 28 dBA
• Sound Pressure (Medium) - Cooling: 35 dBA
• Sound Pressure (Medium) - Heating: 36 dBA
• Sound Pressure (Super Low) - Cooling: 21 dBA
• Sound Pressure (Super Low) - Heating: 25 dBA
• Cooling Capacity - (Rated): 9000 Btu/H
• Cooling Capacity - (Sensible): 8140 Btu/H
• Cooling Input Power: 1.11 kW
• Heating Capacity - (Rated): 10900 Btu/H
• Heating Input Power: 1.18 kW
• Refrigerant Type: R-32
• Dimensions - (Unit Depth): 8-3/4 in
• Dimensions - (Unit Height): 11-1/4 in
• Dimensions - (Unit Width): 30-5/16 in
• Weight - (Unit): 18 lb
• Indoor Blower FLA: 0.36 A
• Inter Connecting Wires: 4
• Rated Cooling Condition - (Ambient DB): 95 °F
• Rated Cooling Condition - (Ambient WB): 75 °F
• Rated Cooling Condition - (Room DB): 80 °F
• Rated Cooling Condition - (Room WB): 67 °F
• Rated Heating Condition - (Ambient DB): 47 °F
• Rated Heating Condition - (Ambient WB): 43 °F
• Rated Heating Condition - (Room DB): 70 °F
• Rated Heating Condition - (Room WB): 60 °F
• Cooling Operation Range - (Std. Max): 114.8 °F
• Cooling Operation Range - (Std. Min): 50 °F
• Heating Operation Range - (Std.Max): 64.4 °F
• Heating Operation Range - (Std.Min): 5 °F
• Tonnage: 0.75
• Pipe Size Gas: 3/8 in
• Pipe Size Liquid: 1/4 in
• Rated Height Difference: 50 ft
• Rated Piping Length: 50 ft
• Refrigerant Pre-Charged Line Length: 50 ft
• Standard Line Set Length - (Max): 66 ft
• Proposition 65 Label: Yes
• Carton Type: CTN
• Case Qty: 1
• Dimensions - (Case Depth): 33.50 in
• Dimensions - (Case Height): 12.50 in
• Dimensions - (Case Width): 14.50 in
• Dimensions - (Pallet Depth): 48.00 in
• Dimensions - (Pallet Height): 30.00 in
• Dimensions - (Pallet Width): 45.00 in
• Dimensions - (Shipping Unit Depth): 33.50 in
• Dimensions - (Shipping Unit Height): 12.50 in
• Dimensions - (Shipping Unit Width): 14.50 in
• Shipping Volume - (Unit): 6071.875 in³
• Truck Factor: 0.0
• Volume - (Case): 6071.875 in³
• Weight - (Case): 26.000 lb
• Weight - (Distribution Shipping Unit): 24 lb
• Weight - (Shipping Unit): 26.000 lb
• Air Flow Rate (Super Low) - Cooling: 134 ft³/min
• Air Flow Rate (Super Low) - Heating: 212 ft³/min
• Max Outdoor Units: 1.0
• Condensate Drain Outlet: 5/8 in
• Nominal Cooling Capacity: 9 Btu/hr
• Nominal Heating Capacity: 10.9 Btu/hr
• Air Flow: 424 cfm
• Voltage: 120
• Frequency: 60 Hz
• Noise Rating: 43 dBA
• Phase: 1 ph
• Liquid Line Diameter: 1/4 in
• Suction Line Diameter: 3/8 in
• Refrigerant: R-32
• Breaker Size: 15 A
• Minimum Circuit: 14.9 A
• Compressor: Swing Compressor
• Capacity in Tons: 0.75 ton
• Mounting: Wall Mounting
• Warranty: 12 years Parts, Limited Lifetime
• Maximum Pipe Length: 66 ft
• Discharge Line Size: 1/4 in
• EER Rating: 12
• HSPF Rating: 9
• Mounting Type: Wall mount
• Nominal Capacity: 0.75T
• Power Source: 60 Hz, 1 Ph, 115 V
• SEER Rating: 20
• Series: OTERRA 115V
• Model: FTXQ09ASBU9
• UPC: 633190268594
• Product Height (in): 11.3
• Configuration: Wall Mounted
• Product Length (in): 8.8
• Air Flow Direction: Horizontal
• Product Width (in): 30.4
• Blower Motor: Variable Speed
• Cooling Capacity: Less than 1 Ton
• Electrical Phase: 1-Phase
• Line Set Connection Type: Flared
• Liquid Line Size: 1/4 inch
• Max Overcurrent Protection: 15 amps
• Weight (lbs): 18.000000
• System Application Type: Ductless Split Systems
