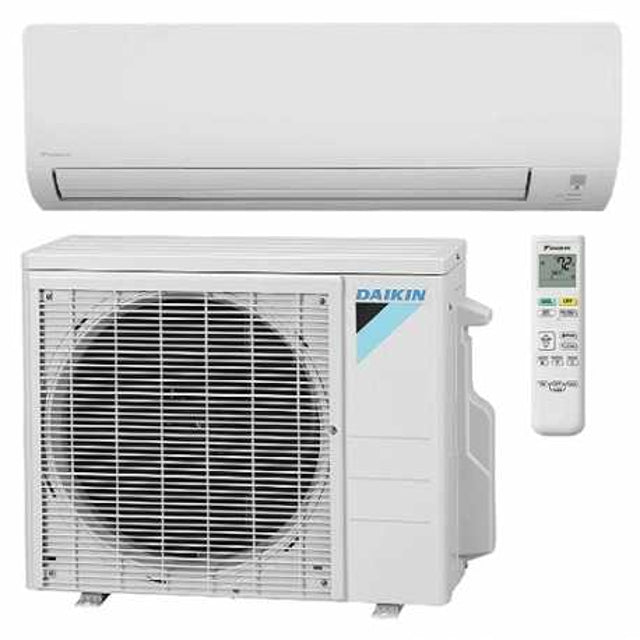

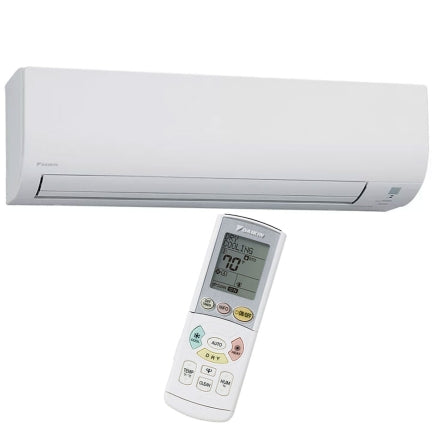

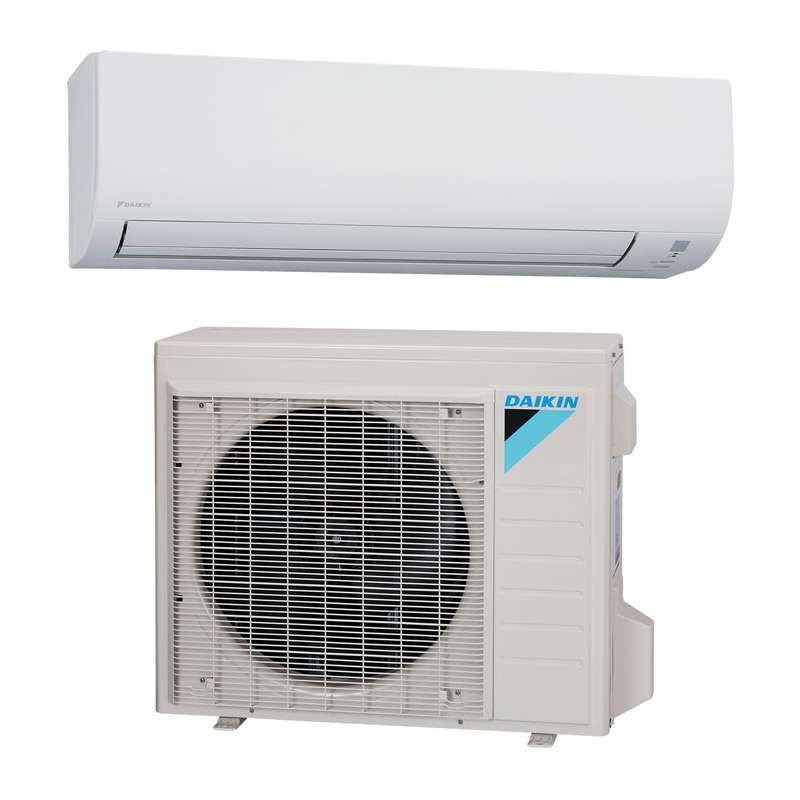

Daikin FTKN24NMVJU 15 Series Indoor Mini-Split Fan Coils 2 Ton

Product Description

The Daikin FTKN24NMVJU 15 Series Indoor Mini-Split Fan Coil is a 2 ton mini-split system designed for indoor use. This ductless mini-split provides cooling and features wide angle louvers and a vertical louver auto swing. KRP980B2 adaptor required for wired remote controller.

• Features a mold-resistant washable air filter.
• Operates with a quiet indoor unit.
• Offers multiple modes including comfortable, powerful, and econo mode.

Product Highlights

The Daikin FTKN24NMVJU mini-split fan coil provides efficient cooling with multiple fan speeds and auto restart.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: FTKN24NMVJU
• Country of Origin: China

Technical Specifications

• Class: Mini-Split Fan Coils
• Family: FTKN_NMVJU
• Tonnage: 2 tons
• Category: Mini-Split
• Unit Type: Indoor
• Unit Depth: 10-3/8 in
• Unit Width: 39 in
• Power Phase: 1 Ph
• Refrigerant: R-410A
• Unit Height: 11-5/8 in
• Unit Weight: 27 lb
• Power Voltage: 208-230 V
• Power Frequency: 60 Hz
• Cooling Capacity Rated: 22000 Btu/H
• Airflow Rate High Cooling: 713 ft³/min
• Brand: Daikin
• MPN: FTKN24NMVJU
• Product Category: Ductless Mini-Splits
• Product Class - (PIM): Mini-Split Fan Coils
• System Family: Mini-Split
• Function Category: Cooling Only
• Product Type: Equipment
• Product Family: FTKN_NMVJU
• Series Name: 15
• Installation Type: Wall Mounted
• Country of Origin: China
• US HTS Code: 8415.90.8065
• Canadian HTS Code: 8415.90.90.00
• Product ID: FTKN24NMVJU
• Cooling Operation Range - (Std. Max): 115 °F
• Cooling Operation Range - (Std. Min): 50 °F
• Rated Cooling Condition - (Ambient DB): 95 °F
• Rated Cooling Condition - (Ambient WB): 75 °F
• Rated Cooling Condition - (Room DB): 80 °F
• Rated Cooling Condition - (Room WB): 67 °F
• Air Flow Rate (Low) - Cooling: 491 ft³/min
• Air Flow Rate (Medium) - Cooling: 579 ft³/min
• Air Flow Rate (Super Low) - Cooling: 417 ft³/min
• Heat Exchanger Type: Air Cooled
• Moisture Removal Rate: 1.2
• Sound Pressure (High) - Cooling: 51 dBA
• Sound Pressure (Low) - Cooling: 39 dBA
• Sound Pressure (Medium) - Cooling: 45 dBA
• Sound Pressure (Super Low) - Cooling: 34 dBA
• Weight - (Unit): 27 lb
• Cooling Capacity - (Sensible): 16120 Btu/H
• Condensate Drain Outlet: 5/8 in
• Pipe Size Gas: 5/8 in
• Pipe Size Liquid: 1/4 in
• Rated Piping Length: 25 ft
• Refrigerant Type: R-410A
• Proposition 65 Label: Yes
• Carton Type: CTN
• Case Qty: 1.0
• Cooling Efficiency (EER): 9.2
• Cooling Efficiency (SEER): 15.0
• Nominal Tons: 2
• Nominal Tons_Sort: 2.0
• Sound Rating Decibels: 51
• Use with: RKN24NMVJU
• Voltage: 240
• Depth (In.): 10.38
• Width (In.): 39.00
• Height (In.): 11.63
• Shipping Weight (Lbs.): 38.00
• Application: Indoor
• CFM: 713
• Connection Liquid (In.): 1/4
• Connection Suction (In.): 5/8
• Connection Type: MFL
• Cooling Capacity (BTUH): 22000
• Prop65: No
• Rated Cooling Conditions: Indoor (°F DB/WB): 80 / 67
• Rated Cooling Conditions: Ambient (°F DB/WB): 95 / 75
• Sensible Capacity (Btu/hr): 16,120
• Max/Min Cooling Capacity (Btu/hr): 23,000 / 5,100
• Rated Height Difference (ft): 65.60
• Cooling Input Power (kW): 2.400
• SEER (Non-Ducted/Ducted): 15.00
• EER (Non-Ducted/Ducted): 9.20
• Model: FTKN24NMVJU
• Configuration: Wall Mounted
• Air Flow Direction: Horizontal
• Blower Motor: Multi Speed
• Electrical Phase: 1-Phase
• Line Set Connection Type: Flared
• Liquid Line Size: 1/4 inch
• Max Overcurrent Protection: 20 amps
• Series: 15 Series
• Suction Line Size: 5/8 inch
• System Application Type: Ductless Split Systems
