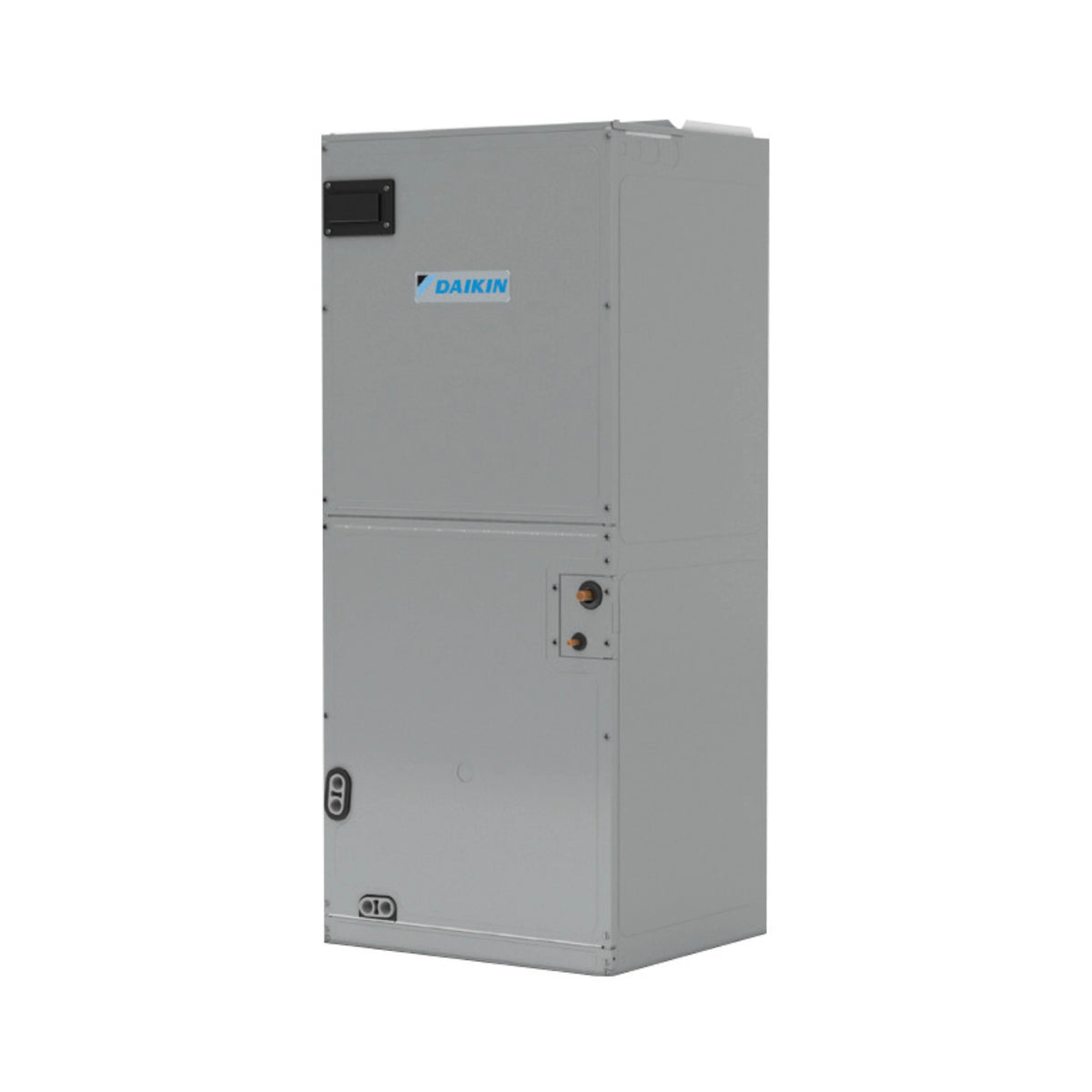

Daikin FTA48AAVJUD SkyAir Indoor Fan Coil 48K BTU (Multi-Position) Replaces FTQ48TAVJUD

Product Description

Daikin FTA48AAVJUD is a SkyAir indoor fan coil (air handler) rated at 4.0 ton (48,000 Btu/hr) for ducted mini-split or VRV systems. It is a multi-position indoor unit that uses R-32 refrigerant and operates on 208–230 V single-phase power. The unit provides multi-speed airflow and supports elevated external static pressure for ducted applications. Typical applications include residential and light commercial single-zone installations.

• 4.0 ton (48,000 Btu/hr) nominal cooling capacity; rated heating capacity 54,000 Btu/hr
• R-32 refrigerant; 208–230 V / 60 Hz single-phase power with factory-installed disconnect
• Multi-speed airflow ~1520 / 1290 / 1060 CFM; external static pressure up to ~0.9 in w.g.; sound pressure ~52 dBA

Product Highlights

Multi-position SkyAir indoor air handler for ducted single-zone systems with factory-installed disconnect and R-32 compatibility

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: FTA48AAVJUD
• Country of Origin: United States

Technical Specifications

• Brand: Daikin
• MPN: FTA48AAVJUD
• Product Type: Indoor fan coil / air handler
• Series: SkyAir
• Tonnage: 4.0 Ton
• Nominal Cooling Capacity: 48,000 Btu/hr (4.0 ton)
• Rated Heating Capacity: 54,000 Btu/hr
• Refrigerant: R-32
• Input Voltage: 208–230 V / 60 Hz / Single-phase
• Airflow (High/Medium/Low): ~1520 / 1290 / 1060 CFM
• External Static Pressure (Rated/Max): ~0.9 in w.g.
• Sound Pressure (High): ~52 dBA
• Dimensions (H x W x D): ~45 in x 17.5 in x 21 in
• Net Weight: ~116 lb (~52 kg)
• Gas Pipe Connection: 5/8 in
• Liquid Pipe Connection: 3/8 in
• Condensate Drain Connection: 3/4 in
• Indoor Mount Type: Multi-position
• Factory Installed Disconnect: Yes
• UPC: 663051750265
• Proposition 65 Label: Yes
• Produced in US: No
• Export Control Classification Number (ECCN): EAR99
