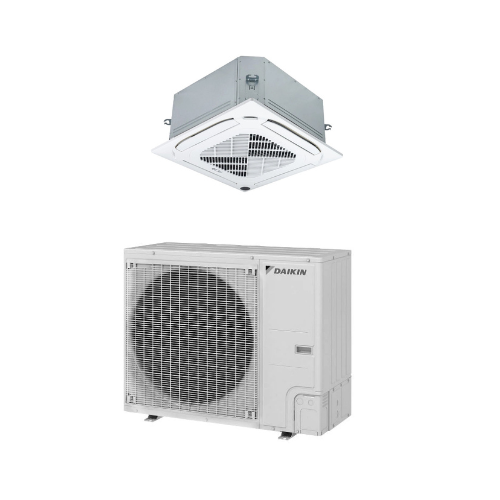

Daikin FCA42AAVJU 42,000 BTU SkyAir Ceiling Cassette Air Handler Mini Split R32

Product Description

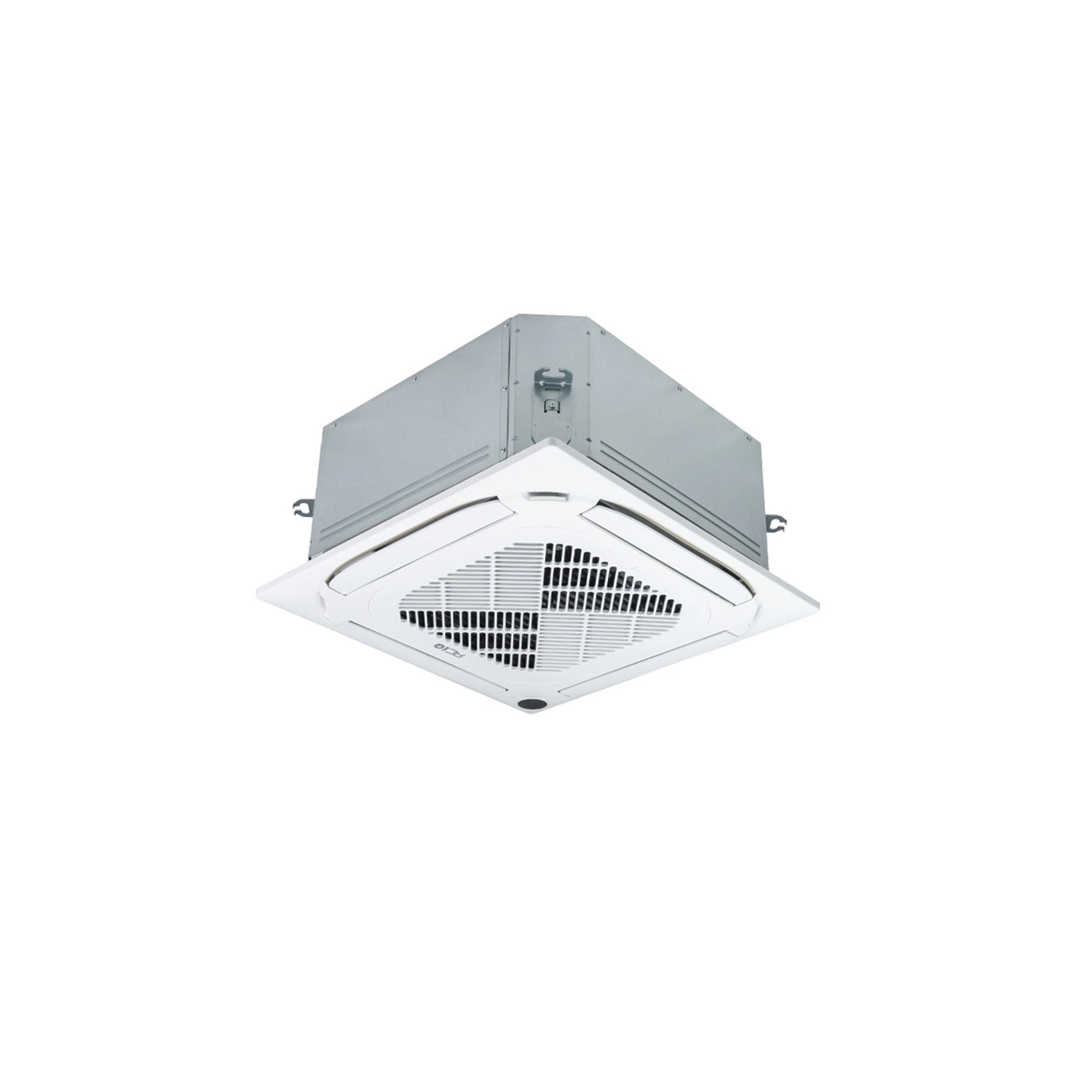

The Daikin FCA42AAVJU is a ceiling mounted cassette air handler designed for SkyAir single zone ductless HVAC systems. It provides efficient cooling and heating for residential or commercial spaces through ceiling installation. This unit uses R-32 refrigerant and delivers 360° air distribution for even temperature, quiet operation and reliable performance.

• Ceiling mounted cassette air handler
• Designed for SkyAir single zone ductless HVAC systems
• Efficient cooling and heating

Product Highlights

The Daikin FCA42AAVJU air handler delivers enhanced comfort and indoor air quality with quiet operation and reliable performance.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: FCA42AAVJU
• Country of Origin: USA

Technical Specifications

• Brand: Daikin
• Model #: FCA42AAVJU
• Refrigerant: R-32
• Total Indoor Unit(s) BTU: 42000
• Voltage Requirements: 208V/230V
• Series: SkyAir
• Nominal Capacity: ~42,000 BTU/h (1.5 tons)
• System Type: Mini split ceiling cassette air handler
• Application: Works with compatible Daikin outdoor units in single zone systems
• Power Supply: 208 230 V AC
• Phase: Single phase (1 Ph)
• Max Overcurrent Protection (MOP): ~15 A
• Airflow Pattern: 360 round flow
• BTU Capacity: 42,000 BTU
• Voltage: 208-230 V
• Max Overcurrent Protection: 15 A
• AC Type: Ceiling Cassette
• For: Ceiling Cassette
• SEER2 Rating: 18.9
• decibel level (dba) (FCA42AAVJU): 47 dBA
• liquid line (FCA42AAVJU): 3/8 in
• suction line (FCA42AAVJU): 5/8 in
• electrical (FCA42AAVJU): 208-230 V | 60 Hz | 1 Ph
• max breaker size (FCA42AAVJU): 15 A
• min. breaker size (FCA42AAVJU): 1.6 A
• height (FCA42AAVJU): 11-11/32 in
• width (FCA42AAVJU): 33-1/16 in
• depth (FCA42AAVJU): 33-1/16 in
• weight (FCA42AAVJU): 58 lb
• safety information (FCA42AAVJU): Proposition 65 Label: Yes
