Daikin FCA30AAVJU SkyAir Indoor Fan Coil 30,000 BTU

Product Description

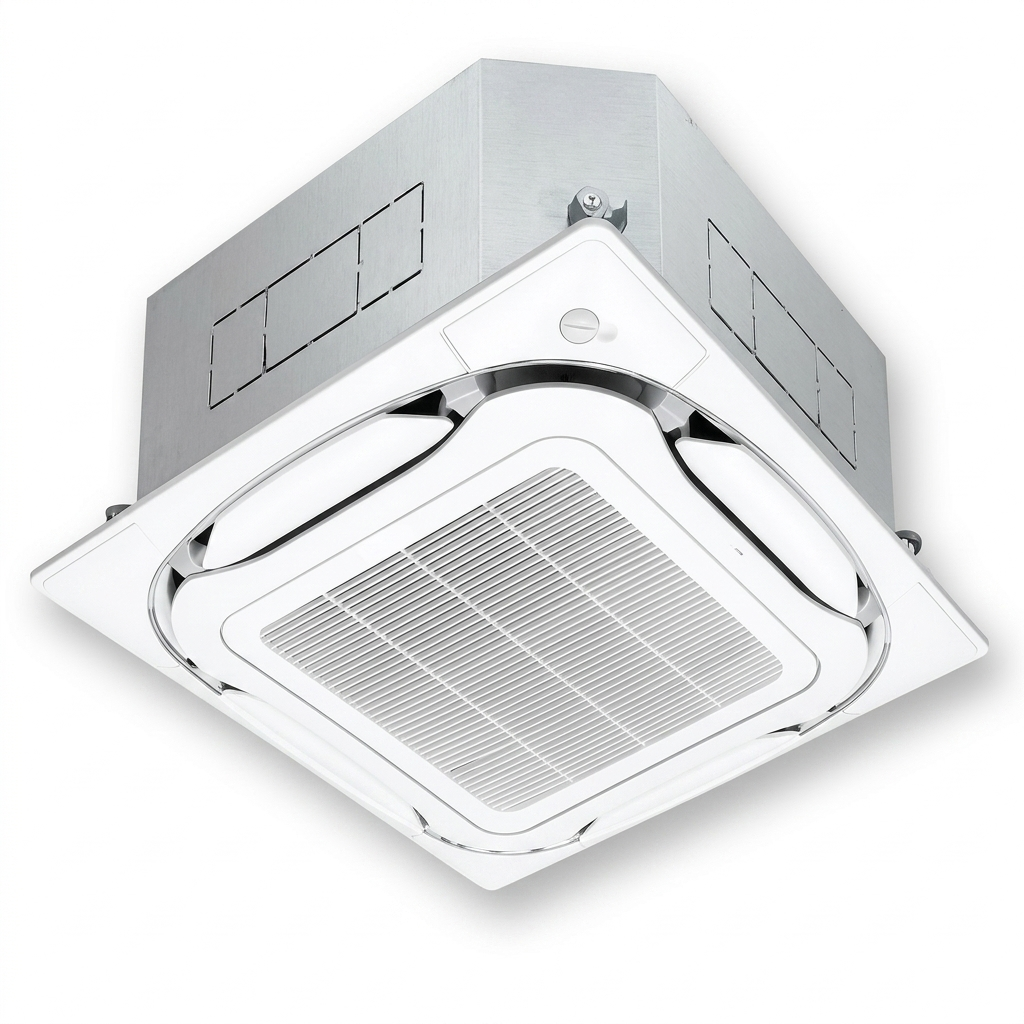

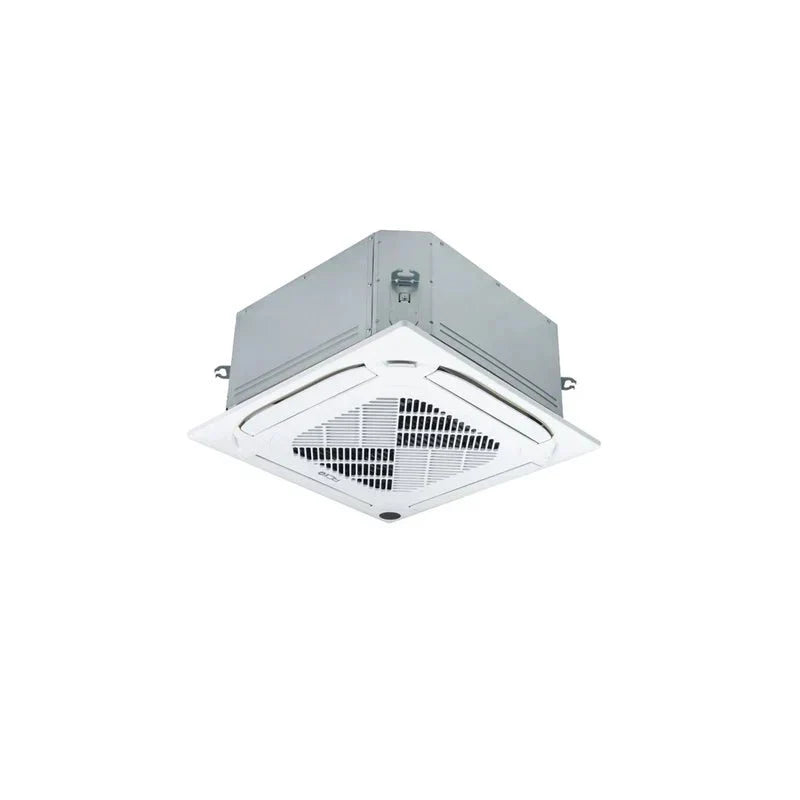

The Daikin FCA30AAVJU is a ceiling mounted cassette air handler designed for SkyAir single zone ductless HVAC systems. It provides efficient cooling and heating for residential or commercial spaces through ceiling installation. This unit uses R-32 refrigerant and delivers 360° air distribution for even temperature, quiet operation and reliable performance.

• Ceiling mounted cassette air handler
• SkyAir single zone ductless HVAC systems
• Efficient cooling and heating

Product Highlights

This Daikin SkyAir air handler delivers powerful, energy-efficient performance with a sleek, compact design. It supports integrated leak detection and ventilation control systems.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: FCA30AAVJU
• Country of Origin: USA

Technical Specifications

• Brand: Daikin
• MPN: FCA30AAVJU
• Product Category: Ductless Mini-Splits
• Product Class - (PIM): Sky Air Fan Coil
• System Family: Sky Air
• Function Category: Heat Pump
• Product Type: Equipment
• Unit Type: Indoor
• Product Family: FCA_AAVJU
• Refrigerant: R-32
• Total Indoor Unit(s) BTU: 30000
• Voltage Requirements: 208V/230V
• Series: SkyAir
• Indoor Mount Type: Wall Mount
• Indoor Unit BTUs: 30K
• Zone/Rooms: ["1"]
• Nominal Capacity: ~30,000 BTU/h (1.5 tons)
• System Type: Indoor air handler (requires outdoor condenser companion)
• Application: Works with compatible Daikin outdoor units in single zone systems
• Power Supply: 208 – 230 V AC
• Phase: 1 Ph
• Max Overcurrent Protection (MOP): ~15 A
• Airflow Pattern: 360° round flow
• Ideal for: open floor plans
• Designed for: energy efficient seasonal comfort
• Indoor Unit Weight: ~51 lb (approx.)
• Ceiling Cassette Package Profile: Low profile for ceiling integration, providing a discreet and clean installation appearance
• SKU: FCA30AAVJU
• BTU Capacity: 30,000 BTU
• Unit Height: 11-11/32 in
• Unit Width: 33-1/16 in
• Unit Depth: 33-1/16 in
• Unit Weight: 58 lb
• Voltage: 208-230 V
• Cooling Btu: 30000
• Compressor Stage: Inverter
• Electrical Phase(s): 1-Phase
• Decibel Level (dB): 42
• Compressor Warranty (Years): 10
• Amp(s): 15
• Total Shipping Weight (lbs.): 58
• Btu: 30000
• Indoor Unit Depth (Inches): 33 1/16
• Indoor Unit Height (Inches): 11 11/32
