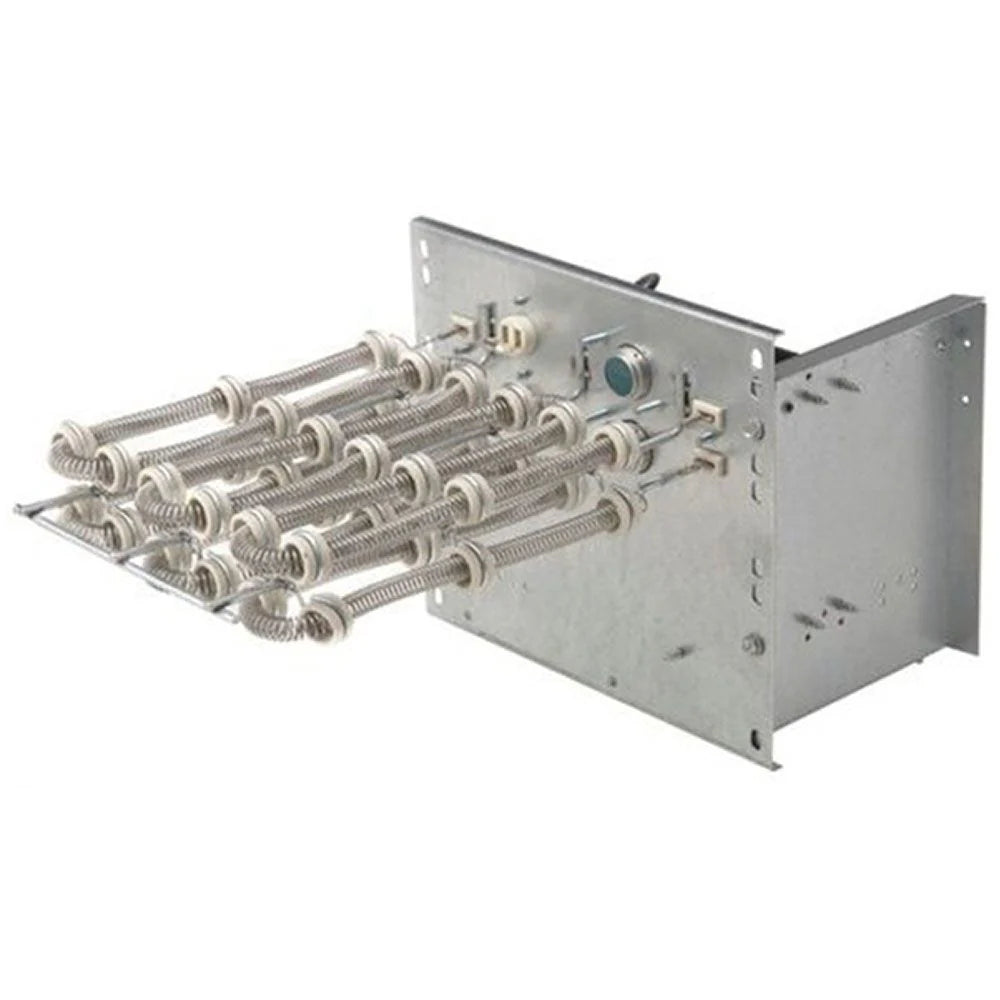

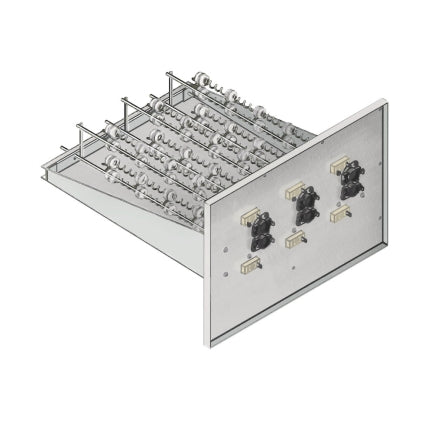

Daikin EHXD-4S17 15kW Electric Heat Kit for Daikin Commercial Package Unit - 3 Phase

Product Description

The DAIKIN EHXD-4S17 is a 15kW electric heat kit designed for Daikin commercial package units, operating on a 3-phase electrical system. It adds a furnace heating coil to the air conditioner unit, enabling it to produce and distribute heated air. This provides the unit with the ability to produce both cooler air in warmer months and heated air in colder months.

• Daikin EHXD-4S17
• Energy efficient operation
• Staged heating

Product Highlights

This electric heat kit offers a fully electric heating solution, eliminating the need for a gas line. It features a small chassis for minimal operating space and easy installation and maintenance.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: EHXD-4S17

Technical Specifications

• Model: EHXD-4S17
• Product Height (in): 19
• Electrical Phase: 3-Phase
• Product Length (in): 10
• Heat Strip Size: 15 kW
• Product Width (in): 9
• Max Overcurrent Protection: 50/25 amps
• Primary Heating Capacity: 50,001 - 55,000 BTU
• Voltage: 480
• kW: 15kW
• Operating Mode: Heating
• Heat Type: Electric
• Heating Capacity (BTU/h): 51400
• Voltage (VAC): 460
• Phase: Three
• Frequency (Hz): 60
• Power Consumption: 15 kW
• Rated Voltage: 460-3-60
• Average Electricity Usage: 15kW
• Manufacturer: Daikin
• Product code: 57170
• SKU: 57170
