Daikin ehxd-3m20 Electric Heat Kit 20kw 208-230V 3ph

Product Description

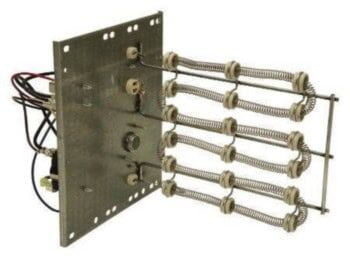

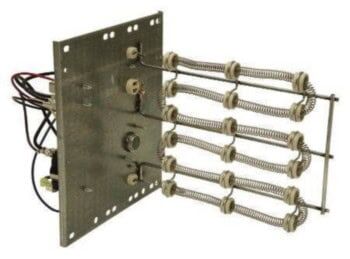

The DAIKIN ehxd-3m20 is a direct-drive electric heat kit rated at 20 kilowatts (kW) for use with compatible air handling units and fan coil systems. Operating on 208-230 volts, three-phase power, this heat kit installs inside the air handler cabinet and provides supplemental or primary electric resistance heating. It is designed for commercial and light-commercial HVAC applications where gas heat is unavailable or not preferred. Licensed HVAC technicians perform installation and commissioning in accordance with local electrical codes and equipment manufacturer requirements.

This heat kit is suited for installations requiring three-phase electric heat in commercial air handler configurations. Typical applications include rooftop unit supplemental heat, standalone air handling units in light-commercial buildings, and systems where primary heating is provided by electric resistance. The direct-drive design integrates into the air handler without additional duct heater hardware, simplifying the installation footprint and electrical termination process.

Key Features

• 20 kW heating output for substantial supplemental or primary heat capacity
• 208-230 volt, three-phase operation for commercial electrical systems
• Direct-drive design integrates into compatible air handler cabinets
• Electric resistance heat eliminates the need for gas supply or flue venting
• Designed for straightforward field installation by qualified HVAC technicians

Compatibility

Designed as an OEM-style electric heat kit for compatible DAIKIN air handling units and fan coil systems requiring 208-230V three-phase supplemental or primary electric heat.

Installation Notes

Installation must be performed by a licensed HVAC or electrical contractor in accordance with NEC requirements and local codes. Disconnect and lock out all electrical power to the air handler before beginning any installation or service work. Verify that the supply circuit voltage, phase, and ampacity match the heat kit ratings before making final electrical connections. Do not energize the heat kit unless adequate airflow through the air handler is confirmed to prevent overheating.

Technical Specifications

• Heating Capacity: 20 kW
• Voltage: 208-230 volts
• Phase: 3 Phase
• Drive Type: Direct Drive

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: ehxd-3m20
