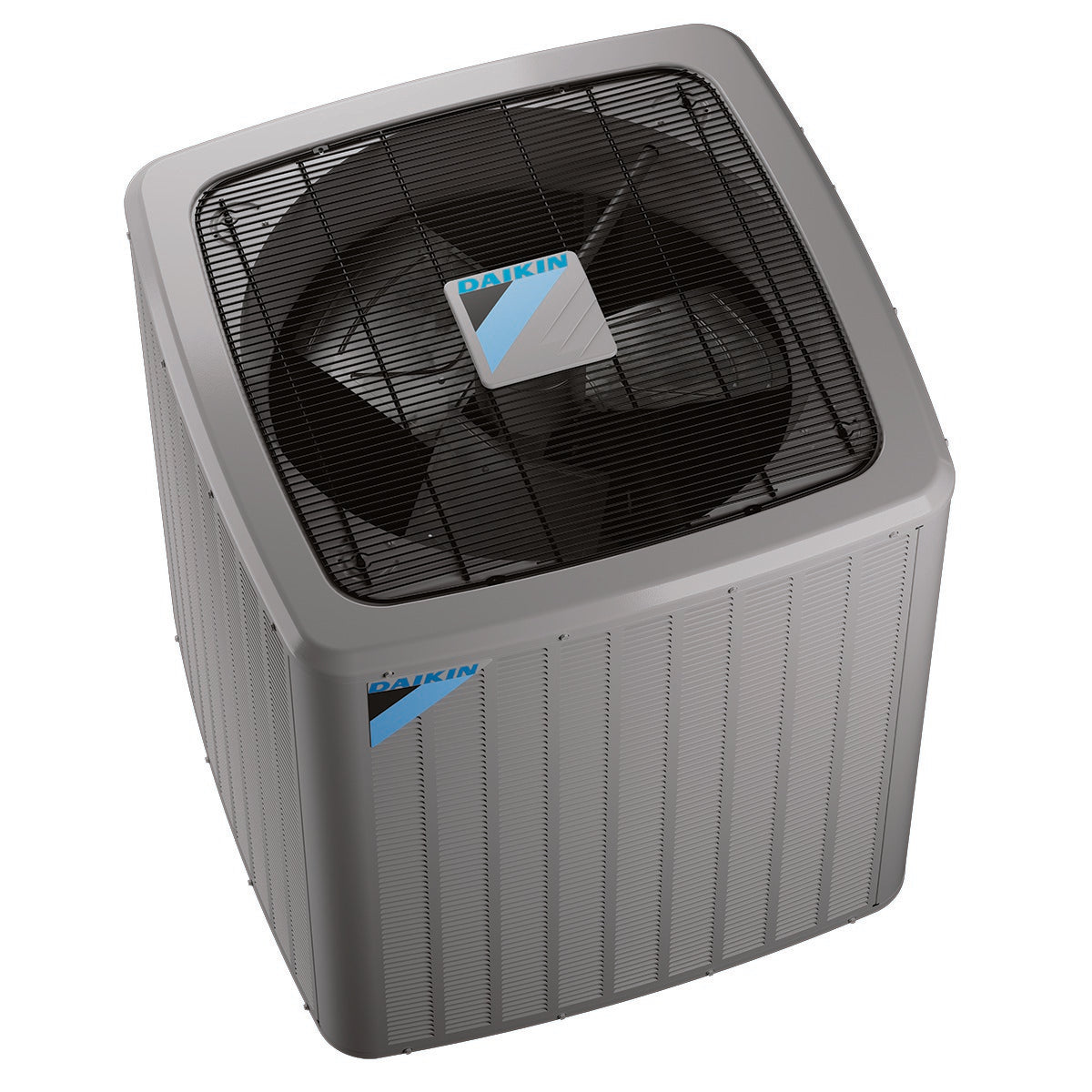

Daikin DZ7TCA2410 split heat pump 17.2 SEER2 2 ton

Product Description

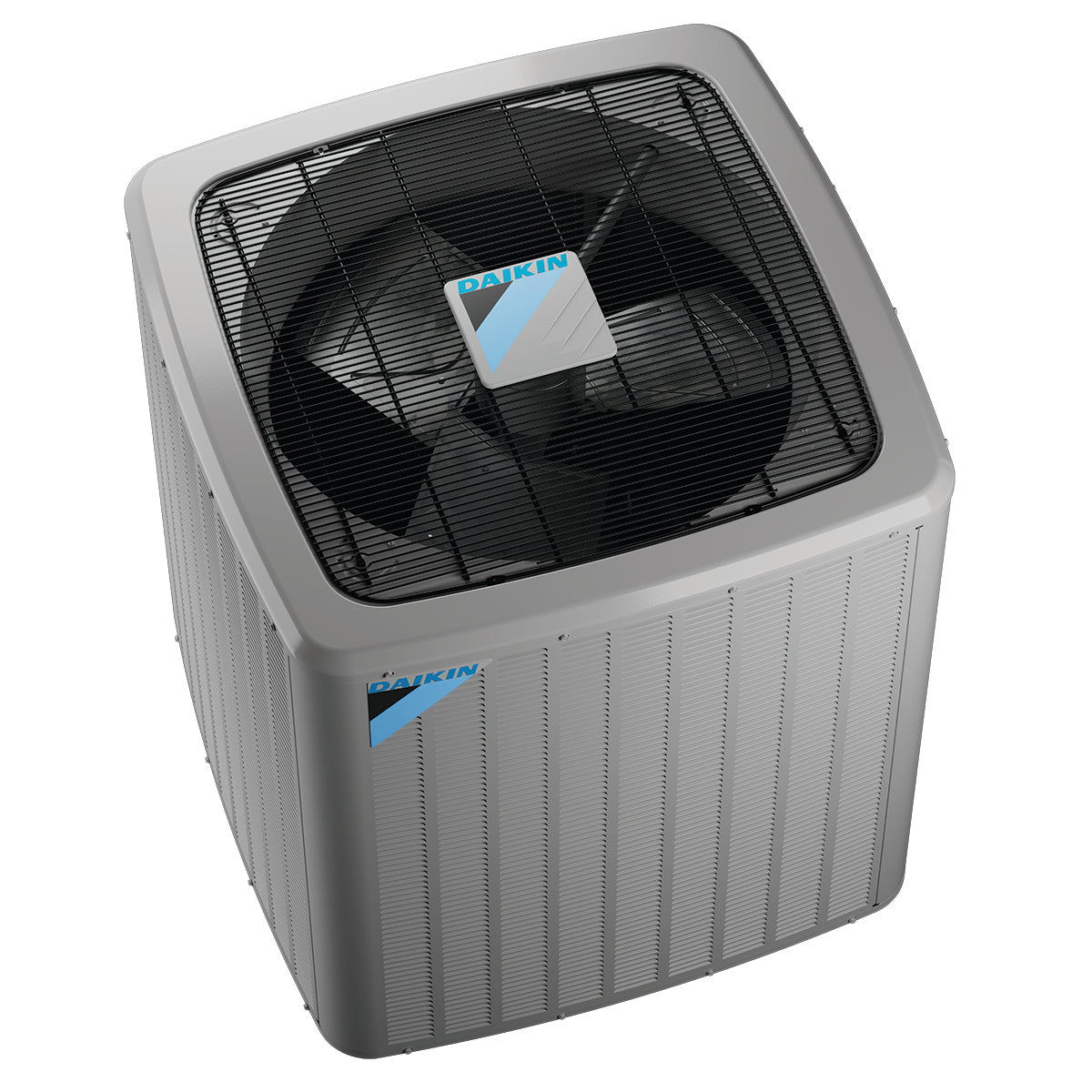

The DAIKIN DZ7TCA2410 is a 2-ton, two-stage split heat pump designed for efficient residential heating and cooling. This outdoor unit features a 17.2 SEER2 rating and utilizes R-410A refrigerant, making it compatible with Daikin One+ smart thermostats. It operates on 208/230V power with a scroll compressor, providing reliable performance for ducted HVAC systems.

• Two-Stage Copeland Ultra-Tech scroll compressor for optimized performance.
• Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment.
• Features ComfortAlert built-in diagnostics for easy troubleshooting.

Product Highlights

Meets the 2023 M1 Test Standards for efficiency.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DZ7TCA2410
• Country of Origin: USA

Technical Specifications

• Product Class: Split Heat Pump
• Product Family: DZ7TC
• Tonnage: 2 tons
• Product Category: Split Heat Pump
• Unit Type: Outdoor
• Power Phase: 1
• Refrigerant Type: R-410A
• Max Voltage: 253
• Min Voltage: 197
• Power Voltage: 208/230
• Compressor Type: Scroll
• Power Frequency: 60
• Cabinet Features: Grille-style sound control top design; Custom Nickel Gray powder-paint finish; 500-hour salt-spray tested; Wire fan discharge grille; Steel louver coil guard; Single panel access to controls with space provided for field-installed accessories; Sweat connection service valves with easy access to gauge ports; When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
• Model Efficiency: 17.2 SEER2
• Compressor Stages: Two Stage
• Proposition 65 Label: true
• Cooling Capacity Rated: 23800
• Heating Capacity Rated: 23100
• Suction Valve Outside Diameter: 3/4"
• Brand: Daikin
• System Family: Unitary Split System
• Function Category: Heat Pump
• Product Type: Equipment
• Market Type: Residential-Single Family
• Series Name: DZ7TC
• Installation Type: Ducted
• Communication Feature: Yes
• Communication Feature Type: Daikin One+ Smart Thermostat compatible
• ISO Certified: Yes
• COP47: 4.06
• EER2: 12.5
• EER2 Ducted: 12.5
• ENERGY STAR Certified: Yes
• Heating Capacity Nominal: 24000 Btu/H
• HSPF 2: 8.2
• HSPF 2 Ducted: 8.2
• SEER 2: 17.2
• SEER2 Ducted: 17.2
• Cooling Operation Range Max: 125 °F
• Cooling Operation Range Min: 55 °F
• Heating Operation Range Max: 70 °F
• Heating Operation Range Min: -20 °F
• Rated Cooling Condition Ambient DB: 95 °F
• Rated Cooling Condition Ambient WB: 75 °F
• Rated Heating Condition Ambient DB: 47 °F
• Rated Heating Condition Ambient WB: 43 °F
• Compressor LRA: 61 A
• Compressor RLA: 10.9 A
• Max Overcurrent Protection: 25.0 A
• Rated Load Amps: 10.9 A
• Expansion Device: TXV
• Sound Pressure High Cooling: 71 dBA
• Additional Refrigerant Charge: 0.67
• Factory Standard Refrigerant Charge: 124 oz
• Pipe Size Liquid: 3/8 in
• Refrigerant Pre-Charged Line Length: 15 ft
• Standard Line Set Length Max: 200 ft
• Standard Line Set Length Vertical: 80 ft
• Valve Connection Type: Front-Seated
• Release Status: Active
• Components Product Reference: ABK-20;CSR-U-1;DTST-CWBSA-NI-A;DTST-TOU-A;FSK01A;OT18-60A;TXV-FX-KX-2T;DTST-CWBSA-NI-A;DTST-TOU-A
• Manufacturer Name: DAIKIN UNITARY PRODUCTS
• Equipment Class: DAIKIN HP
