Product Description

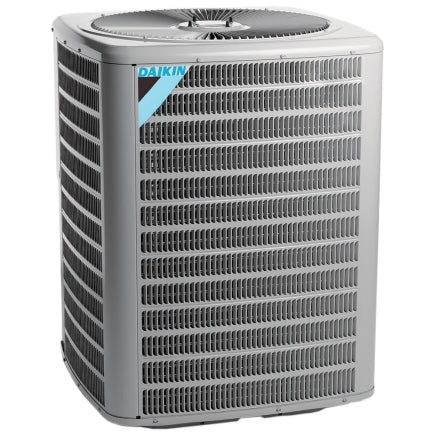

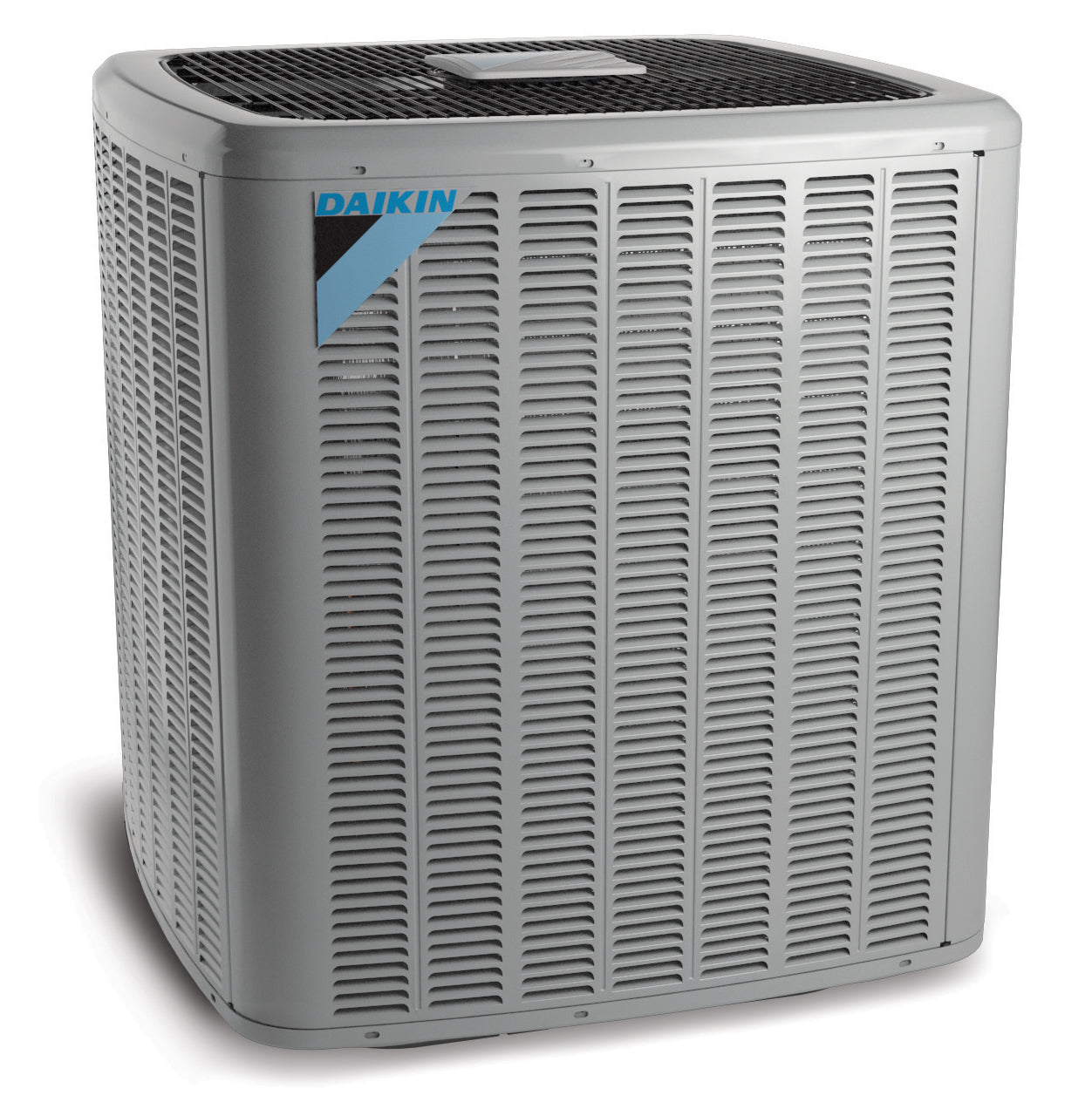

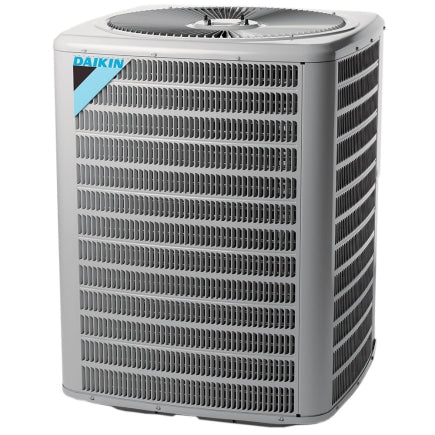

The DAIKIN DX11TA1204 light commercial split air conditioner features 11.2 EER/13.5 IEER, two-stage cooling, and three-phase power. This outdoor unit provides 120000 BTU cooling capacity and utilizes R-410A refrigerant. It is designed with an innovative sound control top and a steel louver coil guard for enhanced durability. The unit meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds when properly anchored.
- Two-Stage energy-efficient compressor

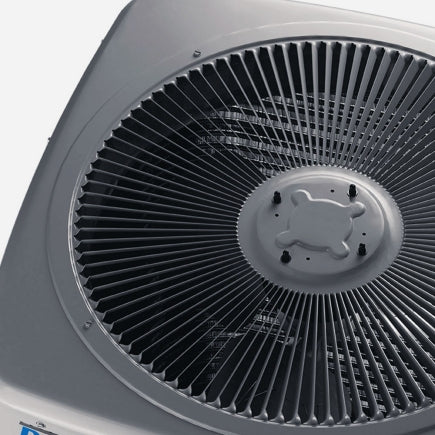

- Quiet operating top discharge
- High-efficiency copper tube / aluminum fin coil
Product Highlights
This Daikin air conditioner is AHRI certified, ETL listed, and complies with ASHRAE 90.1-2016 standards.
Product Information
Standard Information
-
Brand: DAIKIN
-
Manufacturer Part Number: DX11TA1204
-
Country of Origin: USA
Technical Specifications
-
Class: Split Air Conditioner
-
Family: DX11TA_4
-
Tonnage: 10 tons
-
Category: Split Air Conditioner
-
Keywords: DX11TA1204
-
Unit Type: Outdoor
-
Unit Depth: 35-1/2 in
-
Unit Width: 35-1/2 in
-
Power Phase: 3 Ph
-
Refrigerant: R-410A
-
Unit Height: 41-1/2 in
-
Max Voltage: 506 V
-
Min. Circuit Amps: 22.0 A
-
Min. Voltage: 414 V
-
Power Voltage: 460 V
-
Compressor Type: Scroll
-
Power Frequency: 60 Hz
-
Cabinet Features: Innovative sound control top design
Steel louver coil guard protects the coil from damage and adds strength to unit
500-hour salt-spray tested
Bottom pan rails elevate unit above slab
Heavy-gauge galvanized steel cabinet
Attractive Nickel Gray powder paint finish
When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available)
-
Compressor Stages: Two Stage
-
Cooling Capacity Rated: 120000 Btu/H
-
Liquid Valve Outside Diameter: 5/8 in
-
Suction Valve Outside Diameter: 1-3/8 in
-
Product Category: Light Commercial
-
Product Class - (PIM): Split Air Conditioner
-
System Family: Light Commercial Split System
-
Function Category: Cooling Only
-
Product Type: Equipment
-
Market Type: Light Commercial
-
EER (HSVTC): 11.2
-
EER Ducted: 11.2
-
IEER Ducted: 13.5
-
Cooling Capacity - (Nominal): 120000 Btu/H
-
Cooling Operation Range - (Std. Max): 115 ��F
-
Cooling Operation Range - (Std. Min): 65 ��F
-
Cooling Operation Range - (w/Baffle Min): 55 ��F
-
Rated Cooling Condition - (Ambient DB): 95 ��F
-
Rated Cooling Condition - (Ambient WB): 75 ��F
-
Rated Cooling Condition - (Room DB): 80 ��F
-
Rated Cooling Condition - (Room WB): 67 ��F
-
Compressor LRA: 130 A
-
Compressor RLA: 14.8 A
-
Max Overcurrent Protection: 35 A
-
Outdoor Fan FLA: 3.5 A
-
Rated Load Amps: 12.0 A
-
ANSI Certifed: Yes
-
Compressor Sound Blanket: No
-
Sound Pressure (High) - Cooling: 84 dBA
-
Cooling Capacity - (Sensible): 80000 Btu/H
-
Refrigerant Type: R-410A
-
Valve Size Liquid (O.D.): 5/8 in
-
Valve Size Suction (O.D.): 1-3/8 in
-
Pipe Size Liquid: 5/8 in
-
Pipe Size Gas: 1-1/8 in
-
Factory Std. Refrigerant Charge: 55 oz
-
Indoor TXV Kit: TX5N4
-
Long Line Set Length - (Equivalent): 200 ft
-
Long Line Set Length - (Linear): 150 ft
-
Refrigerant Pre-Charged Line Length: 15 ft
-
Standard Line Set Length - (Max): 74 ft
-
Standard Line Set Length - (Vertical): 50 ft
-
Vertical Length - (OD Above ID): 25 ft
-
Vertical Length - (OD Below ID): 80 ft
-
BtuH Cooling: 120,000
-
EER: 11.2
-
Liquid Conn.: 5/8"
-
Nom. Tons: 10
-
Suction Fitting: 1-3/8"
-
Volts: 460
-
Wt. Lbs.: 340
-
Model: DZ11TA
-
Voltage Rating: 460 V
-
Amperage Rating: 22 A
-
Sound Level: 84 dBA
-
HP Rating: 1 hp
-
Frequency Rating: 60 Hz
-
Number of Stages: 2
-
Liquid Line Size: 5/8 in
-
Suction Line Size: 1-3/8 in
-
Connection Type: Sweat
-
Fuse Rating: 35 A
-
Material: Steel
-
Finish: Galvanized/Powder-Coated
-
Avg Coverage Area: 3,000+ Sq Ft
-
Cooling Capacity: 6+ Ton
-
Electrical Phase: 3-Phase
-
Line Set Connection Type: Sweat
-
System Application Type: Central Split Systems
-
Voltage: 480
-
Region Compatibility: Nationwide
