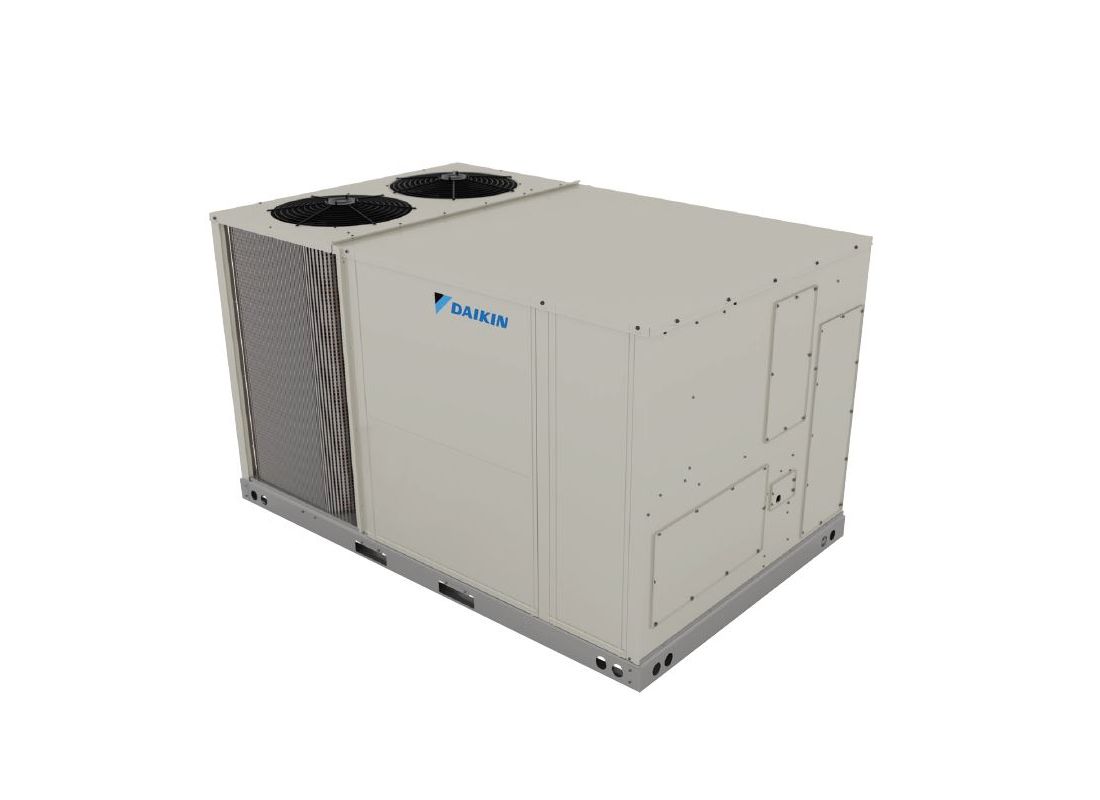

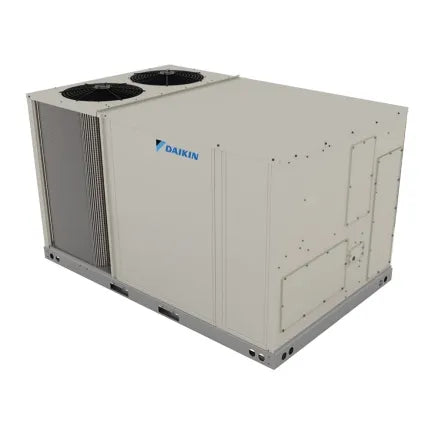

Daikin DSH1203D000001S Packaged Heat Pump 10 Ton

Product Description

The DAIKIN DSH1203D000001S packaged heat pump delivers efficient heating and cooling. This unit features a direct drive type and a single-stage condenser. It is designed for easy installation and is a direct replacement for most rooftop units. The unit uses R-410A chlorine-free refrigerant and has a factory-installed filter drier.

• Direct Drive Type
• Single Stage Condenser

Product Highlights

This packaged heat pump offers lower installation and operating costs, superior indoor air quality, and quiet operation.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DSH1203D000001S

Technical Specifications

• SKU: DSH1203D000001S
• Refrigerant Charge: Pre-charged
• Brand/Manufacturer: Daikin
• Replaces: DFH1203D000001S
• Additional Information: Uses two 20" x 25" x 2" and two 25" x 25" x 2" filters
• Cooling BTU: 116,000 BTU
• Heating BTU: 125,000 BTU
• Drive Type: Direct
• Maximum CFM: 3850
• Decibel Level (dBA): 86.8 decibels
• Motor RPM: 300-1600
• Horsepower: 7.333 HP
• Refrigerant: R32
• EER: 11
• IEER: 14.1
• Condenser Stages: Single Stage
• Compressor Type: Scroll
• Electrical: 208-230V / 3 Phase / 60 Hz
• Phase: Three Phase
• Max Breaker Size: 60/60 amps
• Min. Breaker Size: 51.5/51.5 amps
• Tonnage: 10 Ton
• Series: DSH Series
• Cooling BTU Rating: 116000 Btu/h
• Heating BTU Rating: 116000 Btu/h
• Voltage Rating: 208/230 V
• Amperage Rating: 30 A
• Refrigerant Type: R-32
• Mounting Type: Rooftop
• Rotational Speed: 1600 rpm
• CFM Rating: 3850 cfm
• Number of Stages: 1
• Motor Type: Direct Drive
• Fins per Inch: 3 / 16
• Material: Steel
• Finish: Galvanized/Powder-Painted
• Model Number(s): DSH1203D000001S
• Type: Standard Efficiency
• Ton: 10.0 Ton
• Cooling Stage(s): 1
• Heating Stage(s): 1
• Compressor Stage: Single
• Electrical Phase(s): 3-Phase
• Amp(s): 70
• Efficiency: 15.2 IEER / 11.5 EER
• AHRI Number: 215440995
• Item Name: Packaged Heat Pump
• Air Flow: 3850 cfm
• Sound Rating: 75.8 dB
• Ampere Rating: 17.3 A
• Frequency Rating: 60 Hz
• Heating Capacity: 116000 Btu/hr
• Horse Power: 3.5 hp Blower Motor, 1/3 hp Condenser Motor
• Capacity in Ton: 10
• Capacity in Tons: 10
• Min. Circuit Amp: 55.2 A
• Standards: AHRI Certified, cETLus Intertek Listed
• Condensate Connection: 3/4 in FNPT
• Construction: Powder Painted Galvanized Steel
• Capacity (Max.)Heating at 17 Deg F: 65 mbh
• Capacity (Max.)Heating at 47 Deg F: 116 mbh
• Capacity (Max.)Heating at 5 Deg F: 44.6 mbh
• Capacity Cooling: 116000 Btu/hr
• Capacity Heating: 116000 Btu/hr
• Full Load Amperage: 2/10.9 A
• Locked Rotor Amperage: 155 A
• Power Consumption Rated (Max.)Heating @ 17 Deg F: 8.47 kW
• Power Consumption Rated (Min. - Max.)Heating @ 47 Deg F: 10 kW
• Rated Load Amperage[Compressor]: 17.3 A
• Locked Rotor Amps: 155 A
• Maximum Overcurrent Amps: 70 A
• Maximum Overcurrent Protection: 70 A
• Outdoor Coil Number of Rows: 3
• Power Supply Connection: 1-3/8 in
• Stages of Cooling: 1
• UPC: 633190263711
• Product Height (in): 54.6
• Product Length (in): 60.4
• Avg Coverage Area: 3,000+ Sq Ft
• Product Width (in): 90.8
• Compressor: Single Stage
• Cooling Capacity: 6+ Ton
• Electrical Phase: 3-Phase
• Weight (lbs): 1157.00
• Primary Heating Capacity: 115,001 - 120,000
• Voltage: 240
• Region Compatibility: Nationwide
