Product Description

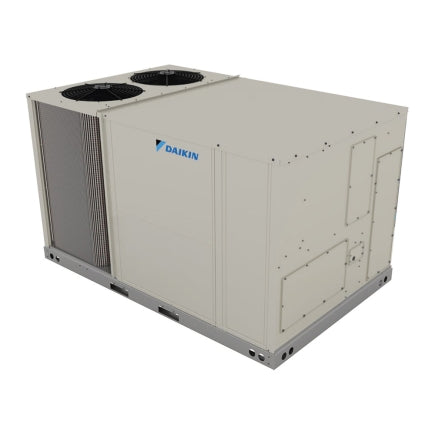

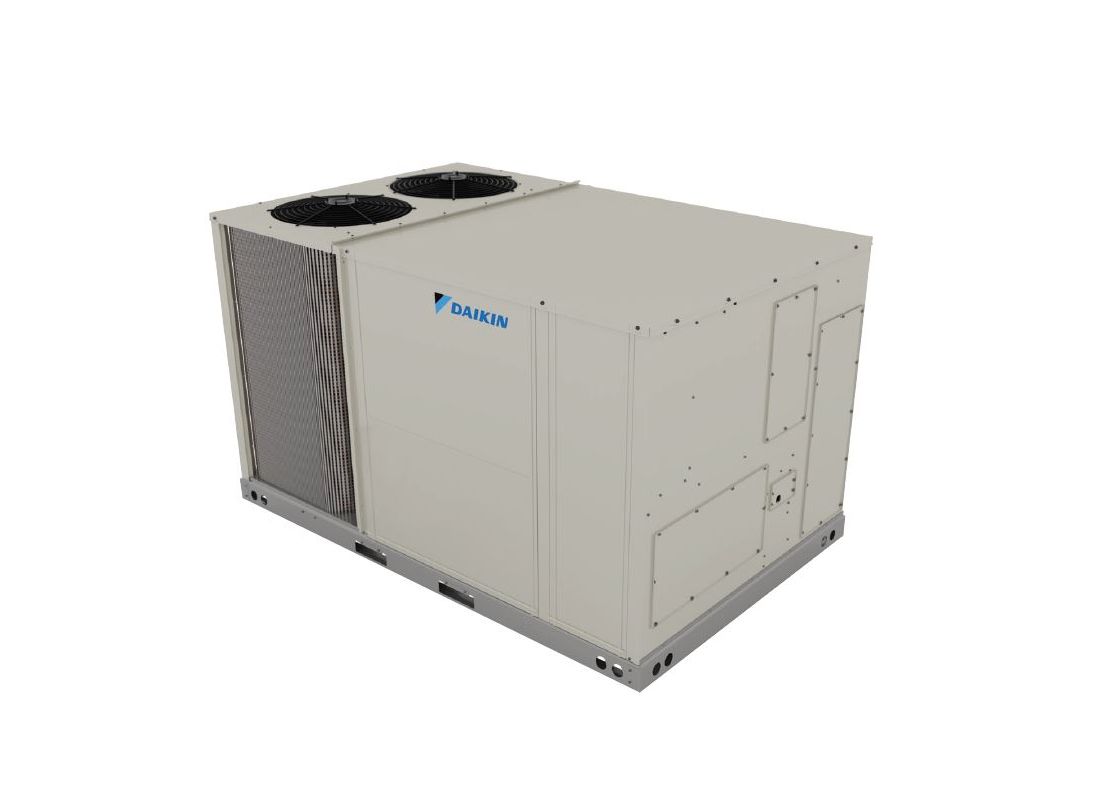

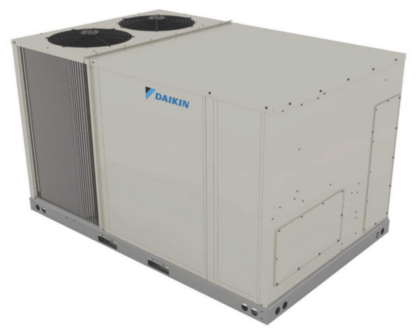

The DAIKIN DSH0903D000001S light commercial packaged heat pump is designed for fast and easy installation, ideal for new construction and retrofit projects. This 7.5 ton unit delivers efficient heating and cooling performance in one self-contained unit suitable for ground-level or rooftop installations. It features a heavy-gauge, galvanized steel cabinet with a powder-paint finish for weather resistance.
- Designed for fast and easy installation in new and retrofit projects.
- Made with high-quality galvanized steel and a powder-paint finish for corrosion resistance.
- Utilizes R32 chlorine-free refrigerant and an energy-efficient scroll compressor.
Product Highlights
This Daikin heat pump offers energy-efficient heating and cooling with a durable design and simplified installation.
Product Information
Standard Information
-
Brand: DAIKIN
-
Manufacturer Part Number: DSH0903D000001S
-
Country of Origin: Japan
Technical Specifications
-
Brand: Daikin
-
MPN: DSH0903D000001S
-
Product Category: Light Commercial
-
Product Class - (PIM): Light Commercial Packaged Heat Pump
-
System Family: Light Commercial Packaged System
-
Function Category: Heat Pump
-
Product Type: Equipment
-
Unit Type: Outdoor
-
Market Type: Light Commercial
-
Product Family: DSH090D
-
Installation Type: Rooftop
-
Communication Feature: No
-
ISO Certified: Yes
-
Power Frequency: 60 Hz
-
Power Phase: 3 Ph
-
Power Voltage: 208-230 V
-
Energy Source: Electric
-
Proposition 65 Label: Yes
-
Release Status: Active
-
Refrigerant Charge: 143 oz
-
Replaces: DFH0903D000001S
-
Additional Information: Uses two 20" x 25" x 2" and two 25" x 25" x 2" filters
-
Cooling BTU: 86,000 BTU
-
Heating BTU: 90,000 BTU
-
Drive Type: Direct
-
Maximum CFM: 3000
-
Decibel Level (dBA): 86.8 decibels
-
Motor RPM: 300-1600
-
Horsepower: .5 HP
-
Refrigerant: R32
-
EER: 11
-
IEER: 14.1
-
Condenser Stages: Single Stage
-
Compressor Type: Scroll
-
Phase: Three Phase
-
Max Breaker Size: 50/50 amps
-
Min. Breaker Size: 43.0/43.0 amps
-
Tonnage: 7.5 Ton
-
Model Number: DSH0903D000001S
-
Type: Standard Efficiency
-
Nominal Capacity: 7.5 ton
-
Cooling Capacity: 6+ Ton
-
Air Flow: 3000 cfm
-
Sound Rating: 76.6 dB
-
Voltage Rating: 208/230 V
-
Ampere Rating: 12.2 A
-
Frequency Rating: 60 Hz
-
Heating Capacity: 86000 Btu/hr
-
Capacity in Ton: 7.5
-
Refrigerant Type: R-32
-
Valve Type: Thermal Expansion
-
CFM: 3000
-
Capacity in Tons: 7.5
-
Min. Circuit Amp: 39.4 A
-
Standards: AHRI Certified, cETLus Intertek Listed
-
Condensate Connection: 3/4 in FNPT
-
Construction: Powder Painted Galvanized Steel
-
Capacity (Max.)Heating at 17 Deg F: 51 mbh
-
Capacity (Max.)Heating at 47 Deg F: 85 mbh
-
Capacity (Max.)Heating at 5 Deg F: 37.4 mbh
-
Capacity Cooling: 86000 Btu/hr
-
Capacity Heating: 86000 Btu/hr
-
Electrical Conduit Size: 1/2 in
-
Full Load Amperage: 2/8 A
-
Locked Rotor Amperage: 120 A
-
Power Consumption Rated (Max.)Heating @ 17 Deg F: 7.95 kW
-
Power Consumption Rated (Min. - Max.)Heating @ 47 Deg F: 8.62 kW
-
Rated Load Amperage[Compressor]: 12.2 A
-
Locked Rotor Amps: 120 A
-
Maximum Overcurrent Amps: 50 A
-
Maximum Overcurrent Protection: 50 A
-
Outdoor Coil Number of Rows: 3
-
Power Supply Connection: 1-3/8 in
-
Stages of Cooling: 1
-
AHRI Number: 215440989
-
Product Height (in): 54.625
-
Product Length (in): 93.75
-
Avg Coverage Area: 3,000+ Sq Ft
-
Product Width (in): 59.625
-
Compressor: Single Stage
-
Electrical Phase: 3-Phase
-
Max Overcurrent Protection: 50/50 amps
-
Primary Heating Capacity: 85,001 - 90,000
-
Motor Type: Direct Drive
-
Item Name: Packaged Heat Pump
-
Series: DSH Series
