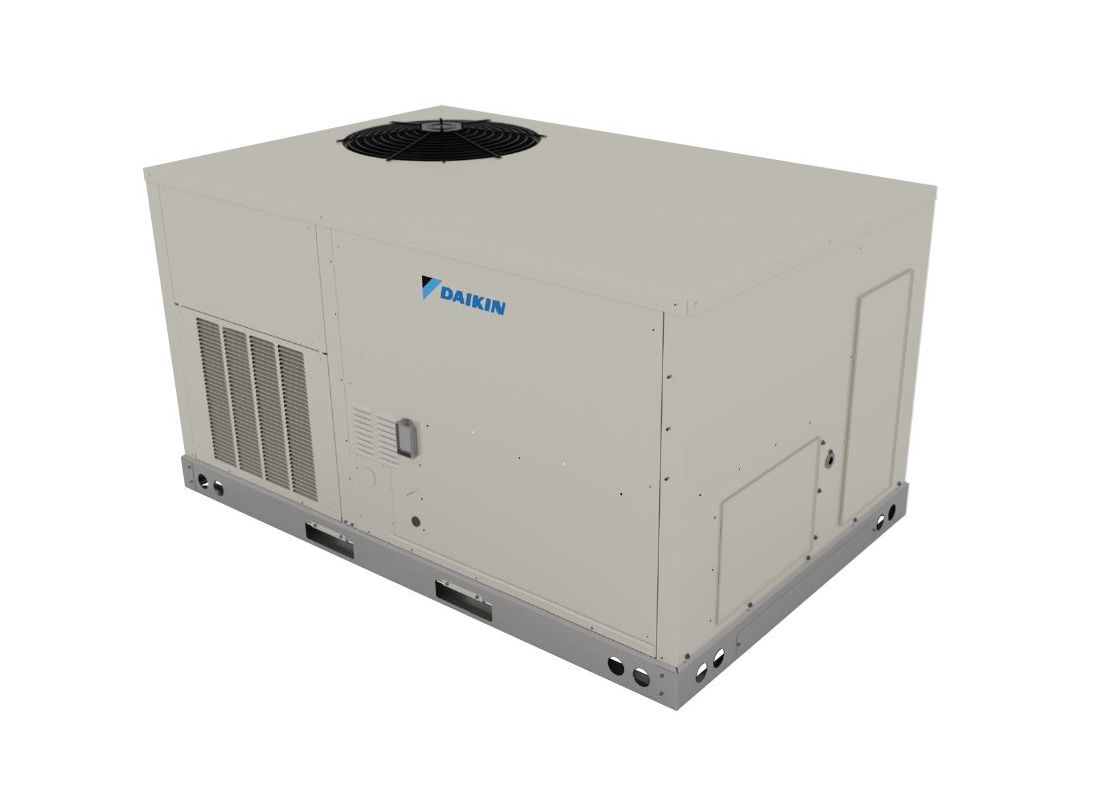

Daikin DSH0603D000001S Heat Pump 5 Ton REPLACEMENT DFH0603D000001S

Product Description

The DAIKIN DSH0603D000001S heat pump is designed for fast and easy installation, ideal for new construction and retrofit projects. This 5 ton unit features a direct-drive with airfoil single width, single inlet (SWSI) Class II construction supply fan with aluminum fan blades for efficient and quiet operation. Made with high-quality galvanized steel with a powder-paint finish for higher corrosion resistance.

• Designed for fast and easy installation, ideal for new construction and retrofit projects.
• Direct-drive fan with aluminum fan blades provides efficient and quiet operation.
• Made with high-quality galvanized steel with a powder-paint finish for higher corrosion resistance.

Product Highlights

This Daikin heat pump offers efficient and quiet operation, corrosion resistance, and easy installation for various commercial applications.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DSH0603D000001S
• Country of Origin: USA

Technical Specifications

• Brand: Daikin
• MPN: DSH0603D000001S
• Product Category: Light Commercial
• Product Class - (PIM): Light Commercial Packaged Heat Pump
• System Family: Light Commercial Packaged System
• Function Category: Heat Pump
• Product Type: Equipment
• Unit Type: Outdoor
• Market Type: Light Commercial
• Product Family: DSH060D
• Installation Type: Rooftop
• Communication Feature: No
• ISO Certified: Yes
• Universal Product Code (UPC): 663051710825.0
• Item Stocking Unit of Measure (UOM): EA
• Pallet Qty: 1.0
• Country of Origin: USA
• US HTS Code: 8415.82.0120
• Canadian HTS Code: 8415.82.99.22
• Cooling Capacity - (Nominal): 57500 Btu/H
• COP47 (HSVTC): 3.64
• EER (HSVTC): 11.8
• EER Ducted: 11.8
• ENERGY STAR® Certified: No
• Heating Capacity - (Nominal): 55000 Btu/H
• SEER (HSVTC): 13.7
• Total BTU/h: 57500 Btu/H
• Produced in US: Yes
• Product ID: DSH0603D000001S
• Compressor LRA: 155 A
• Compressor RLA: 17.3 A
• Indoor Blower FLA: 6.9 A
• Max Overcurrent Protection: 45/45 A
• Min. Circuit Amps: 30.5/30.5 A
• Power Frequency: 60 Hz
• Power Phase: 3 Ph
• Power Voltage: 208-230 V
• Total Unit Amps: 26 A
• Air Flow Rate (High) - Cooling: 1870 ft³/min
• Air Flow Rate (High) - Heating: 1870 ft³/min
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Condenser Coil Metal Type: Copper
• Condenser Coil Rows: 2.0
• Condenser Fan Blade Count: 4.0
• Condenser Fan Diameter: 22 in
• Condenser Fan RPM: 1122 r/min
• Condenser Fin Density - (Fins Per Inch): 20.0
• Dimensions - (Evap Wheel Diameter): 12 in
• Dimensions - (Evap Wheel Width): 11 in
• Dimensions - (Unit Depth): 74 in
• Dimensions - (Unit Height): 39-7/8 in
• Dimensions - (Unit Width): 48-5/16 in
• Energy Source: Electric
• ETL Listed: Yes
• Evap Coil Metal Type: Copper
• Evap Coil Rows: 4.0
• Evap Fin Density - (Fins Per Inch): 16.0
• Evap Motor RPM: 1200 r/min
• Expansion Device: TXV
• External Static Pressure - (Rated): 0.8
• Filter Size - (Max): 14 X 20 X 2
• Filter Size - (Min): 14 X 20 X 2
• Heat Exchanger Type: Air Cooled
• Motor Speed Type: Multi Speed ECM
• Number of Speeds: 5
• Sound Pressure (High) - Cooling: 79 dBA
• Sound Pressure (Super High) - Cooling: 79 dBA
• System High Pressure: 660 lb/in²
• System Low Pressure: 22 lb/in²
• Weight - (Unit): 596 lb
• Cooling Capacity - (Rated): 57500 Btu/H
• Heating Capacity - (Rated): 55000 Btu/H
• Sensible Heat Ratio - (S/T): 0.74
• Tonnage: 5 Ton
• Condensate Drain Outlet: 3/4 in
• Factory Std. Refrigerant Charge: 163 oz
• Pipe Size Gas: 7/8 in
• Pipe Size Liquid: 3/8 in
• Refrigerant Type: R-32
• Proposition 65 Label: Yes
• Carton Type: CTN
• Case Qty: 1.0
• Model Number(s): DSH0603D000001S
• Type: Heat Pump
• Cooling Btu: 57,500
• Heating Btu: 55,000
• Cooling Stage(s): 1
• Heating Stage(s): 1
• Compressor Stage: Single
• Electrical Phase(s): 3-Phase
• Amp(s): 45
• Maximum CFM: 1840
• Height (Inches): 39 7/8
• Length (Inches): 74
• Width (Inches): 48 5/16
• Series: DSH Series
• SEER2 Rating: 13.7
• Voltage Rating: 208/230 V
• Amperage Rating: 30 A
• HP Rating: 1 hp
• Rotational Speed: 1200 rpm
• Phase: 3 ph
• CFM Rating: 1870 cfm
• Number of Stages: 1
• Drive Type: Direct
• Motor Type: Direct Drive
• Material: Steel
• Finish: Galvanized/Powder-Painted
• SKU: DSH0603D000001S
• Refrigerant Charge: Pre-charged
• AHRI Certificate Number: 210643295
• Manufacturer: Daikin
• Replaces: DFH0603D000001S
• Additional Information: Uses four 14" x 20" x 2" filters
• HSPF2: 6.70
• Decibel Level (dBA): 79 Decibels
• Motor RPM: 1122
• Horsepower: .33 HP
• SEER2: 13.4
• Condenser Stages: Single Stage
• Electrical: 208/230v 3 Phase 60 Hz
• Three Phase: Three Phase
• Max Breaker Size: 40/40 Amps
• Min. Breaker Size: 28.9/28.9 Amps
