Daikin DSG2404DH00001S 20 Ton 14 IEER / 10.8 EER 400,000 Btu Commercial Gas Package Air Conditioner (460-3-60) DFG2404DH00001S

DAIKIN
Brand: DAIKIN
SKU: DSG2404DH00001S
Availability: In Stock

Ships via freight in 1-3 business days
$29,280.16
$29,280.16
LTL Delivery

This product weighs 2294 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

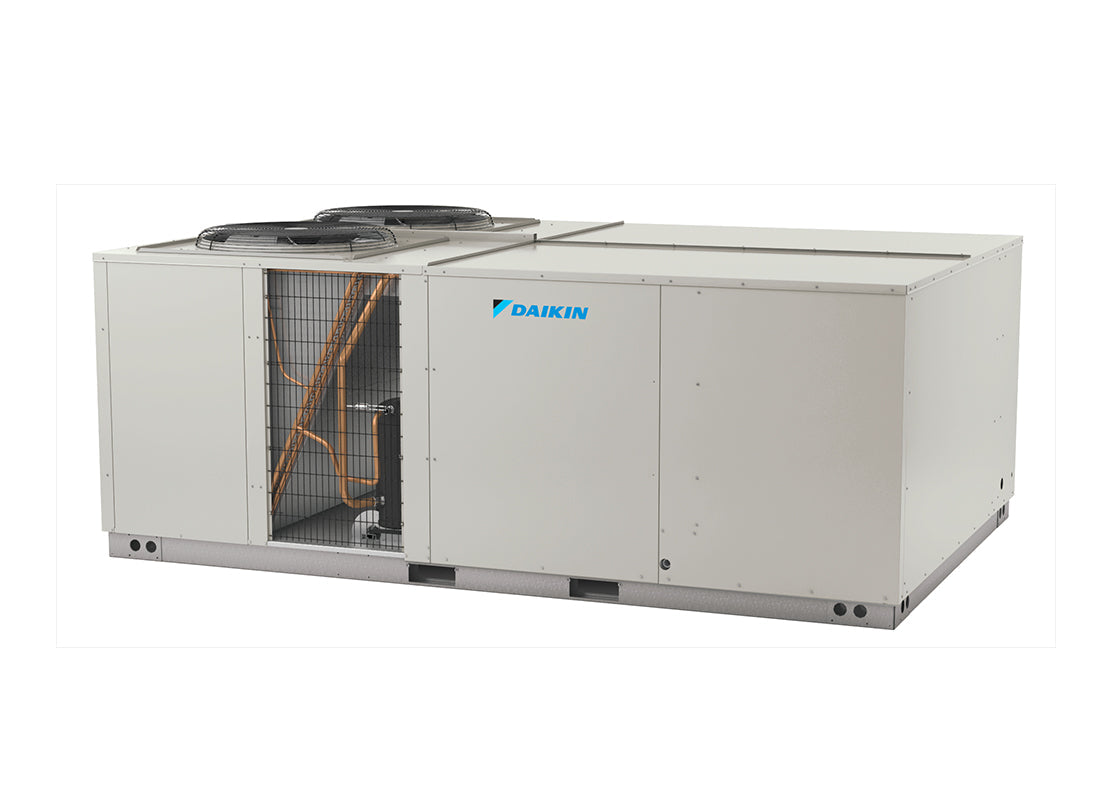

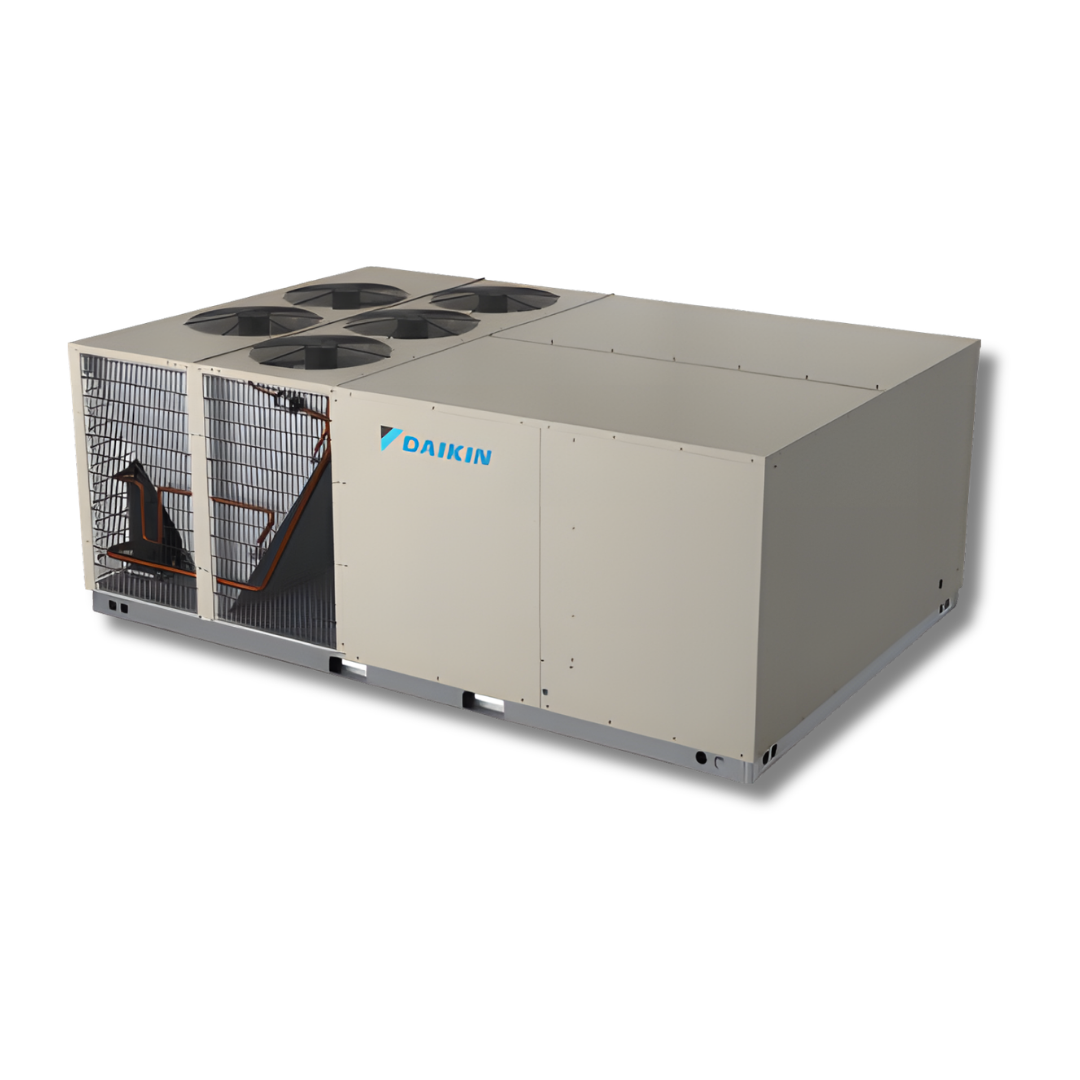

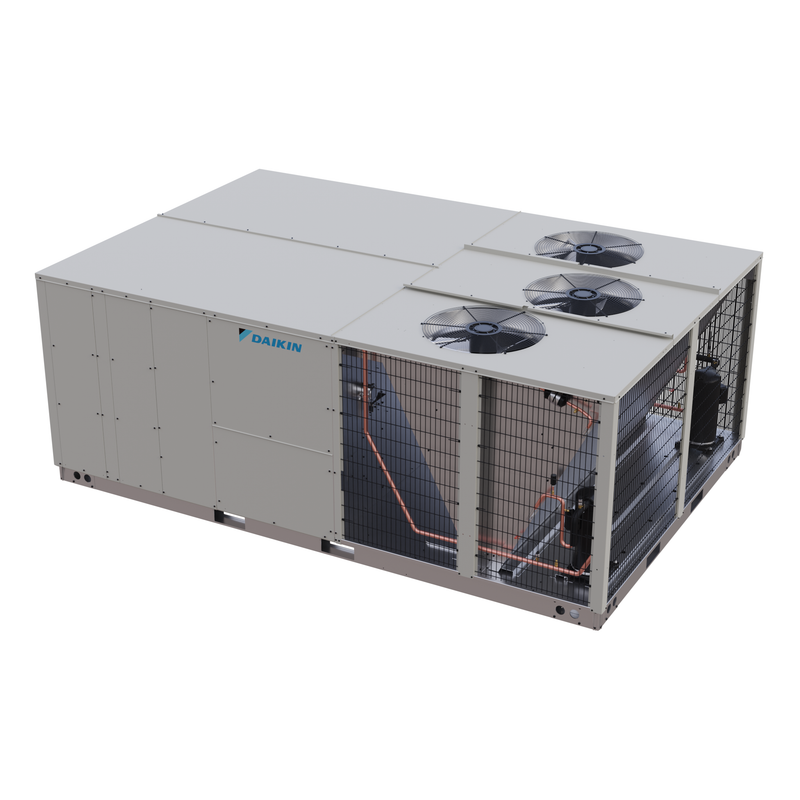

The Daikin DSG Commercial Gas Packaged Air Conditioner, MPN DSG2404DH00001S, offers energy-efficient cooling performance in one self-contained unit. Designed for fast and easy installation, it is ideal for both new construction and retrofit projects. This packaged rooftop unit is built as a direct replacement for most rooftop units without needing a curb adapter.

  • High performance, low noise scroll compressors with stage control
  • Resiliently factory-mounted on rubber grommets for vibration isolation
  • Refrigeration circuit includes both high and low pressure safety switches

Product Highlights

This Daikin packaged unit features easy installation and is ideal for new construction and retrofit projects. It provides efficient cooling performance in a self-contained unit.

Product Information

Standard Information

  • Brand: DAIKIN
  • Manufacturer Part Number: DSG2404DH00001S
  • Country of Origin: Japan
Technical Specifications
Model Number (s)
DSG2404DH00001S
Brand
Daikin
Type
Gas Heat
Ton
20.0 Ton
Cooling Btu
230,000 BTU
Cooling Stage(s)
2
Compressor Stage
Single
Electrical Phase(s)
3-Phase
Refrigerant Type
R-32
Amp(s)
60 amps
Voltage
460 V
Maximum CFM
6500
Compressor Type
Scroll
Power Source
Gas, ELECTRIC
Year Manufactured
2023
Power Phase
3 Ph
Country of Origin
Japan
Refrigerant
R-32
Power Frequency
60 Hz
Energy Source
Gas
Function Category
Light Commercial Packaged Gas/Electric
Heating BTU
400,000 BTU
Drive Type
Direct
Decibel Level (dBA)
92.1 decibels
Motor RPM
300-1600
Horsepower
.5 HP
Configuration
Downflow
EER
10.8
IEER
14
Condenser Stages
Single Stage
Electrical
460 V. 3 Phase 60 Hz
Phase
Three Phase
Max Breaker Size
60 amps
Min. Breaker Size
53.2 amps
Tonnage
20 Ton
Burner Stages
Modulating
Replaces
DFG2404DH00001S
Additional Information
Uses eight 20" x 20" x 2" filters
