Product Description

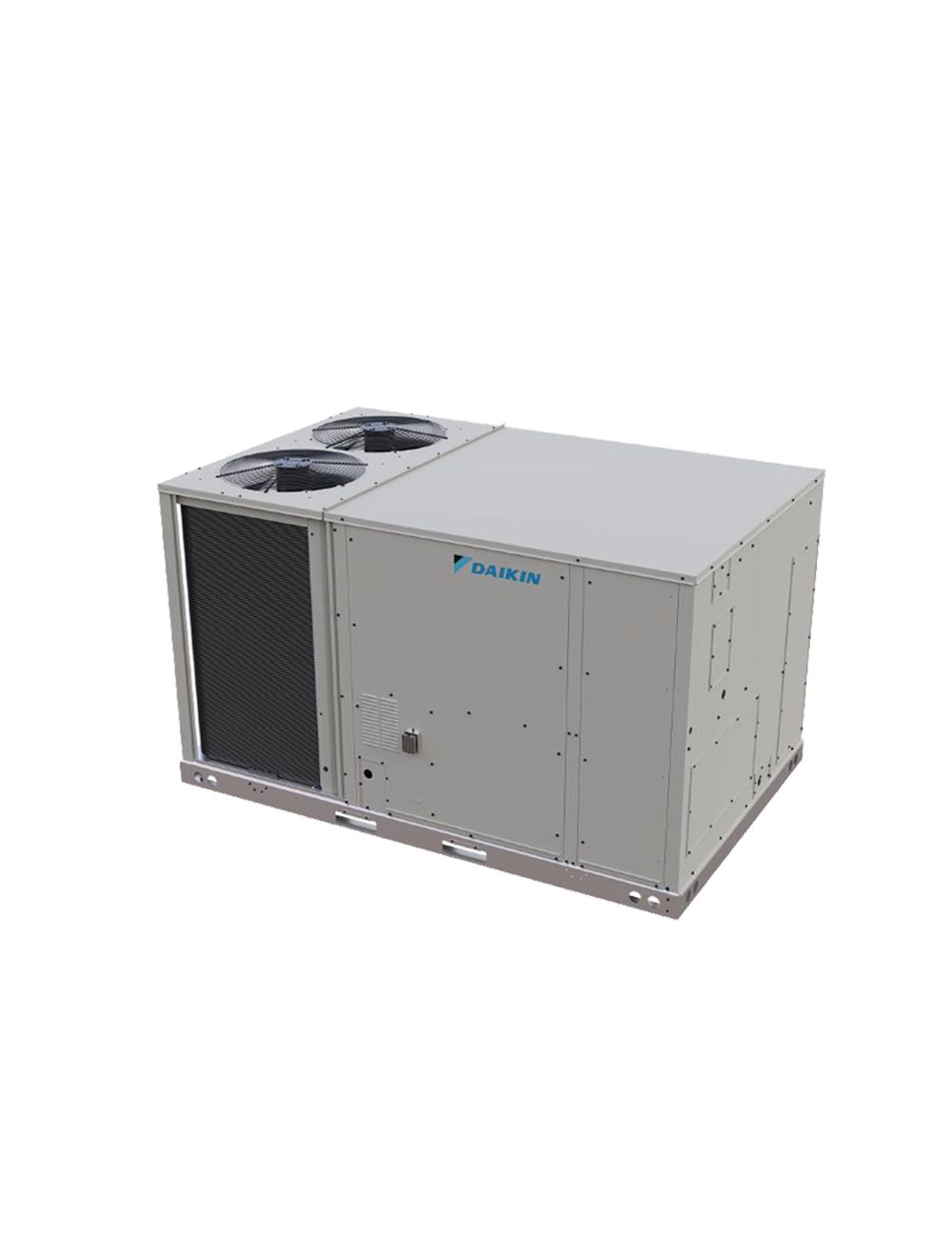

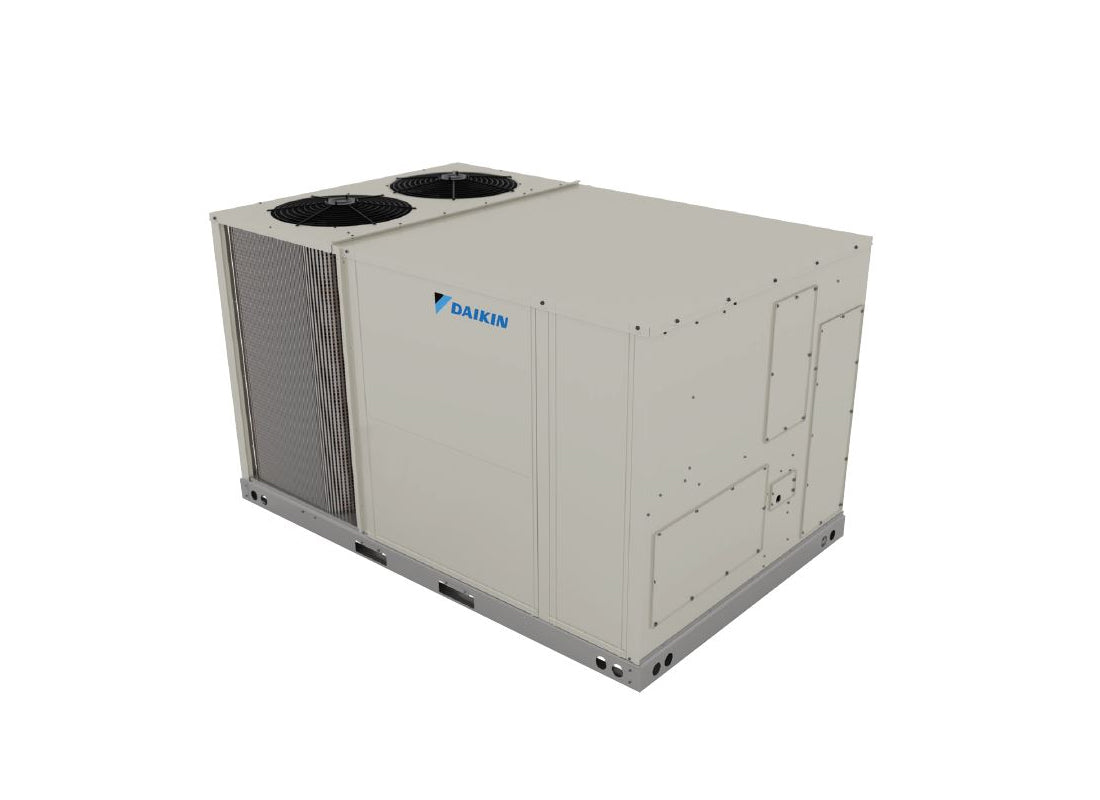

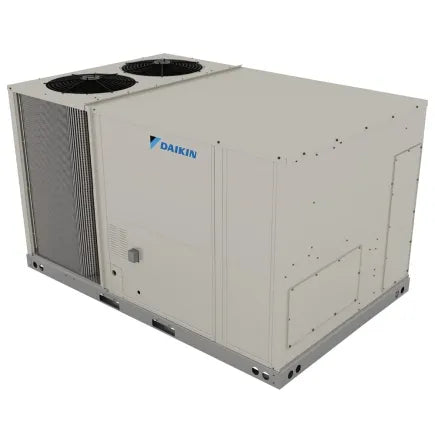

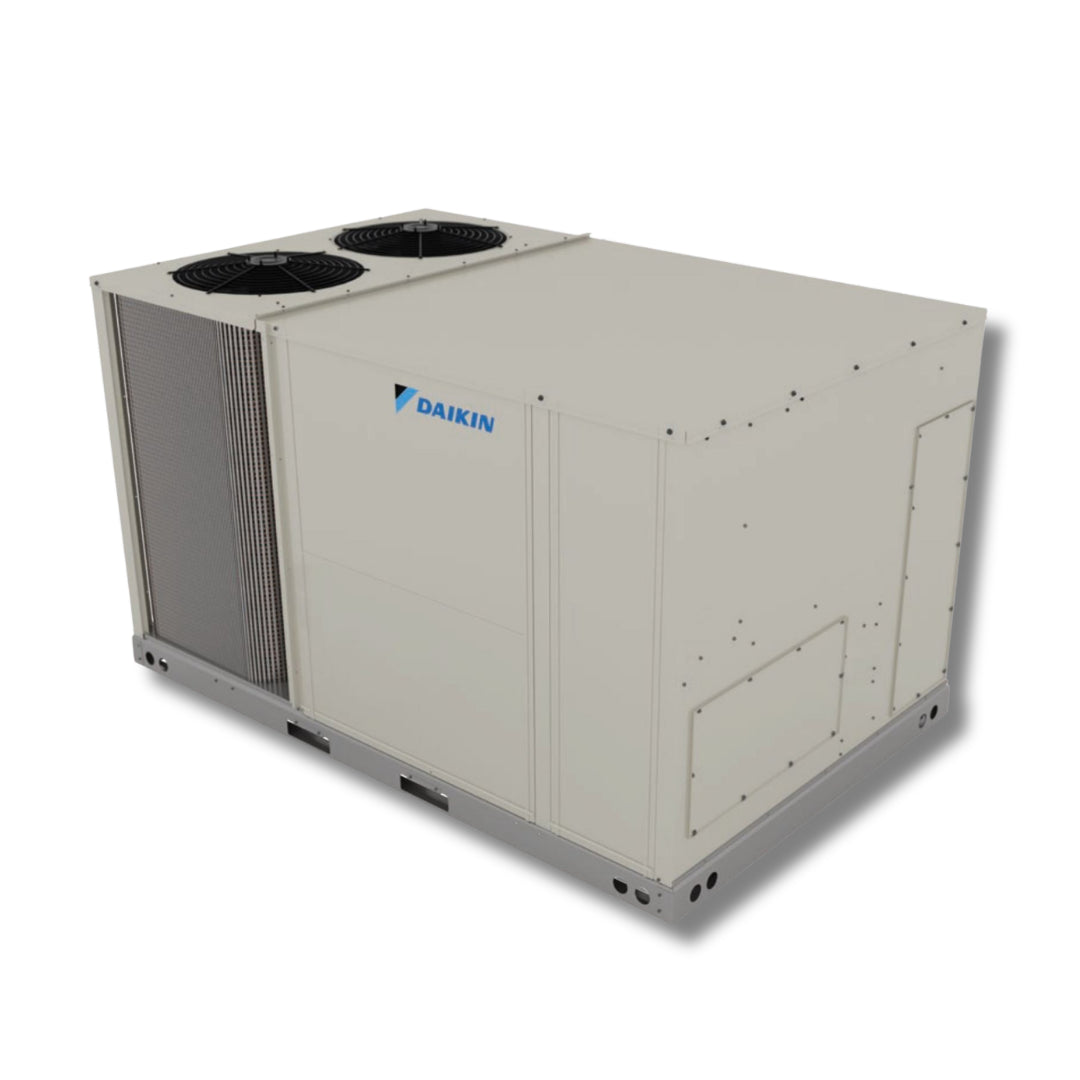

The Daikin DSG1503DM00001S light commercial packaged gas/electric units are rooftop high capacity units. They offer reliable cooling and gas heating performances all in one packaged solution. Designed for 208/230V three phase power and advanced R32 refrigerant, the DSG1503DM00001S supports balanced airflow distribution, maintaining stable operation and providing consistent year-round comfort.
- Direct Drive ECM motor
- High- and low-pressure switches
- Convertible airflow orientation
Product Highlights
Excellent for light commercial spaces requiring a complete all-in-one HVAC solution, including warehouses, hospitality, retail centers, and commercial buildings.
Product Information
Standard Information
-
Brand: DAIKIN
-
Manufacturer Part Number: DSG1503DM00001S
Technical Specifications
-
MPN: DSG1503DM00001S
-
Brand: Daikin
-
Product Category: Light Commercial
-
Product Class - (PIM): Light Commercial Packaged Gas/Electric
-
System Family: Light Commercial Packaged System
-
Function Category: Heating Only
-
Product Type: Equipment
-
Unit Type: Outdoor
-
Market Type: Light Commercial
-
Product Family: DSG150D
-
Family Description: 12.5 Ton Light Commercial Packaged Gas Electric
-
Product Benefits: Direct Drive ECM motor
-
Product Features - (Standard): High- and low-pressure switches
-
Cabinet Features: Convertible airflow orientation
-
Installation Type: Rooftop
-
Communication Feature: No
-
ISO Certified: Yes
-
Energy Source: Gas
-
Produced in US: No
-
Product ID: DSG1503DM00001S
-
Power Frequency: 60 Hz
-
Power Phase: 3 Ph
-
Power Voltage: 208-230 V
-
Proposition 65 Label: Yes
-
Carton Type: CTN
-
Case Qty: 1.0
-
Dimensions - (Case Depth): 94.50 in
-
Dimensions - (Case Height): 57.75 in
-
Dimensions - (Case Width): 61.00 in
-
Dimensions - (Pallet Depth): 94.50 in
-
Dimensions - (Pallet Height): 57.75 in
-
Dimensions - (Pallet Width): 61.00 in
-
Dimensions - (Shipping Unit Depth): 94.50 in
-
Dimensions - (Shipping Unit Height): 57.75 in
-
Dimensions - (Shipping Unit Width): 61.00 in
-
Shipping Volume - (Unit): 332572.000 in
-
Volume - (Case): 332572.000 in
-
Weight - (Case): 1302.000 lb
-
Weight - (Shipping Unit): 1302.000 lb
-
Release Status: Active
-
Refrigerant: R-32
-
Tonnage: 12.5 Ton
-
Voltage Requirements: 208V/230V
-
Cooling Capacity: 6+ Ton
-
Air Flow Direction: Downflow, Horizontal
-
EER: 12
-
Electrical Phase: 3-Phase
-
Primary Heating Capacity: 145,001+ BTU
-
Region Compatibility: Nationwide
-
Model Number (s): DSG1503DM00001S
-
Type: Standard Efficiency
-
Cooling Btu: 140,000
-
Cooling Stage(s): 2
-
Compressor Stage: Single
-
UPC #: 633190264640
-
Amp(s): 70
-
Maximum CFM: 4,200
-
Frequency Rating: 60 Hz
-
Horse Power: 1/2 hp Condenser Motor
-
Nominal Heating Capacity: 180 kBtu/hr
-
Sound Rating: 78.5 dB
-
Material: Steel
-
Phase: 3 ph
-
Nominal RPM: 300 to 1600 rpm
-
Motor Speed: 300 to 1600 rpm
-
Filter Size: 20 x 25 x 2 in, 25 x 25 x 2 in
-
Capacity in Tons: 12.5
-
Minimum Circuit Amperage: 59.5 A
-
Compressor Number/Type: 1-Stage Scroll
-
Drive Type: Direct
-
AHRI Net Cooling Capacity: 140000 Btu/hr
-
Weight: 1244 lb
-
Compressor Type: 1-Stage Scroll
-
Maximum Circuit Amperage: 70 A
-
Motor Type: Direct Drive
-
Connection Size: 3/4 in
-
Blower Motor HP: 3-1/2 hp
-
Standards/Approvals: AHRI Certified, ANSI Z21.47, CSA 2.3, cETLus Intertek Listed
-
AHRI Number: None
-
Dimensions: 93-3/4" W x 60-3/8" D x 54-5/8" H
-
Parts Warranty: 5 year
-
Heat Exchanger Warranty: 20 year
