Product Description

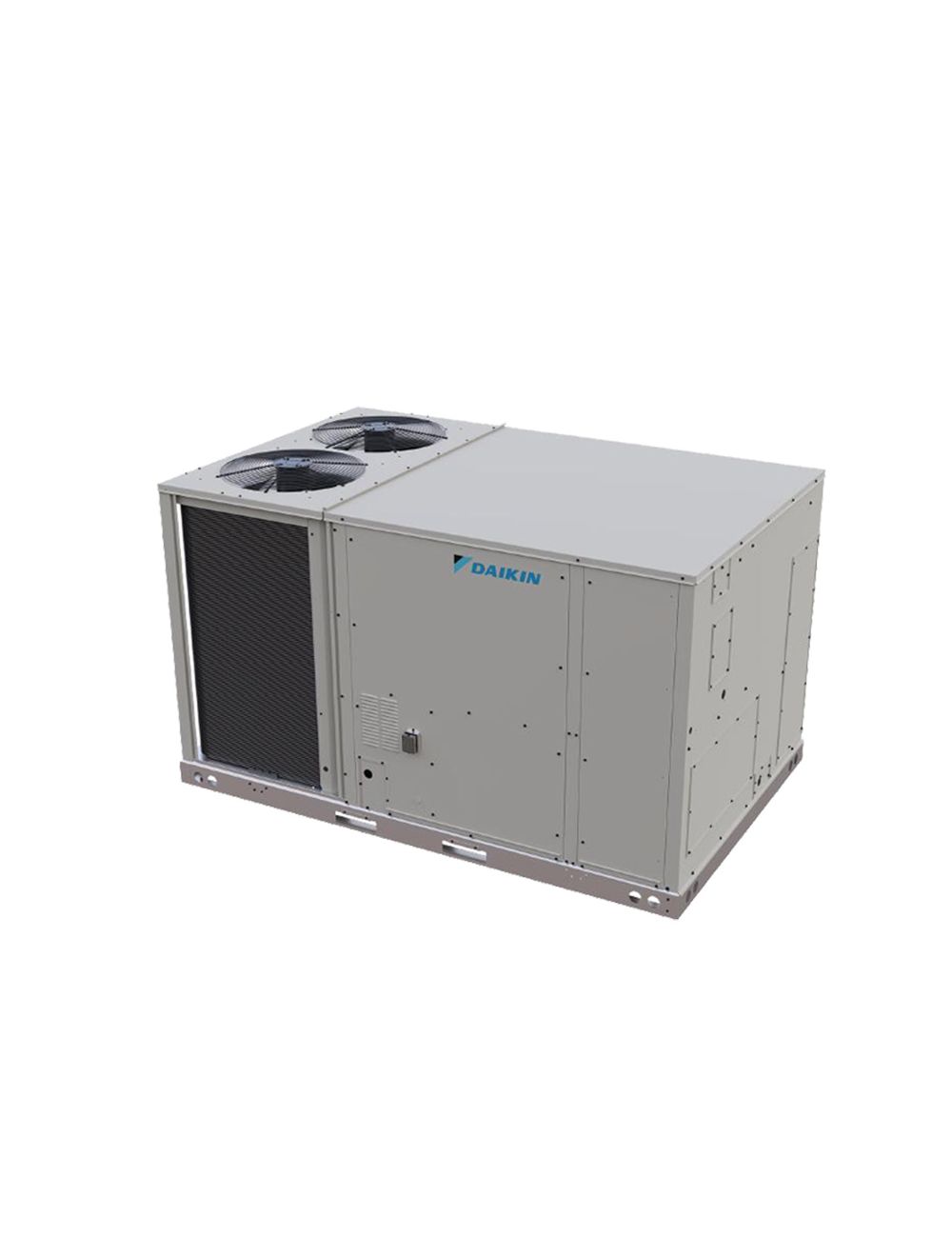

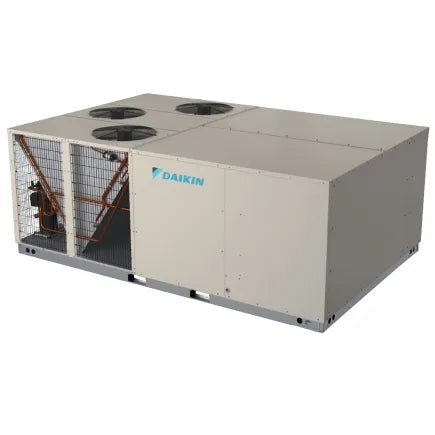

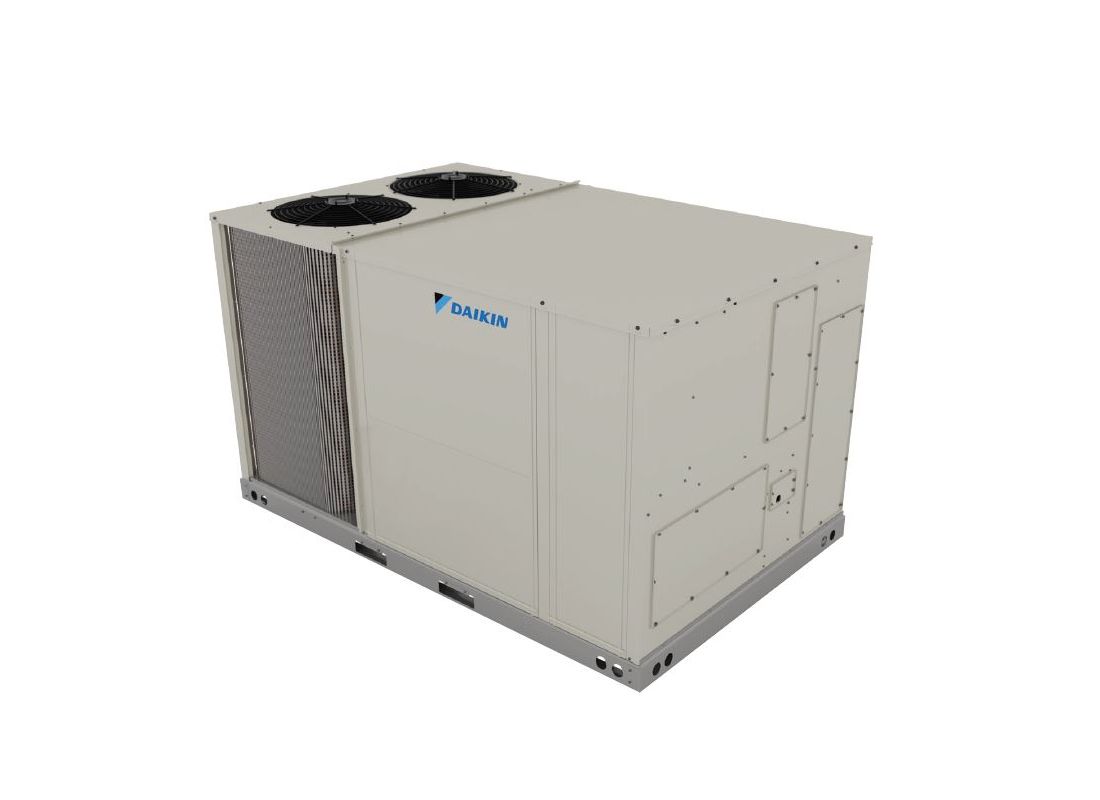

The DAIKIN DSG1503DH00001S is a 12.5 Ton light commercial packaged gas/electric unit designed for outdoor installation. This unit features a direct drive ECM motor and high- and low-pressure switches. It is suitable for rooftop installation and has a convertible airflow orientation. The system uses R32 refrigerant and operates at 208-230 V, 3 Phase, 60 Hz.
- Direct Drive ECM motor
- High- and low-pressure switches
- Convertible airflow orientation
Product Highlights
This DAIKIN gas/electric unit provides energy-efficient heating and cooling for light commercial applications. It offers easy installation and is designed for long-lasting performance.
Product Information
Standard Information
-
Brand: DAIKIN
-
Manufacturer Part Number: DSG1503DH00001S
Technical Specifications
-
MPN: DSG1503DH00001S
-
Brand: Daikin
-
Product Category: Light Commercial
-
Product Class - (PIM): Light Commercial Packaged Gas/Electric
-
System Family: Light Commercial Packaged System
-
Function Category: Heating Only
-
Product Type: Equipment
-
Unit Type: Outdoor
-
Market Type: Light Commercial
-
Product Family: DSG150D
-
Family Description: 12.5 Ton Light Commercial Packaged Gas Electric
-
Product Benefits: Direct Drive ECM motor
-
Product Features - (Standard): High- and low-pressure switches
-
Cabinet Features: Convertible airflow orientation
-
Installation Type: Rooftop
-
Communication Feature: No
-
ISO Certified: Yes
-
Item Stocking Unit of Measure (UOM): EA
-
Power Frequency: 60 Hz
-
Power Phase: 3 Ph
-
Power Voltage: 208-230 V
-
Energy Source: Gas
-
Proposition 65 Label: Yes
-
Carton Type: CTN
-
Case Qty: 1.0
-
Release Status: Active
-
Refrigerant Charge: Pre-charged
-
Replaces: DFG1503DH00001S
-
Additional Information: Uses two 20" x 25" x 2" and two 25" x 25" x 2" filters
-
Cooling BTU: 140,000 BTU
-
Heating BTU: 240,000 BTU
-
Drive Type: Direct
-
Maximum CFM: 4200
-
Decibel Level (dBA): 86.8 decibels
-
Motor RPM: 300-1600
-
Horsepower: .5 HP
-
Refrigerant: R32
-
EER: 11
-
IEER: 14.2
-
Condenser Stages: Single Stage
-
Compressor Type: Scroll
-
Max Breaker Size: 70/70 amps
-
Min. Breaker Size: 59.1/59.1 amps
-
Tonnage: 12.5 Ton
-
Burner Stages: Modulating
-
Cooling Stage(s): 2
-
Compressor Stage: Single
-
Voltage: 240
-
Electrical Phase(s): 3-Phase
-
Amp(s): 70
-
UPC: 633190264626
-
AHRI Number: 215440974
-
Air Flow Direction: Horizontal, Vertical
-
Avg Coverage Area: 3,000+ Sq Ft
-
Blower Motor: High Efficiency
-
Compressor: Two Stage
-
Cooling Capacity: 6+ Ton
-
Electrical Phase: 3-Phase
-
Gas Valve: Two Stage
-
Max Overcurrent Protection: 70 amps
-
Primary Heating Capacity: 145,001+ BTU
-
Region Compatibility: Nationwide
-
Air Flow: 4200 cfm
-
Nominal Cooling Capacity: 12.5 ton
-
Frequency Rating: 60 Hz
-
Nominal Heating Capacity: 240 kBtu/hr
-
Sound Rating: 78.5 dB
-
Material: Steel
-
Nominal RPM: 300 to 1600 rpm
-
Refrigerant Type: R-410A, R-32
-
Motor Speed: 300 to 1600 rpm
-
Filter Size: 20 x 25 x 2 in, 25 x 25 x 2 in
-
Minimum Circuit Amperage: 59.5 A
-
AHRI Net Cooling Capacity: 140000 Btu/hr
-
Maximum Circuit Amperage: 70 A
-
Motor Type: Direct Drive
-
Connection Size: 3/4 in
-
Blower Motor HP: 3-1/2 hp
-
Standards/Approvals: AHRI Certified, ANSI Z21.47, CSA 2.3, cETLus Intertek Listed
-
Model Number: DSG1503DH00001S
