Product Description

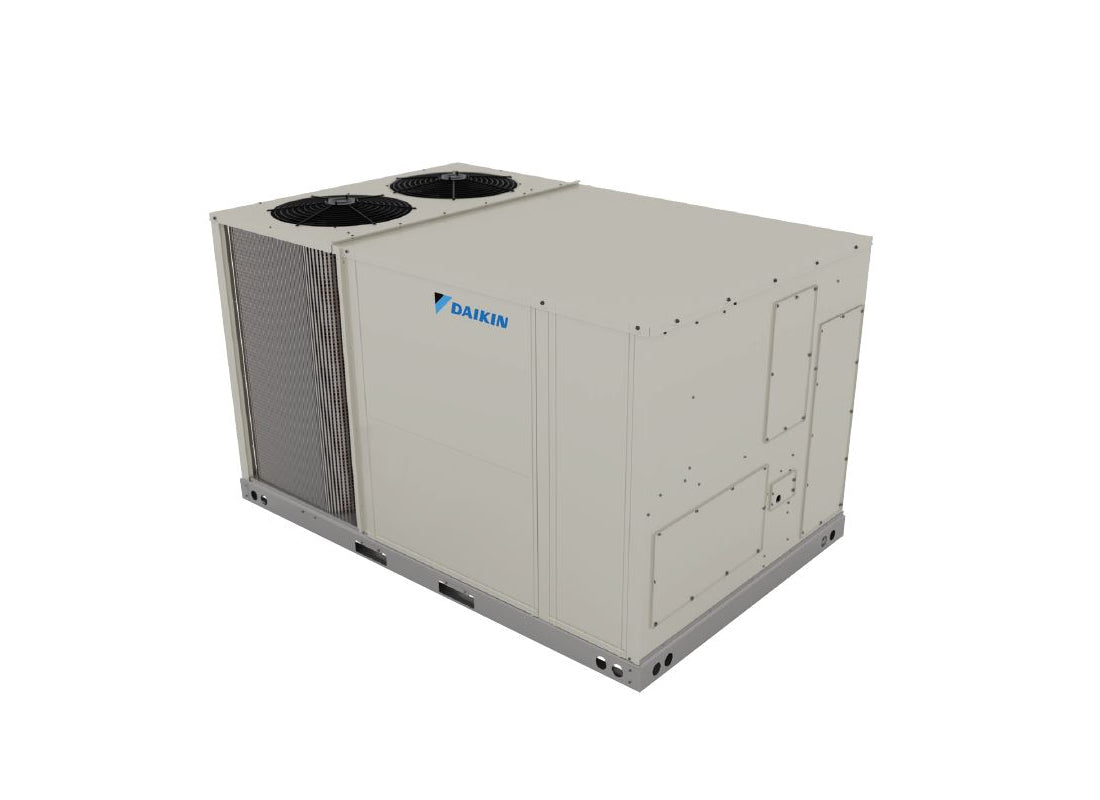

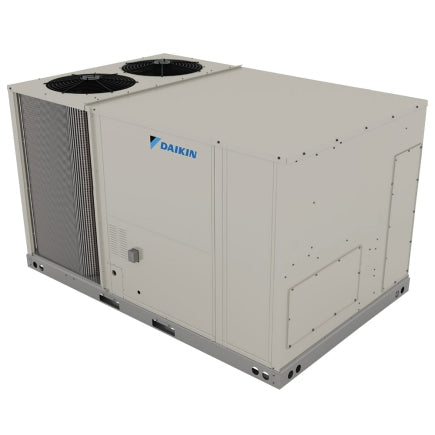

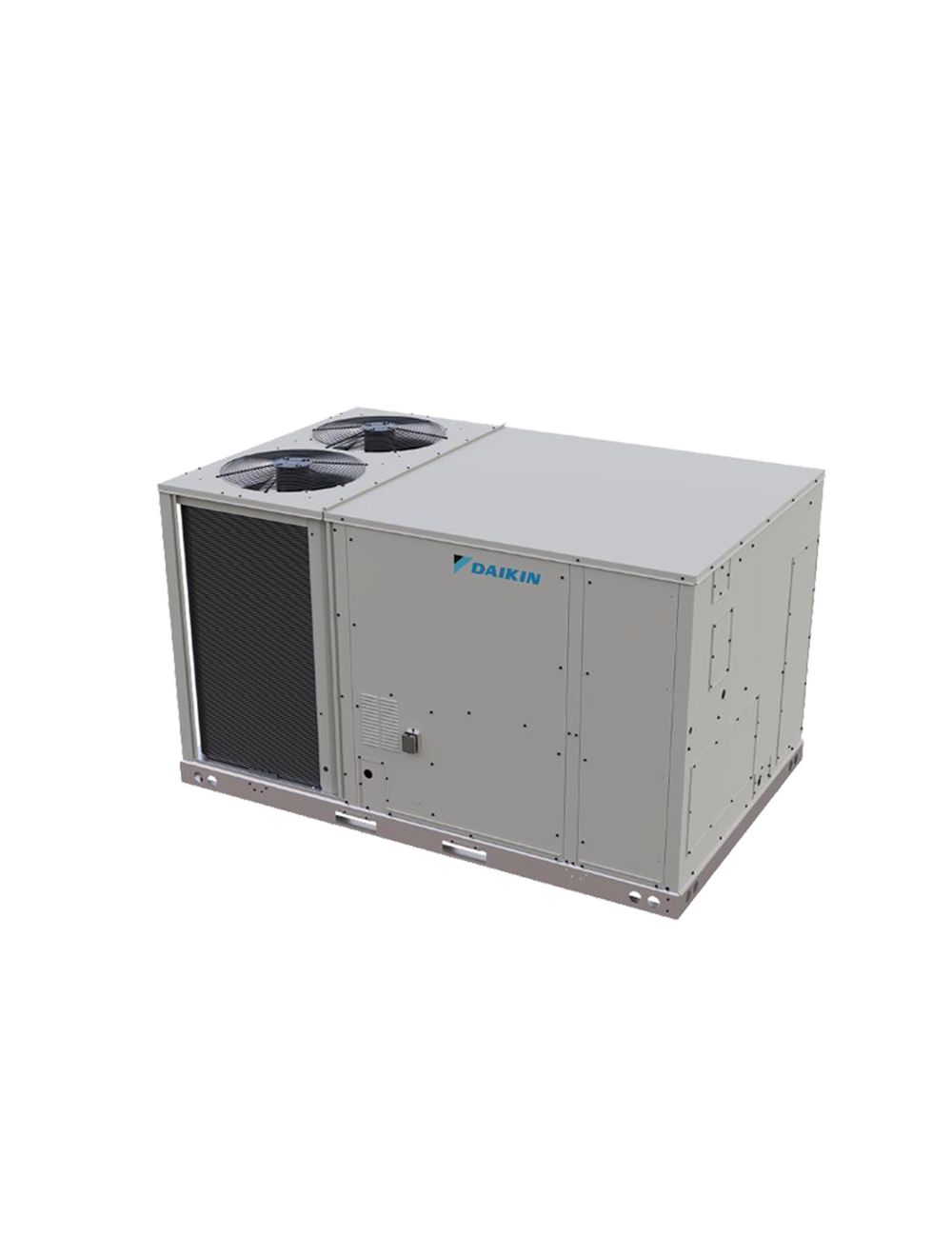

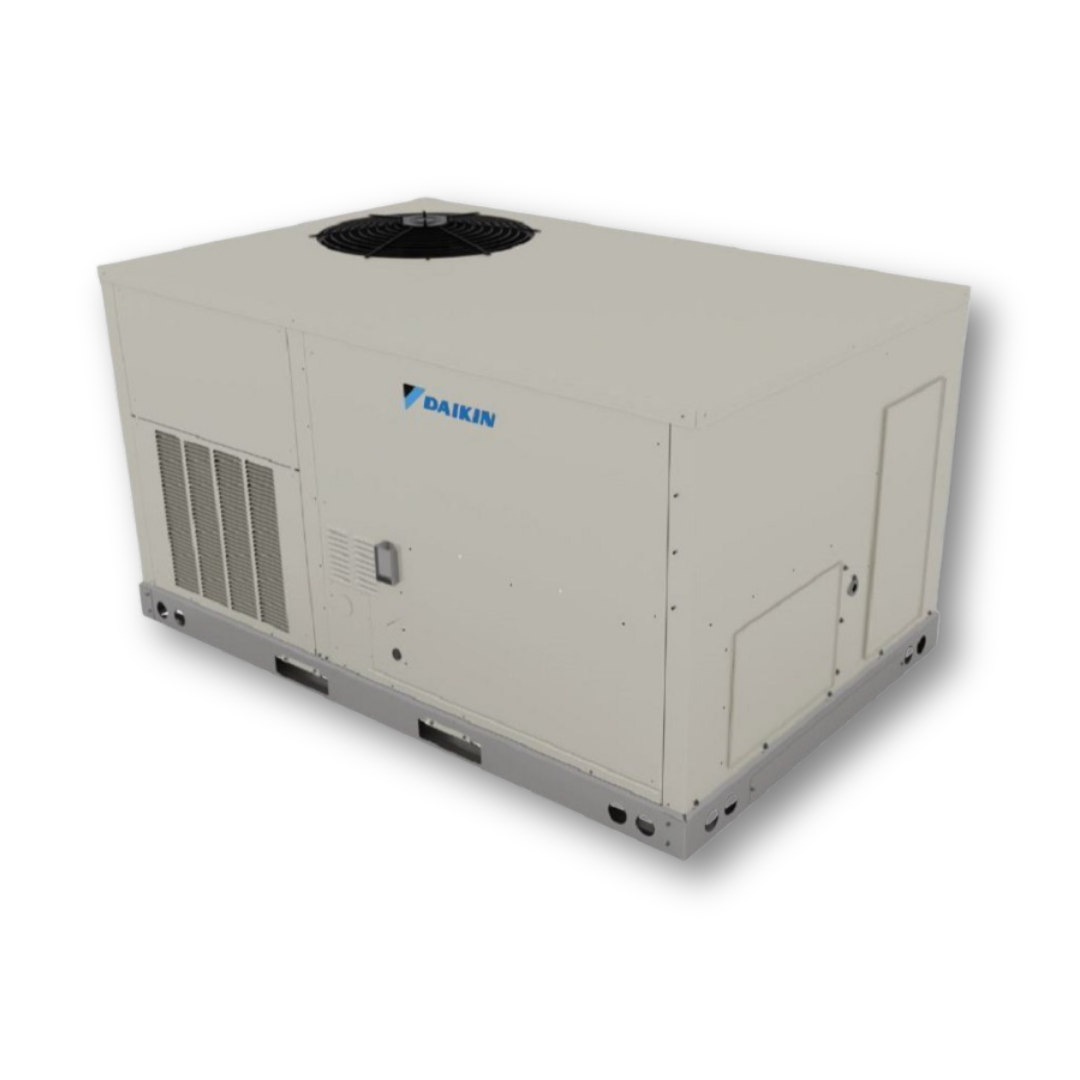

The DAIKIN DSG1203DM00001S is a 10 Ton air conditioner package unit. Earning both ETL listing and AHRI certification, this Daikin AC Package Unit has undergone rigorous third-party inspections. Able to keep spaces over 3000 square feet cool, this Daikin Unit won’t leave you or your employees sweating through hot outdoor temperatures.
- ETL listing
- AHRI certification
- Multiple high performance, low noise scroll compressors with internal overload protection
- Rubber grommets that keep vibrations from affecting the unit
- Direct drive EEM motors power the supply fans
Product Highlights
This 10 ton Daikin unit features multiple high performance, low noise scroll compressors with internal overload protection and direct drive EEM motors that power the supply fans.
Product Information
Standard Information
-
Brand: DAIKIN
-
Manufacturer Part Number: DSG1203DM00001S
Technical Specifications
-
Model: DSG1203DM00001S
-
AHRI Number: 215440968
-
Product Height (in): 54.625
-
Air Flow Direction: Downflow, Horizontal
-
Product Length (in): 93.75
-
Avg Coverage Area: 3,000+ Sq Ft
-
Product Width (in): 60.375
-
Blower Motor: High Efficiency
-
Compressor: Single Stage
-
Cooling Capacity: 6+ Ton
-
EER: 11.2
-
Electrical Phase: 3-Phase
-
Refrigerant: R-32
-
Voltage: 240
-
Region Compatibility: Nationwide
-
Package Unit: DSG1203DM00001S
-
Model Number: DSG1203DM00001S
-
Brand: Daikin
-
Type: Gas Heat
-
Ton: 10.0 Ton
-
Cooling Btu: 116,000
-
Cooling Stage(s): 2
-
Compressor Stage: Single
-
Electrical Phase(s): 3-Phase
-
UPC #: 633190264558
-
Amp(s): 70
-
Voltage Requirements: 208V/230V
-
Maximum CFM: 3,380
-
Height (Inches): 54 5/8
-
Length (Inches): 93 3/4
-
Width (Inches): 60 3/8
-
Series: DSG Series
-
EER Rating: 11.2
-
Air Flow: 3380 cfm
-
Nominal Cooling Capacity: 10 ton
-
Frequency Rating: 60 Hz
-
Horse Power: 1/3 hp Condenser Motor
-
Nominal Heating Capacity: 180 kBtu/hr
-
Sound Rating: 74.5 dB
-
Material: Steel
-
Finish: Galvanized/Powder-Painted
-
Phase: 3 ph
-
Nominal RPM: 300 to 1600 rpm
-
Motor Speed: 300 to 1600 rpm
-
Filter Size: (2) 20 x 25 x 2 in, (2) 25 x 25 x 2 in
-
Capacity in Tons: 10
-
Minimum Circuit Amperage: 53.8 A
-
Compressor Number/Type: 1-Stage Scroll
-
Drive Type: Direct
-
AHRI Net Cooling Capacity: 116000 Btu/hr
-
Weight: 1161 lb
-
Compressor Type: Scroll
-
Maximum Circuit Amperage: 70 A
-
Motor Type: Direct Drive
-
Connection Size: 3/4 in
-
Blower Motor HP: 3-1/2 hp
-
Standards/Approvals: AHRI Certified, ANSI Z21.47, CSA 2.3, cETLus Intertek Listed
-
Power Phase ( Single/Three): 3 Ph
-
Dimensions - (Shipping Unit Width): 60-3/8 in
-
Dimensions - (Shipping Unit Height): 54-5/8 in
-
Dimensions - (Shipping Unit Depth): 93-3/4 in
-
Power Frequency: 60 Hz
-
Energy Source: Gas
-
Function Category: Light Commercial Packaged Gas/Electric
