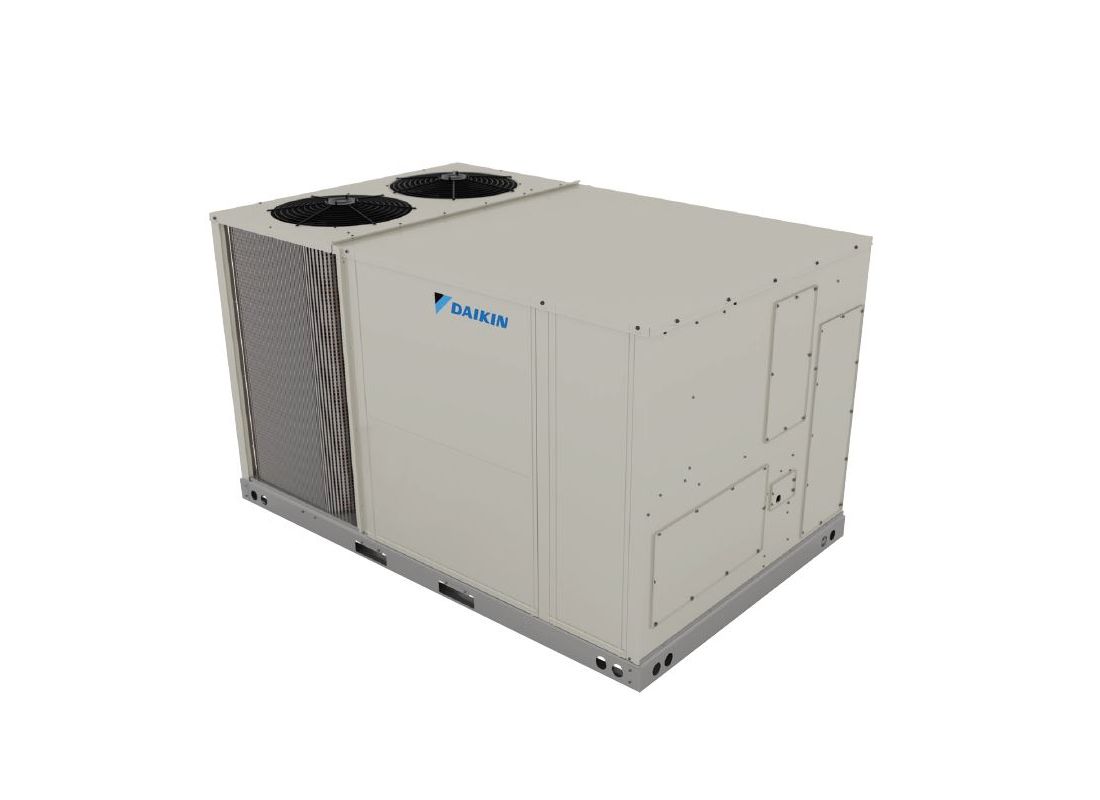

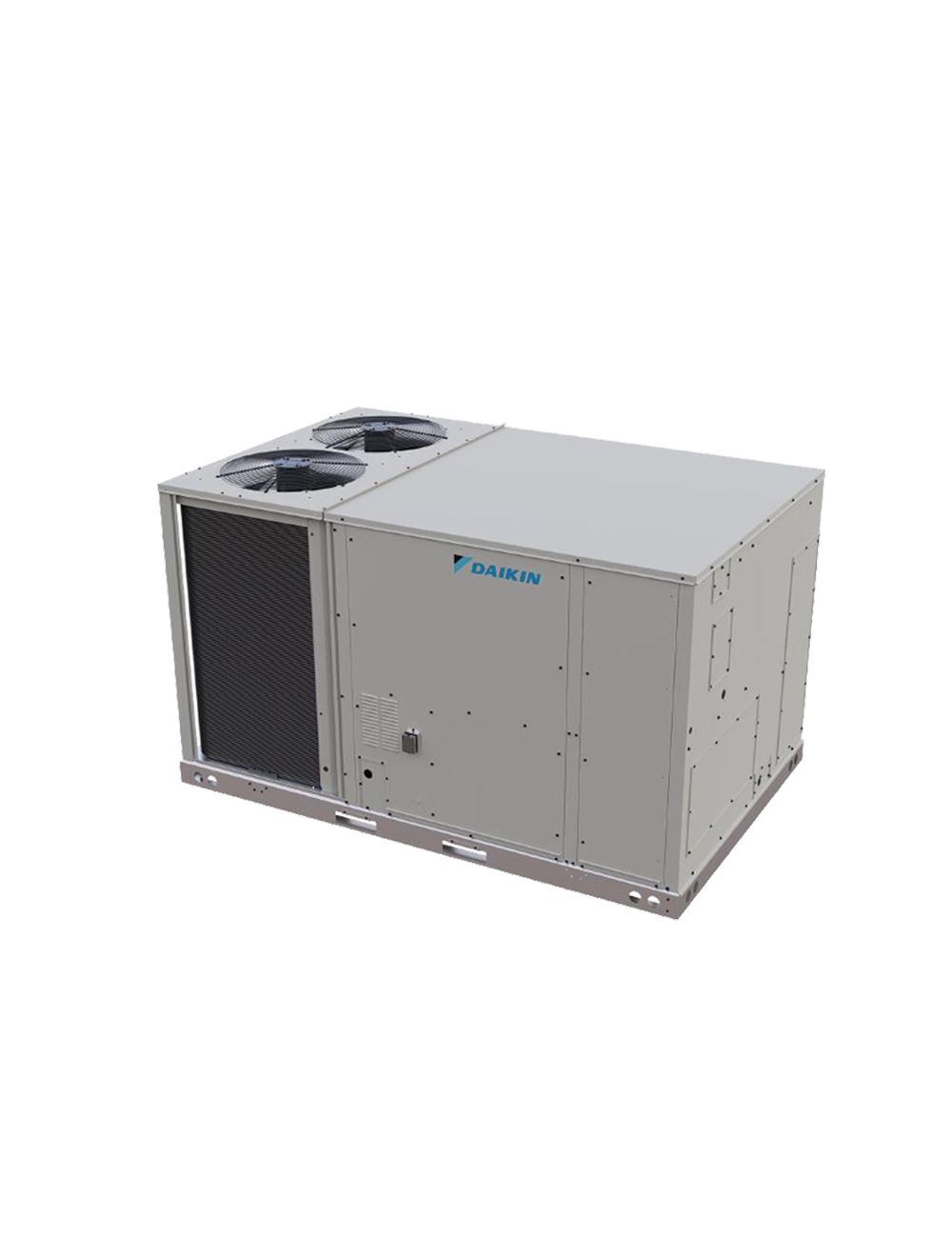

Daikin DSG1203DH00001S Light Commercial Packaged Gas/Electric 10 Ton

Product Description

The DAIKIN DSG1203DH00001S is a 10 Ton Light Commercial Packaged Gas/Electric unit designed for outdoor installation. Features include a direct drive ECM motor and convertible airflow orientation. This unit is ISO certified and made in the USA. It operates on 208-230 V, 3-Phase, 60 Hz power and uses R32 refrigerant.

• High- and low-pressure switches
• Direct Drive ECM motor
• Convertible airflow orientation

Product Highlights

The DSG1203DH00001S offers efficient heating and cooling for light commercial applications, with easy installation and long-lasting performance.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DSG1203DH00001S
• Country of Origin: USA

Technical Specifications

• MPN: DSG1203DH00001S
• Brand: Daikin
• Product Category: Light Commercial
• Product Class - (PIM): Light Commercial Packaged Gas/Electric
• System Family: Light Commercial Packaged System
• Function Category: Heating Only
• Product Type: Equipment
• Unit Type: Outdoor
• Market Type: Light Commercial
• Product Family: DSG120D
• Family Description: 10 Ton Light Commercial Packaged Gas Electric
• Product Benefits: Direct Drive ECM motor
• Cabinet Features: Convertible airflow orientation
• Installation Type: Rooftop
• Communication Feature: No
• ISO Certified: Yes
• Item Stocking Unit of Measure (UOM): EA
• Country of Origin: USA
• US HTS Code: 8415.82.0120
• Canadian HTS Code: 8415.82.99.22
• Product Description - (PIM): 10 Ton Light Commercial Packaged Gas Electric 208/230V 3PH 225K R32
• Produced in US: Yes
• Product ID: DSG1203DH00001S
• Power Frequency: 60 Hz
• Power Phase: 3 Ph
• Power Voltage: 208-230 V
• Energy Source: Gas
• Proposition 65 Label: Yes
• Carton Type: CTN
• Case Qty: 1.0
• Dimensions - (Case Depth): 94.50 in
• Dimensions - (Case Height): 57.75 in
• Dimensions - (Case Width): 61.00 in
• Shipping Volume - (Unit): 332899.875 in³
• Truck Factor: 0.0
• Volume - (Case): 332899.875 in³
• Weight - (Case): 1228.090 lb
• Weight - (Shipping Unit): 1228.090 lb
• Release Status: Active
• Refrigerant Charge: Pre-charged
• Replaces: DFG1203DH00001S
• Additional Information: Uses two 20" x 25" x 2" and two 25" x 25" x 2" filters
• Cooling BTU: 116,000 BTU
• Heating BTU: 240,000 BTU
• Drive Type: Direct
• Maximum CFM: 3380
• Decibel Level (dBA): 82.6 decibels
• Motor RPM: 300-1600
• Horsepower: .333 HP
• Refrigerant: R32
• EER: 11.2
• IEER: 14.8
• Condenser Stages: Single Stage
• Compressor Type: Scroll
• Electrical: 208 / 230 V. 3 Phase 60 Hz
• Phase: Three Phase
• Max Breaker Size: 70 Amps
• Min. Breaker Size: 50.1 Amps
• Tonnage: 10 Ton
• Burner Stages: Modulating
• Cooling Stage(s): 2
• Compressor Stage: Single
• Voltage: 208/230V
• Amp(s): 70
• SEER2 Rating: 14.8
• AFUE Heating: 81%
• Stages: Two-Stage
• Type: Gas/Electric Package Unit
