Daikin DSG0903DH00001S Light Commercial Packaged Gas/Electric 7.5 Ton Replaces DFG0903DH00001S

Product Description

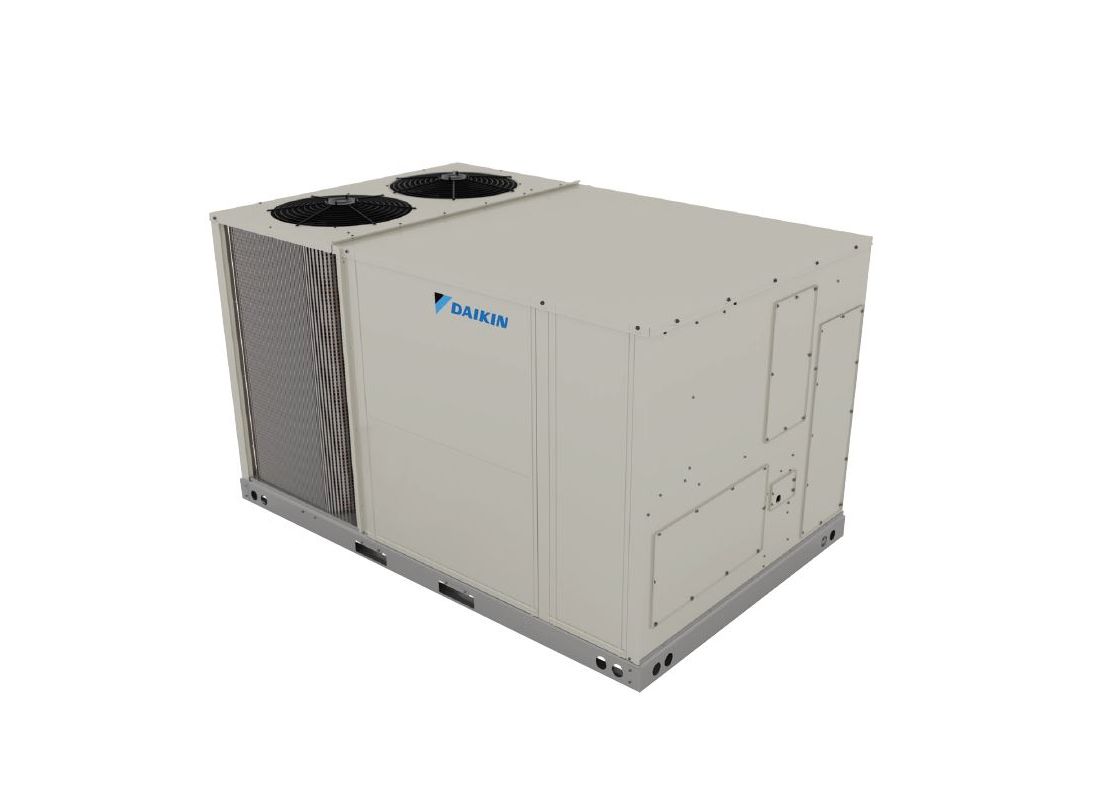

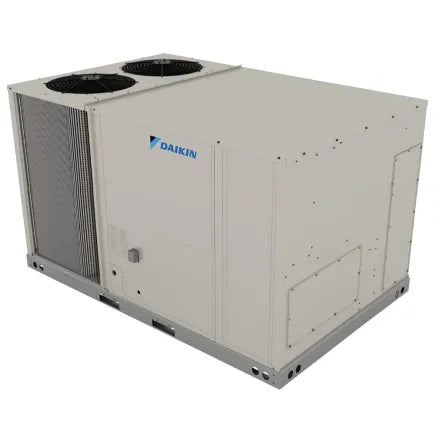

The DAIKIN DSG0903DH00001S is a light commercial packaged gas/electric unit designed for outdoor installation. This 7.5-ton unit features a direct drive ECM motor and convertible airflow orientation. Suitable for rooftop installations, it provides both heating and cooling with a 208-230 V, 3-phase power supply. The unit uses R32 refrigerant and is made in the USA.

• Features a direct drive ECM motor.
• Equipped with high- and low-pressure switches.
• Offers convertible airflow orientation.

Product Highlights

The DAIKIN DSG0903DH00001S is a versatile and efficient solution for light commercial heating and cooling needs.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DSG0903DH00001S
• Country of Origin: USA

Technical Specifications

• Brand: Daikin
• MPN: DSG0903DH00001S
• Product Category: Light Commercial
• Product Class - (PIM): Light Commercial Packaged Gas/Electric
• System Family: Light Commercial Packaged System
• Function Category: Heating Only
• Product Type: Equipment
• Unit Type: Outdoor
• Market Type: Light Commercial
• Product Family: DSG090D
• Family Description: 7.5 Ton Light Commercial Packaged Gas Electric
• Power Frequency: 60 Hz
• Power Phase: 3 Ph
• Power Voltage: 208-230 V
• Installation Type: Rooftop
• Energy Source: Gas
• Country of Origin: USA
• Refrigerant Charge: Pre-charged
• Replaces: DFG0903DH00001S
• Additional Information: Uses two 20" x 20" x 2" and two 20" x 25" x 2" filters
• Cooling BTU: 86,000 BTU
• Heating BTU: 225,000 BTU
• Drive Type: Direct
• Maximum CFM: 3020
• Decibel Level (dBA): 82.6 decibels
• Motor RPM: 300-1600
• Horsepower: .333 HP
• Refrigerant: R32
• SEER2 (Efficiency): 13.4
• EER: 11.2
• IEER: 14.8
• Condenser Stages: Single Stage
• Compressor Type: Scroll
• Phase: Three Phase
• Max Breaker Size: 50/50 Amps
• Min. Breaker Size: 41.6/41.6 amps
• Tonnage: 7.5 Ton
• Burner Stages: Modulating
• AHRI Number: 215440965
• Product Height (in): 54.6
• Product Length (in): 60.4
• Air Flow Direction: Horizontal, Vertical
• Product Width (in): 93.8
• Avg Coverage Area: 3,000+ Sq Ft
• Blower Motor: High Efficiency
• Cooling Capacity: 6+ Ton
• Electrical Phase: 3-Phase
• Gas Valve: Two Stage
• Max Overcurrent Protection: 50 amps
• Primary Heating Capacity: 85,001 - 90,000
• Cooling Btu: 90,000
• Cooling Stage(s): 2
• Compressor Stage: Single
• Amp(s): 50
• Refrigerant Type: R-32
• Air Flow: 3020 cfm
• Nominal Cooling Capacity: 7.5 ton
• Nominal Heating Capacity: 225 kBtu/hr
• Sound Rating: 68.7 dB
• Material: Steel
• Finish: Galvanized/Powder-Painted
• Nominal RPM: 300 to 1600 rpm
• Motor Speed: 300 to 1600 rpm
• Filter Size: (2) 20 x 20 x 2 in, (2) 20 x 25 x 2 in
• Capacity in Tons: 7.5
• Minimum Circuit Amperage: 39.4 A
• Compressor Number/Type: 1-Stage Scroll
• AHRI Net Cooling Capacity: 90000 Btu/hr
• Motor Type: Direct Drive
• Connection Size: 3/4 in
• Blower Motor HP: 2.4 hp
• Standards/Approvals: AHRI Certified, ANSI Z21.47, CSA 2.3, cETLus Intertek Listed
