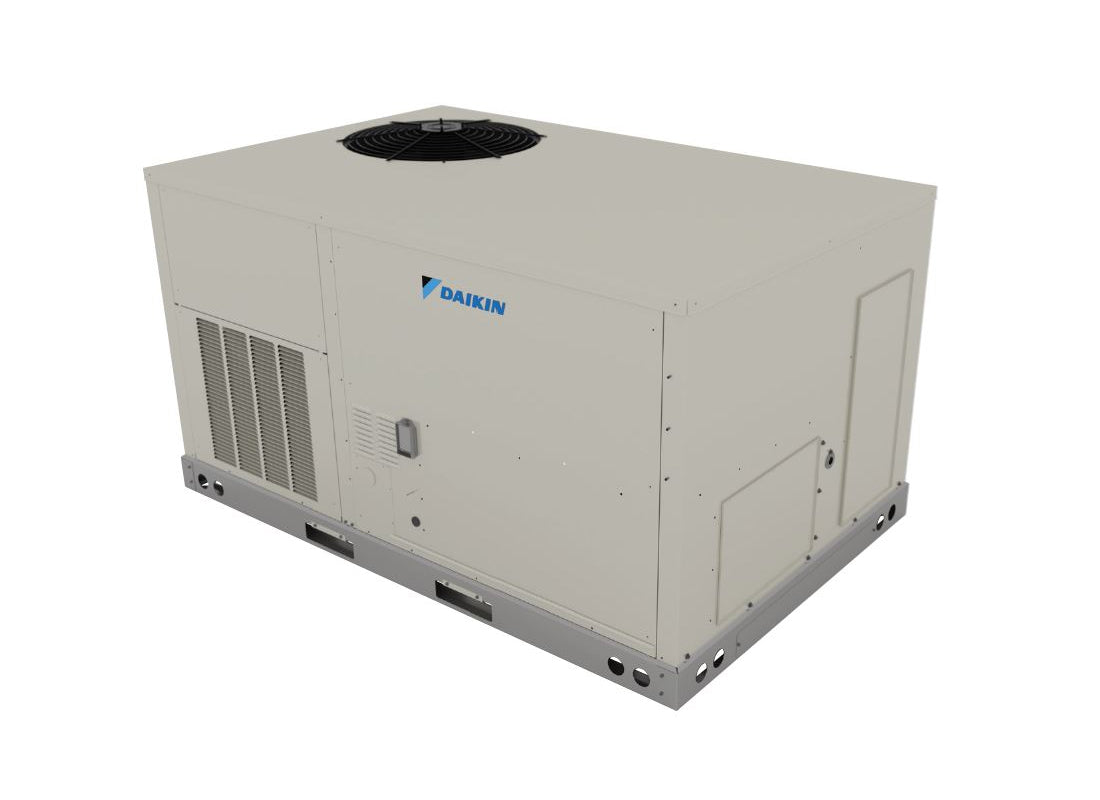

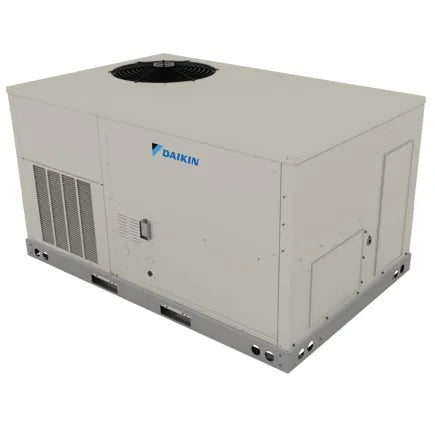

Daikin DSG0723DH00001S Light Commercial Packaged Gas/Electric 6 Ton

Product Description

The DAIKIN DSG0723DH00001S is a 6 Ton light commercial packaged gas/electric unit. Features include a contactor with lugs and a high-capacity, steel-cased filter drier. It has convertible airflow orientation and is easy to service with a bottom utility entry. The unit is equipped with high- and low-pressure switches and a high-efficiency Copeland scroll compressor.

• Convertible airflow orientation
• High-efficiency Copeland scroll compressor(s)
• Heavy-gauge, galvanized-steel cabinet

Product Highlights

This Daikin packaged gas/electric unit offers efficient cooling and heating for light commercial applications, with easy installation and service.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DSG0723DH00001S
• Country of Origin: USA

Technical Specifications

• MPN: DSG0723DH00001S
• Brand: Daikin
• Product Category: Light Commercial
• Product Class - (PIM): Light Commercial Packaged Gas/Electric
• System Family: Light Commercial Packaged System
• Function Category: Heating Only
• Product Type: Equipment
• Unit Type: Outdoor
• Market Type: Light Commercial
• Product Family: DSG072D
• AFUE: 80 %
• Cooling Capacity - (Nominal): 69000 Btu/H
• EER Ducted: 11.8
• ENERGY STAR® Certified: No
• Heating Capacity - (Nominal): 140000 Btu/H
• SEER (HSVTC): 16.7
• Total BTU/h: 69000 Btu/H
• Compressor LRA: 155 A
• Compressor RLA: 16.1 A
• Control Voltage Conduit Size: 0.5 in
• Indoor Blower FLA: 5 A
• Max Overcurrent Protection: 40 A
• Min. Circuit Amps: 27.2/27.2 A
• Outdoor Fan FLA: 2 A
• Outdoor Fan LRA: 4.4 A
• Power Frequency: 60 Hz
• Power Phase: 3 Ph
• Power Voltage: 208/230 V
• Total Unit Amps: 23 A
• Air Flow Rate (High) - Cooling: 2100 ft³/min
• Air Flow Rate (High) - Heating: 2100 ft³/min
• Compressor Quantitiy: 1.0
• Compressor Stages: Two Stage
• Compressor Type: Scroll
• Condenser Coil Metal Type: Aluminum
• Condenser Coil Rows: 1.0
• Condenser Fan Blade Count: 4.0
• Condenser Fan Diameter: 22 in
• Condenser Fan RPM: 1122 r/min
• Dimensions - (Evap Wheel Diameter): 12 in
• Dimensions - (Evap Wheel Width): 11 in
• Dimensions - (Unit Depth): 74 in
• Dimensions - (Unit Height): 43.5 in
• Dimensions - (Unit Width): 48.3125 in
• Energy Source: Gas
• ETL Listed: Yes
• Evap Coil Metal Type: Copper
• Evap Coil Rows: 3.0
• Evap Fin Density - (Fins Per Inch): 16.0
• Evap Motor RPM: 1500 r/min
• Expansion Device: TXV
• External Static Pressure - (Rated): 0.8
• Filter Size - (Max): 20 X 20 X 2
• Filter Size - (Min): 14 X 20 X 2
• Heat Exchanger Type: Air Cooled
• Number Of Burners: 6.0
• Number of Speeds: 5
• Motor Speed Type: Multi Speed ECM
• Sound Pressure (High) - Cooling: 79 dBA
• Sound Pressure (Super High) - Cooling: 79 dBA
• System High Pressure: 660 lb/in²
• System Low Pressure: 55 lb/in²
• Weight - (Unit): 626 lb
• Condenser Fan Horsepower: 1/3 metric hp
• Cooling Capacity - (Max): 69000 Btu/H
• Cooling Capacity - (Rated): 69000 Btu/H
• Evap Motor Horsepower: 1.2 metric hp
• Heating Capacity - (Max): 140000 Btu/H
• Heating Capacity - (Min): 140000 Btu/H
• Heating Capacity - (Rated): 140000 Btu/H
• High-Fire Input Capacity: 140000 Btu
• High-Fire Output Capacity: 112000
• Low-Fire Input Capacity: 105000.0
• Low-Fire Output Capacity: 84000.0
• Sensible Heat Ratio - (S/T): 0.72
• Tonnage: 6.0
• Condensate Drain Outlet: 3/4 in
• Factory Std. Refrigerant Charge: 83 oz
• Gas Valve Type: Two Stage
• Pipe Size Gas: 7/8 in
• Pipe Size Liquid: 3/8 in
• Refrigerant Type: R-32
• Proposition 65 Label: Yes
• Carton Type: CTN
• Case Qty: 1.0
• Dimensions - (Case Depth): 74.50 in
• Dimensions - (Case Height): 46.50 in
• Dimensions - (Case Width): 48.50 in
• Dimensions - (Pallet Depth): 74.50 in
• Dimensions - (Pallet Height): 46.50 in
• Dimensions - (Pallet Width): 48.50 in
• Dimensions - (Shipping Unit Depth): 74.50 in
• Dimensions - (Shipping Unit Height): 46.50 in
• Dimensions - (Shipping Unit Width): 48.50 in
• Shipping Volume - (Unit): 168016.125 in³
• Truck Factor: 0.0
• Volume - (Case): 168016.125 in³
• Weight - (Case): 679.000 lb
• Weight - (Shipping Unit): 679.000 lb
• Release Status: Active
• Cooling Stage(s): 2
• Compressor Stage: Two
• Electrical Phase(s): 3-Phase
• Amp(s): 40
• Voltage: 240
• Maximum CFM: 2,100
• Total Shipping Weight (lbs.): 706
• Product Height (in): 76
• Product Length (in): 73.375
• Air Flow Direction: Downflow
• Product Width (in): 47.625
• Avg Coverage Area: 3,000+ Sq Ft
• Blower Motor: High Efficiency
• Gas Valve: Single Stage
• Weight (lbs): 696.000000
• Primary Heating Capacity: 135,001 - 140,000 BTU
