Daikin DSG0603DH00001S Gas/Electric Packaged Unit 140000 Btu/hr 5 ton

Product Description

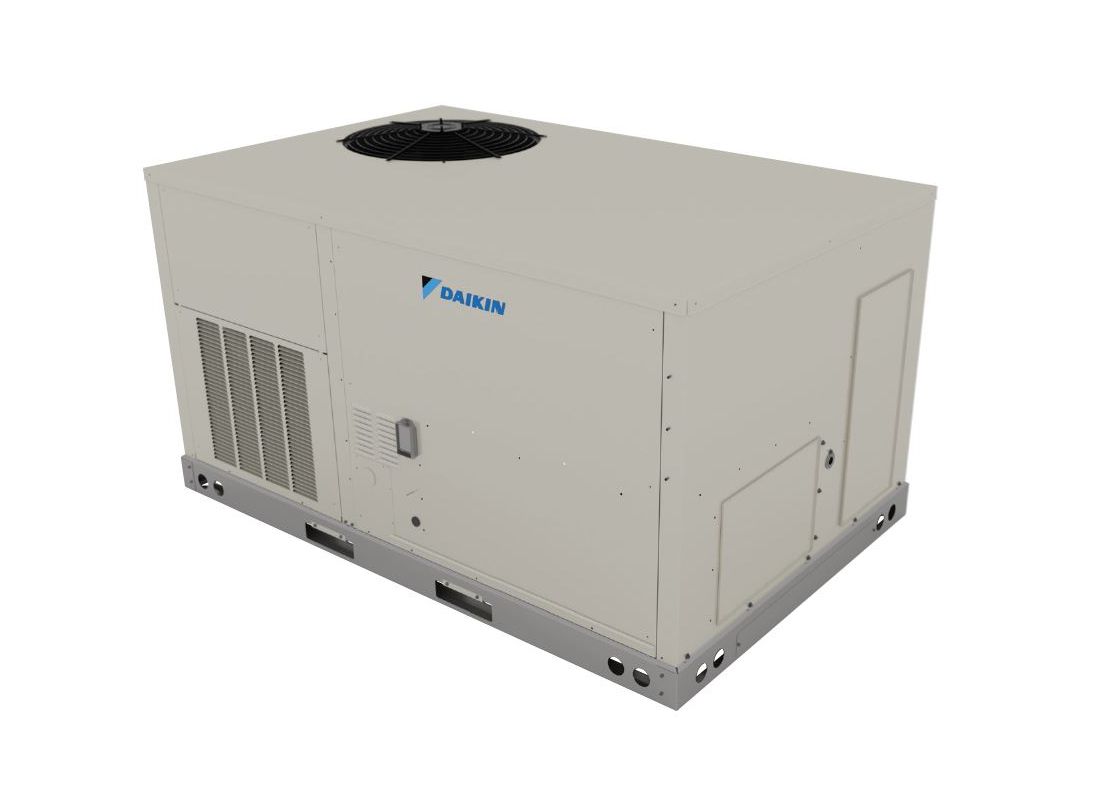

The DAIKIN DSG0603DH00001S is a gas/electric packaged unit with a heating capacity of 140000 Btu/hr and a cooling capacity of 57500 Btu/h. This unit features a patented tubular heat exchanger and a high-efficiency scroll compressor. It operates at 208/230 V and 60 Hz, with a 5 ton capacity. The unit is designed for rooftop mounting.

• Patented tubular heat exchanger
• High-efficiency scroll compressor
• High and low-pressure switches

Product Highlights

This DAIKIN packaged unit provides efficient cooling and heating performance in a self-contained design, ideal for commercial applications.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DSG0603DH00001S
• Country of Origin: Japan

Technical Specifications

• Series: DSG Series
• SEER2 Rating: 13.7
• Cooling BTU Rating: 57500 Btu/h
• Heating BTU Rating: 140000 Btu/h
• Tonnage: 5 ton
• Voltage Rating: 208/230 V
• Amperage Rating: 40 A
• Refrigerant Type: R-32
• Mounting Type: Rooftop
• HP Rating: 1 hp
• Rotational Speed: 1200 rpm
• Frequency Rating: 60 Hz
• Phase: 3 ph
• Compressor Type: Scroll
• CFM Rating: 1860 cfm
• Sound Level: 72 dBA
• EER Rating: 11.8 EER2
• Number of Stages: 1
• Drive Type: Direct
• Motor Type: Direct Drive
• Fins per Inch: 3 / 16
• Material: Steel
• Finish: Galvanized/Powder-Painted
• Model Number(s): DSG0603DH00001S
• Brand: Daikin
• Type: Gas Heat
• Cooling Btu: 57,500
• Cooling Stage(s): 1
• Compressor Stage: Single
• Afue: 81%
• Electrical Phase(s): 3-Phase
• Maximum CFM: 1,860
• BtuH Heating Output: 112,000
• Configuration: Downflow/Horizontal
• EER2: 11.8
• Max. Fuse Size: 40
• Min. Circuit Amps: 28.1
• Nom. CFM: 1,860
• Nom. Tons: 5
• Volts: 208/230
