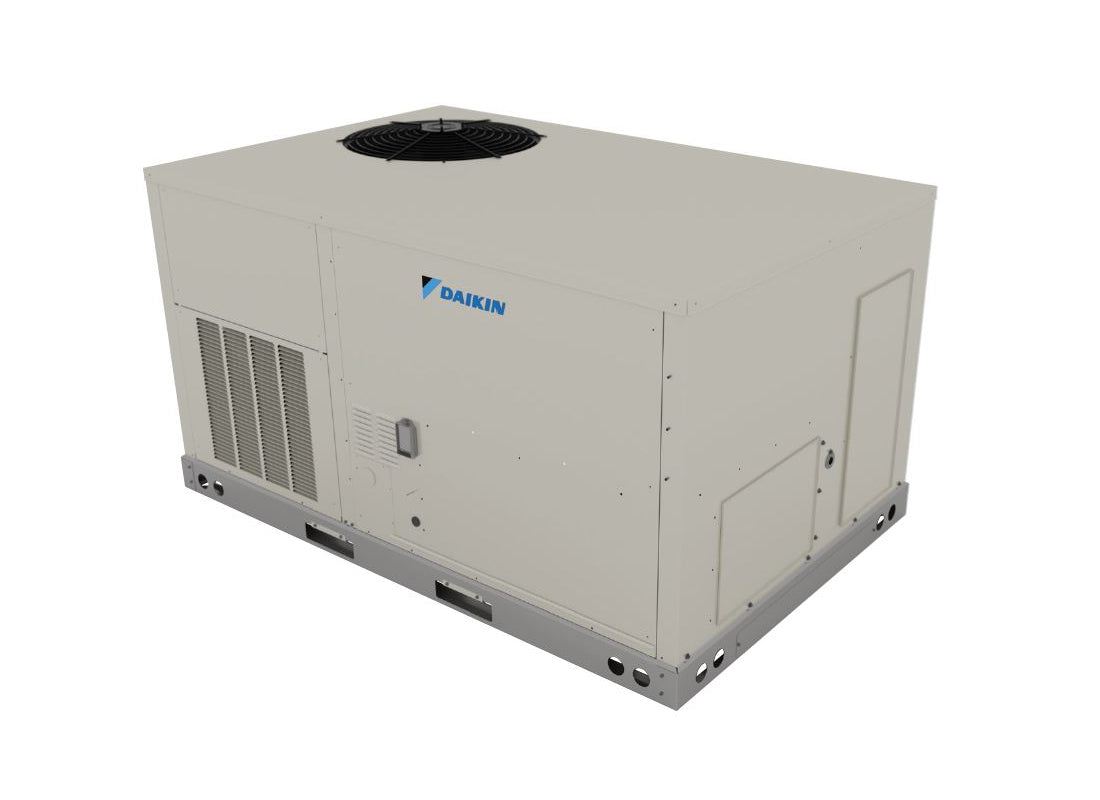

Daikin DSG0483DH00001S Light Commercial Packaged Gas/Electric 4 Ton

Product Description

The Daikin DSG0483DH00001S light commercial packaged gas/electric unit offers energy-efficient heating and cooling in one self-contained unit. Suitable for ground-level or rooftop installations and horizontal or downflow applications. Features a heavy-gauge, galvanized steel cabinet with UV-resistant powder-paint finish. Uses R-32 refrigerant and a high-efficiency Copeland scroll compressor.

• Features a contactor with lugs and a high-capacity, steel-cased filter drier.
• Offers convertible airflow orientation and easy service access.
• Includes high- and low-pressure switches and copper tube/aluminum fin coils.

Product Highlights

This Daikin packaged unit provides efficient and quiet operation for light commercial applications, ensuring comfortable indoor living with its robust design and reliable components.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DSG0483DH00001S
• Country of Origin: USA

Technical Specifications

• MPN: DSG0483DH00001S
• Brand: Daikin
• Product Category: Light Commercial
• Product Class - (PIM): Light Commercial Packaged Gas/Electric
• System Family: Light Commercial Packaged System
• Function Category: Heating Only
• Product Type: Equipment
• Unit Type: Outdoor
• Market Type: Light Commercial
• Product Family: DSG048D
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Evap Coil Metal Type: Copper
• Evap Coil Rows: 3.0
• Expansion Device: TXV
• Energy Source: Gas
• Refrigerant Type: R-32
• Gas Valve Type: Two Stage
• Power Frequency: 60 Hz
• Motor Speed Type: Variable Speed ECM
• EER: 11.5
• AHRI Certificate Number: 215414879
• SEER1 (Efficiency): 14-15
• SEER2 (Efficiency): 13.4
• Decibel Level (dBA): 78.4 decibels
• Replaces: DFG0483DH00001S
• Drive Type: Direct
• Electrical: 208 / 230 V. 3 Phase 60 Hz
• Additional Information: two 20" x 25" x 2" filters
• Cooling BTU: 47,000 BTU
• Heating BTU: 115,000 BTU
• Phase: Three Phase
• Condenser Stages: Single Stage
• Max Breaker Size: 35/35 amps
• Min. Breaker Size: 25.3/25.3 amps
• Tonnage: 4 Ton
• Afue: 81%
• Amp(s): 35
• Voltage: 208/230V
• Maximum CFM: 1,600
• Item Name: Packaged Gas/Electric Unit
• Series: DSG Series
• Type: Standard Efficiency
• Air Flow: 1600 cfm
• Nominal Cooling Capacity: 4 ton
• Horse Power: 1/3 hp Condenser Motor
• Nominal Heating Capacity: 115 kBtu/hr
• Sound Rating: 73 dB
• Material: Steel
• Finish: Galvanized/Powder-Painted
• Nominal RPM: 1200 rpm
• Motor Speed: 1200 rpm
• Filter Size: (2) 20 x 25 x 2 in
• Capacity in Tons: 4
• Minimum Circuit Amperage: 24.1 A
• Compressor Number/Type: 1-Stage Scroll
• AHRI Net Cooling Capacity: 46000 Btu/hr
• Maximum Circuit Amperage: 35 A
• Motor Type: Direct Drive
• Connection Size: 3/4 in
• Blower Motor HP: 1 hp
• Standards/Approvals: AHRI Certified, ANSI Z21.47, CSA 2.3, cETLus Intertek Listed
• Amperage Rating: 24.1 A
• HP Rating: 1 hp
• Rotational Speed: 1122 rpm
• CFM Rating: 1600 cfm
• Sound Level: 72 dBA
• Number of Stages: 1
• Coil Rating: 12.3 sq-ft
• Fuse Rating: 35 A
• Fins per Inch: 3 / 16
