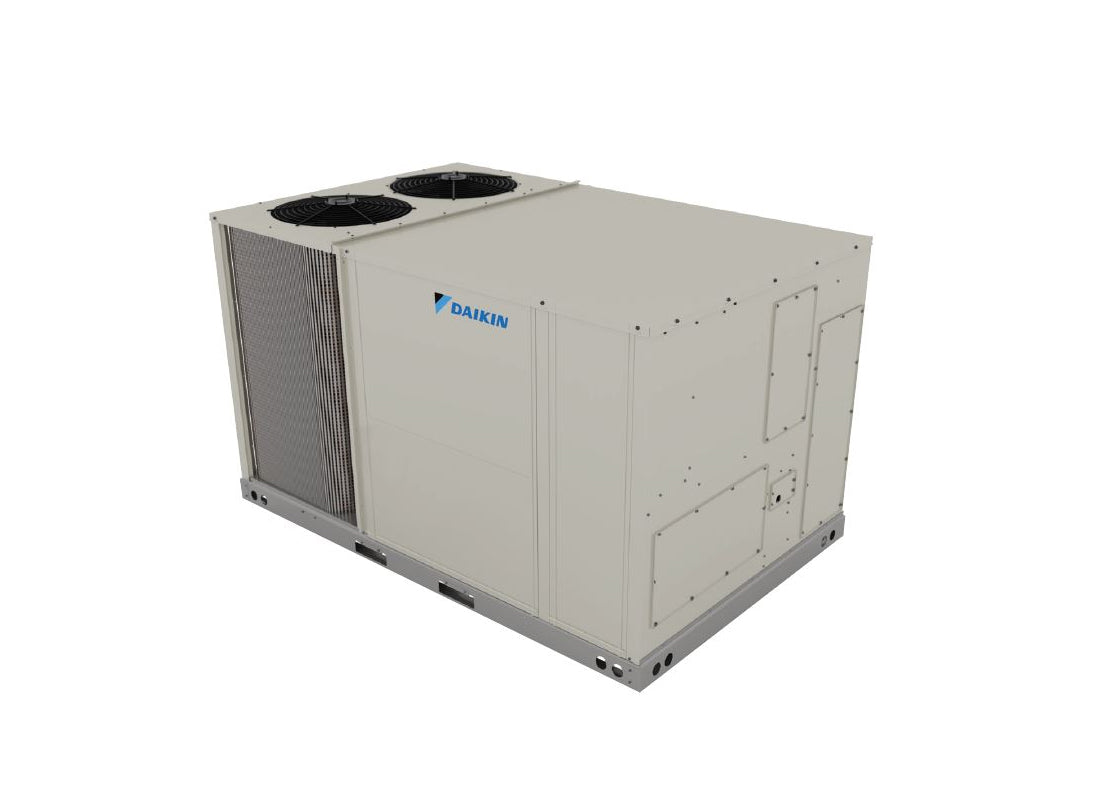

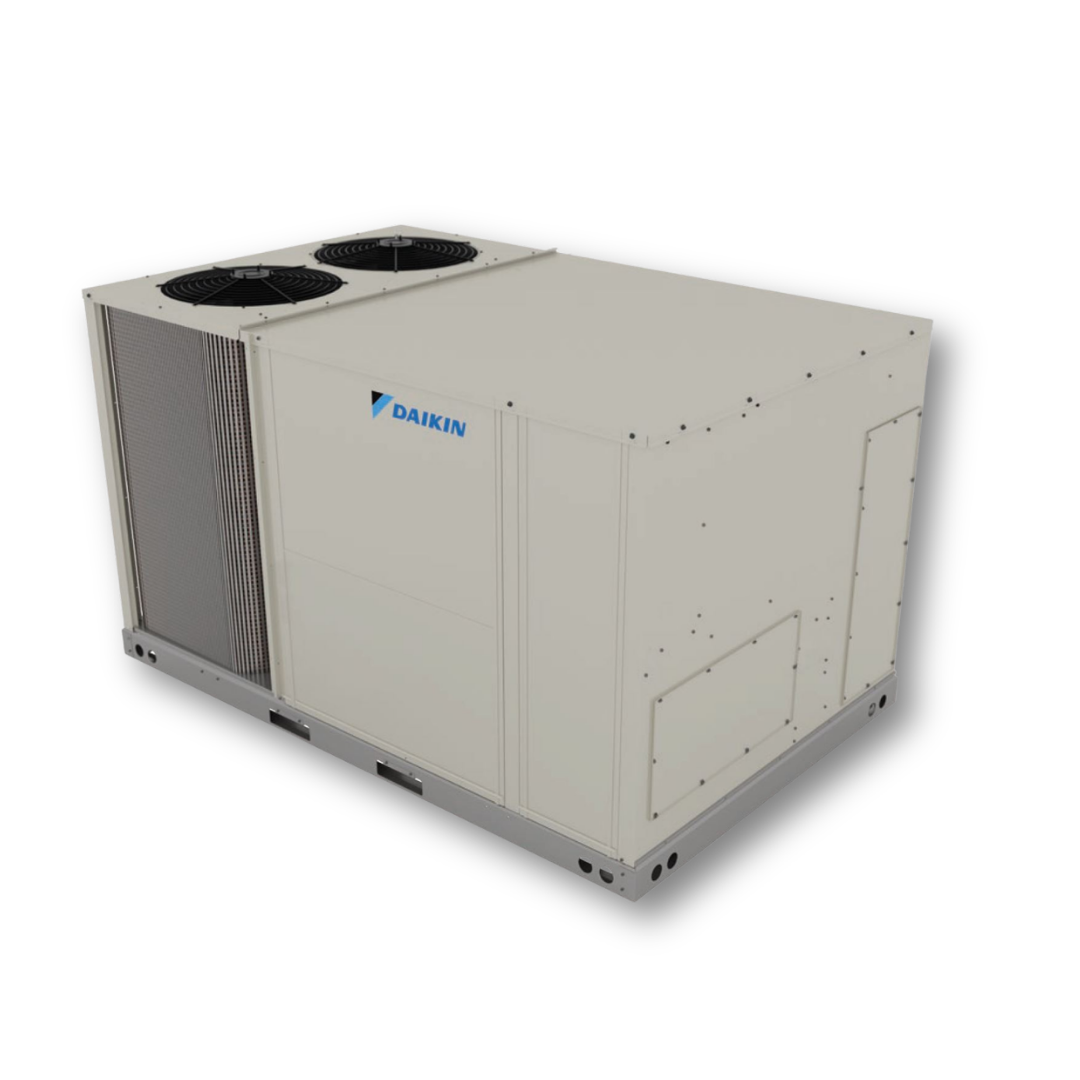

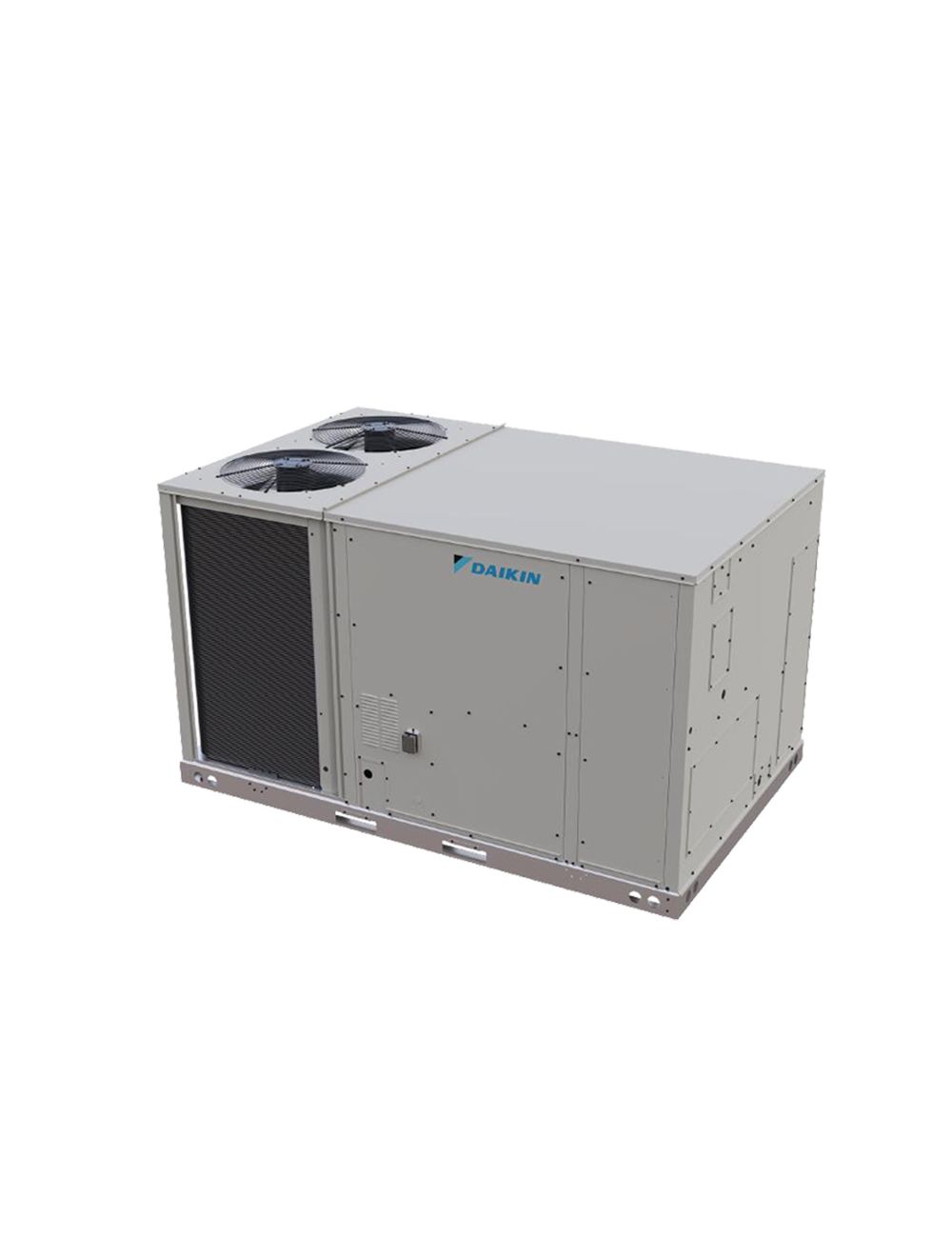

Daikin DSC1203D000001S Light Commercial Packaged Air Conditioner 10 Ton REPLACEMENT DFC1203D000001S

Product Description

The Daikin DSC1203D000001S rooftop packaged unit provides 120,000 BTU of cooling with a 15 IEER rating. Designed for fast and easy installation, this 10-ton system is ideal for both new construction and retrofit projects. It operates on 208-230V three-phase power and uses R32 refrigerant, delivering dependable comfort with reduced operating costs for large commercial buildings.

• Designed for fast and easy installation, ideal for new construction and retrofit projects
• Direct-drive fan provides efficient and quiet operation
• Made with high quality galvanized steel with a powder-paint finish to provide higher corrosion resistance

Product Highlights

This Daikin packaged rooftop unit provides reliable cooling performance for commercial applications, featuring a galvanized steel cabinet and R32 refrigerant.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DSC1203D000001S

Technical Specifications

• Brand: Daikin
• MPN: DSC1203D000001S
• Product Category: Light Commercial
• Product Class: Light Commercial Packaged Air Conditioner
• System Family: Light Commercial Packaged System
• Function Category: Cooling Only
• Product Type: Equipment
• Unit Type: Outdoor
• Market Type: Light Commercial
• Product Family: DSC120D
• Installation Type: Rooftop
• Communication Feature: No
• Power Frequency: 60 Hz
• Power Phase: 3 Ph
• Power Voltage: 208-230 V
• Energy Source: Electric
• ISO Certified: Yes
• Maximum CFM: 3380
• EER: 11.2
• IEER: 15
• Depth: 54.625
• Width: 60.375
• Height: 54.625
• Decibel Level (dBA): 82.6 decibels
• Replaces: DFC1203D000001S
• Drive Type: Direct
• Horsepower: 0.33 HP
• Cooling BTU: 116,000 BTU
• Refrigerant: R32
• Configuration: Downflow, Horizontal
• Compressor Type: Scroll
• Condenser Stages: Single Stage
• Max Breaker Size: 60/60 Amps
• Min. Breaker Size: 47.2/47.2 Amps
• Tonnage: 10 Ton
• Refrigerant Charge: Pre-charged
• Capacity: 120,000 BTU (10 Ton)
• Efficiency: 15.2 IEER / 11.2 EER
• Cooling Stage(s): 2
• Compressor Stage: Two
• Electrical Phase(s): 3-Phase
• Refrigerant Type: R-32
• Amp(s): 60
• Length (Inches): 93.75
• Width (Inches): 60.375
• Voltage Requirements: 208V To 230V
• Model Number: DSC1203D000001S
