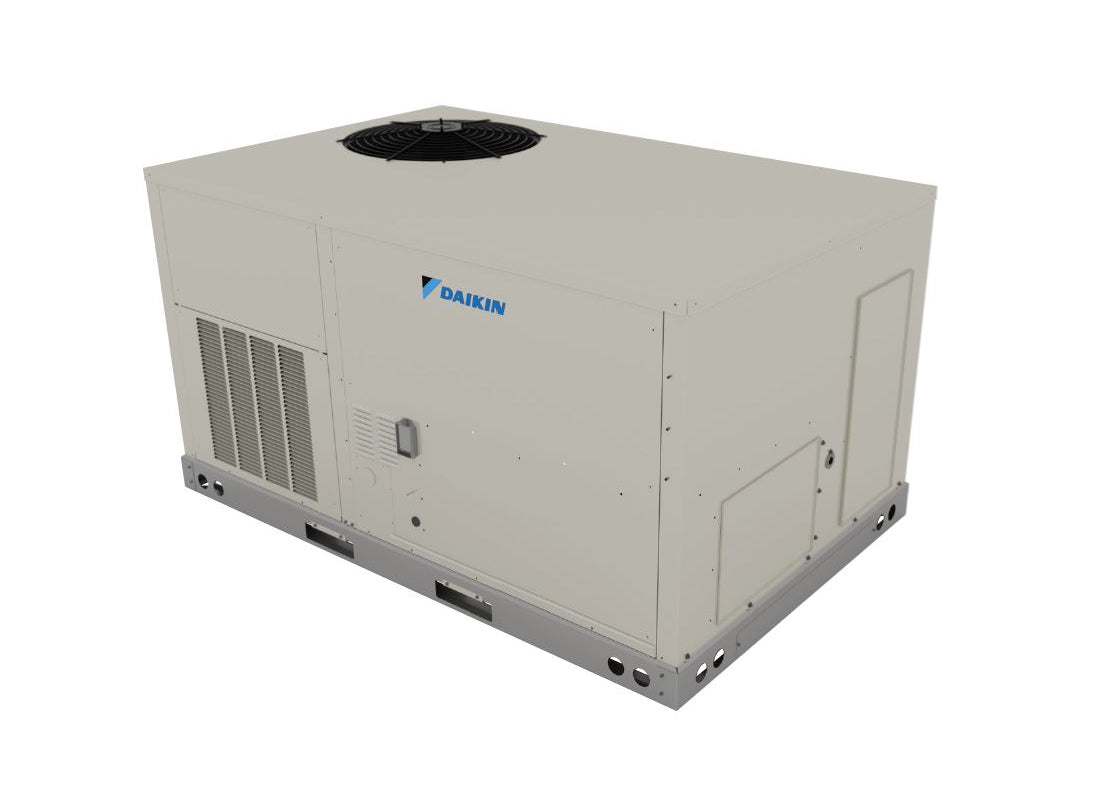

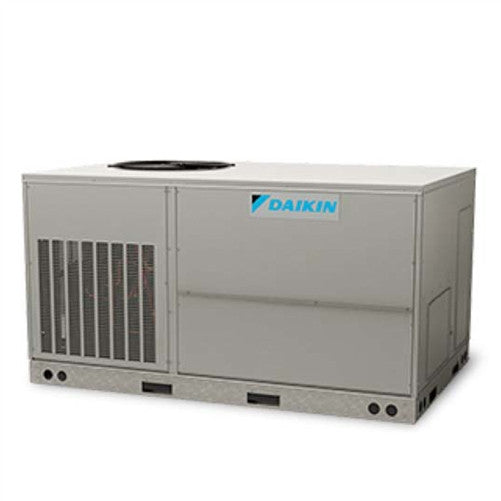

Daikin DSC0603D000001S Light Commercial Packaged Air Conditioner 5 Ton

Product Description

The DAIKIN DSC0603D000001S light commercial packaged air conditioner is designed for fast and easy installation, ideal for new construction and retrofit projects. This 5 ton unit features a direct-drive with airfoil single width, single inlet supply fan with aluminum blades for efficient and quiet operation. It is made with high quality galvanized steel with a powder-paint finish for higher corrosion resistance.

• Direct-drive fan with aluminum blades for efficient and quiet operation.
• Constructed with high-quality galvanized steel and powder-paint finish for corrosion resistance.
• Designed for fast and easy installation in new construction and retrofit projects.

Product Highlights

The Daikin packaged rooftop unit provides efficient cooling performance in one self-contained unit. It features a high-performance, low-noise scroll compressor and a direct-drive fan for optimal airflow control.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DSC0603D000001S

Technical Specifications

• MPN: DSC0603D000001S
• Brand: Daikin
• Product Category: Light Commercial
• Product Class - (PIM): Light Commercial Packaged Air Conditioner
• System Family: Light Commercial Packaged System
• Function Category: Cooling Only
• Product Type: Equipment
• Unit Type: Outdoor
• Market Type: Light Commercial
• Product Family: DSC060D
• Series Name: DS
• Cooling Capacity - (Nominal): 57500 Btu/H
• EER (HSVTC): 11.8
• ENERGY STAR® Certified: No
• SEER (HSVTC): 13.7
• SEER 2 (HSVTC): 13.7
• Installation Type: Rooftop
• Communication Feature: No
• ISO Certified: Yes
• Item Stocking Unit of Measure (UOM): EA
• AFUE: None
• Compressor LRA: 156 A
• Compressor RLA: 15.4 A
• Current Type: AC
• Indoor Blower FLA: 6.9 A
• Outdoor Fan LRA: 4.4 A
• Power Frequency: 60 Hz
• Power Phase: 3 Ph
• Power Voltage: 208-230 V
• Min. Circuit Amps: 28.1/28.1 A
• Total Unit Amps: 24.3 A
• Air Flow Rate (High) - Cooling: 1860 ft³/min
• Air Flow Rate (High) - Heating: 1860 ft³/min
• ANSI Certifed: No
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Condenser Coil Metal Type: Aluminum
• Condenser Coil Rows: 1.0
• Condenser Fan Blade Count: 3.0
• Condenser Fan Diameter: 22 in
• Condenser Fan RPM: 1122 r/min
• Condenser Fin Density - (Fins Per Inch): 23.0
• Dimensions - (Evap Wheel Diameter): 12 in
• Dimensions - (Evap Wheel Width): 11 in
• Dimensions - (Unit Depth): 74 in
• Dimensions - (Unit Height): 39-7/8 in
• Dimensions - (Unit Width): 48-5/16 in
• Energy Source: Electric
• ETL Listed: Yes
• Evap Coil Metal Type: Copper
• Evap Coil Rows: 3.0
• Evap Fin Density - (Fins Per Inch): 16.0
• Evap Motor RPM: 1200 r/min
• Expansion Device: TXV
• External Static Pressure - (Rated): 0.8
• Filter Size - (Max): 20 X 25 X 2
• Filter Size - (Min): 20 X 25 X 2
• Heat Exchanger Type: Air Cooled
• Motor Speed Type: Variable Speed ECM
• Number of Speeds: 5
• Sound Pressure (High) - Cooling: 77 dBA
• Sound Pressure (Super High) - Cooling: 77 dBA
• System High Pressure: 660 lb/in²
• System Low Pressure: 55 lb/in²
• Condensate Drain Outlet: 1-1/4 in
• Refrigerant Type: R-32
• Proposition 65 Label: Yes
• Tonnage: 5
• Operating Mode: Cool Only with Electric Heat
• Amp(s): 40
• Maximum CFM: 1,860
• Cooling Btu: 57,500
• Cooling Stage(s): 1
• Compressor Stage: Single
• Electrical Phase(s): 3-Phase
• UPC #: 633190262943
• Voltage: 208-230V 3PH
• Airflow Direction: Downflow/Horizontal
