Product Description

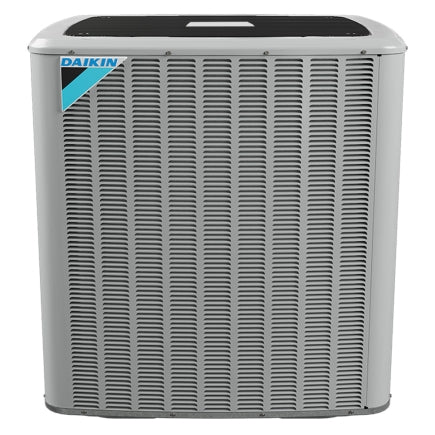

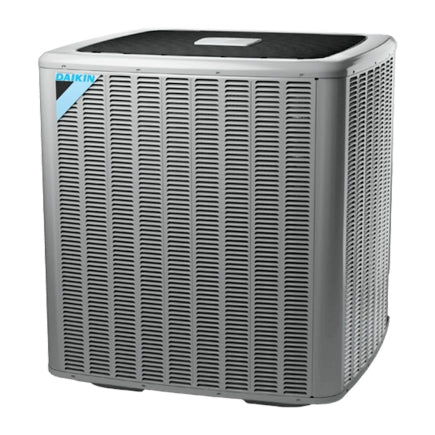

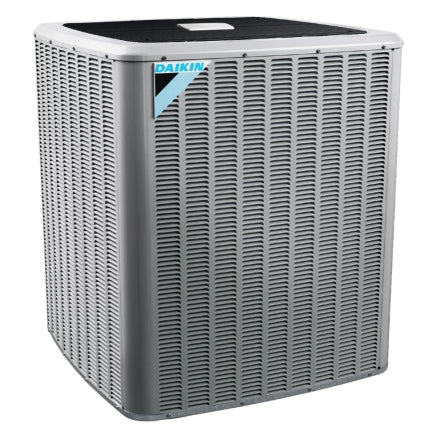

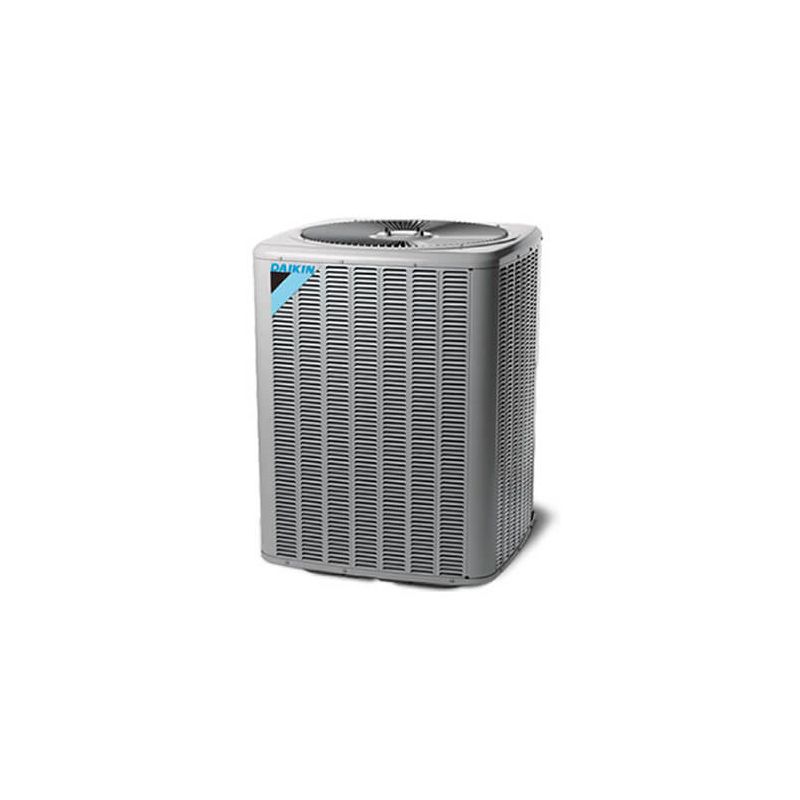

The Daikin DH6TE12040 Heat Pump Condensing Unit provides energy-efficient cooling and heating performance in one self-contained unit. Suitable for ground-level or rooftop installations, this 10 ton, 14.3 SEER2 heat pump uses 460v, 3 phase electrical and R32 chlorine-free refrigerant. The design includes an Innovative louvered sound control top.
- Two stage condenser
- Certified for use with R32 refrigerant
Product Highlights
This Daikin split heat pump is adaptable for a wide range of commercial building sizes and layouts, and are valued for their energy efficiency and year-round climate control capabilities.
Product Information
Standard Information
-
Brand: DAIKIN
-
Manufacturer Part Number: DH6TE12040
Technical Specifications
-
SKU: DH6TE12040
-
EER: 11
-
IEER: 14.1
-
Depth: 35.5"
-
Width: 35.5"
-
Height: 41.5"
-
Decibel Level (dBA): 84 Decibels
-
Replaces: DZ14XA1204
-
Electrical: 460v 3 Phase 60 Hz
-
Cooling BTU: 115,000 BTU
-
Heating BTU: 100,00 BTU
-
Refrigerant: R32
-
Brand/Manufacturer: Daikin
-
Phase: Three Phase
-
Compressor Type: Scroll
-
Condenser Stages: Two Stage
-
Max Breaker Size: 35 Amps
-
Min. Breaker Size: 22 Amps
-
Tonnage: 10 Ton
-
Liquid Valve Size: 5/8"
-
Refrigerant Charge: 110 oz
-
Suction Valve Size: 1 3/8"
-
AHRI Number: 215885511
-
Avg Coverage Area: 3,000+ Sq Ft
-
Heat Pump Efficiency ( HSPF ): 3.5
-
Line Set Connection Type: Sweat
-
Liquid Line Size: 5/8 inch
-
Max Overcurrent Protection: 25 amps
-
Primary Heating Capacity: 95,001 - 100,000 BTU
-
Suction Line Size: 1 1/8 inch
-
System Application Type: Central Split Systems
-
Voltage: 480 V
-
Product Height (in): 41.5
-
Product Length (in): 35.5
-
Product Width (in): 35.5
-
Cooling Capacity: 115000 Btu/hr
-
Electrical Phase: 3-Phase
-
Nominal Capacity: 10 ton
-
EER Rating: 11.2
-
Sound Rating: 85.9 dB
-
Ampere Rating: 7.7 A
-
Frequency Rating: 60 Hz
-
Heating Capacity: 97000 Btu/hr
-
Horse Power: 1 hp
-
Capacity in Ton: 10
-
Refrigerant Type: R-32
-
Valve Type: Sweat
-
Capacity in Tons: 10
-
Min. Circuit Amp: 20.8 A
-
Construction: Powder Painted Nickel Galvanized Steel
-
Connection Method: Sweat
-
Capacity (Max.)Heating at 17 Deg F: 60 mbh
-
Capacity (Max.)Heating at 47 Deg F: 97 mbh
-
Capacity (Max.)Heating at 5 Deg F: 45.2 mbh
-
Capacity Heating: 97000 Btu/hr
-
Full Load Amperage: 3.5 A
-
Locked Rotor Amperage: 69 A
-
Power Consumption Rated (Max.)Heating @ 17 Deg F: 7.82 kW
-
Power Consumption Rated (Min. - Max.)Heating @ 47 Deg F: 8.36 kW
-
Rated Load Amperage[Compressor]: 7.7 A
-
Locked Rotor Amps: 69 A
-
Maximum Overcurrent Amps: 25 A
-
Maximum Overcurrent Protection: 25 A
-
Stages of Cooling: 2
-
Standards: ASHRAE 90.1, AHRI Certified, ETL Listed
-
Voltage Rating: 460 V
-
Compressor: Two Stage
-
Region Compatibility: Nationwide
