Product Description

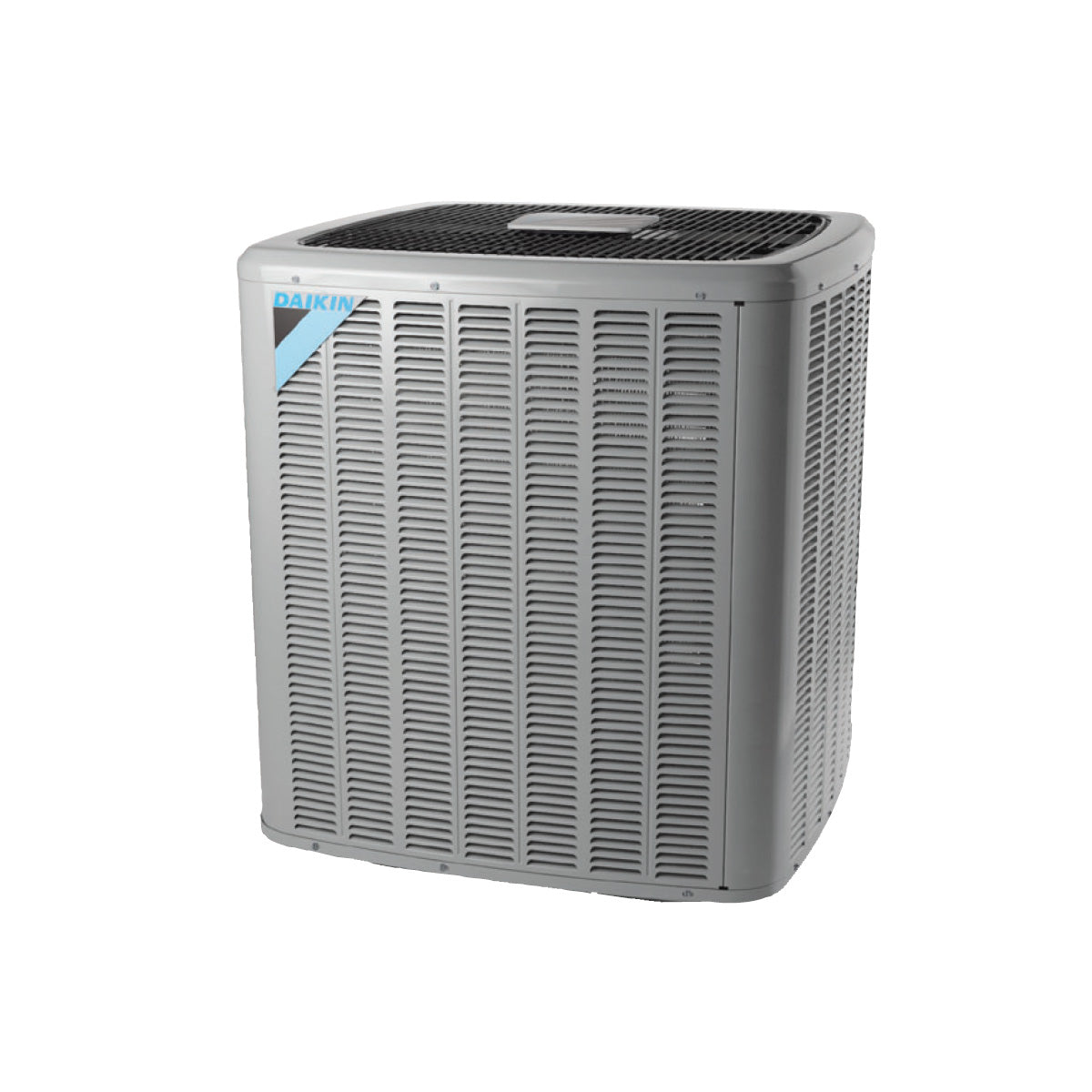

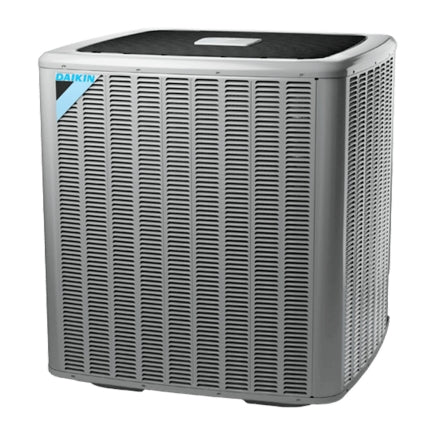

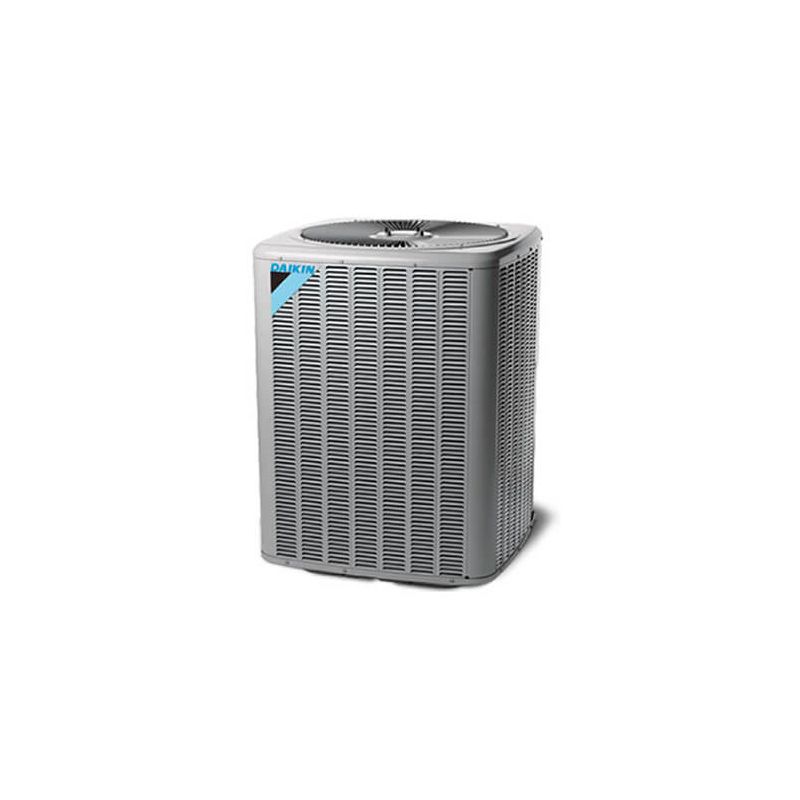

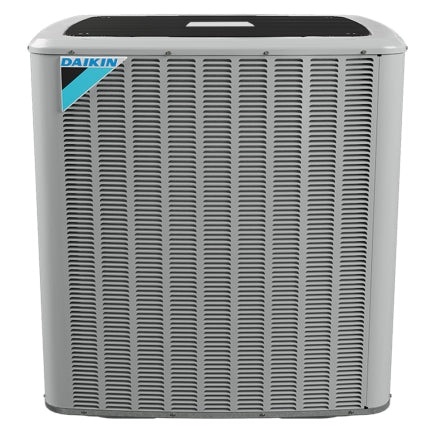

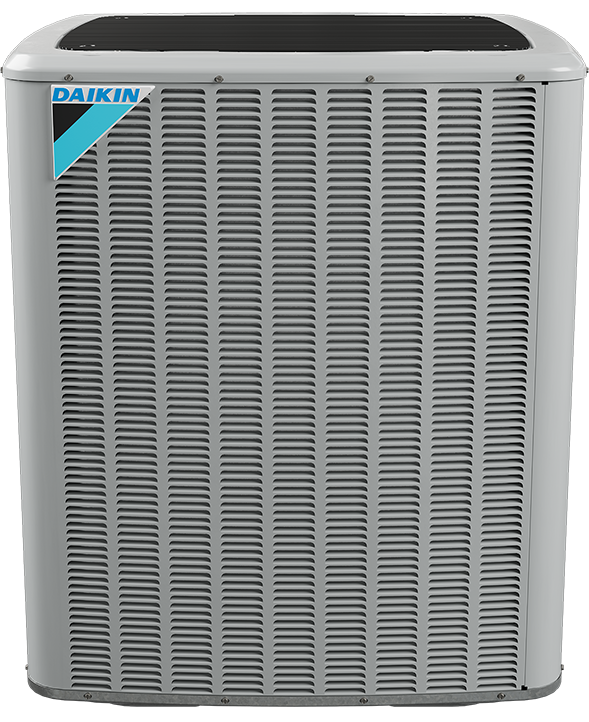

The Daikin DH6TE12030 split heat pump provides energy-efficient cooling and heating. This 10 ton unit is suitable for ground-level or rooftop installations. Features a two-stage tandem compressor design with internal pressure release valve and a high-capacity, steel-cased, bi-flow heat pump filter drier. It uses R-32 refrigerant and operates at 208/230V 3 Phase 60 Hz.
- Two-Stage tandem compressor design with internal pressure release valve.
- High-capacity, steel-cased, bi-flow heat pump filter drier.
- Liquid refrigerant return protection.
Product Highlights
This Daikin split system heat pump offers efficient climate control for residential and light commercial applications, with a focus on durability and performance.
Product Information
Standard Information
-
Brand: DAIKIN
-
Manufacturer Part Number: DH6TE12030
-
Country of Origin: USA
Technical Specifications
-
MPN: DH6TE12030
-
Brand: Daikin
-
Product Category: Light Commercial
-
Product Class - (PIM): Split Heat Pump
-
System Family: Light Commercial Split System
-
Function Category: Heat Pump
-
Product Type: Equipment
-
Unit Type: Outdoor
-
Market Type: Residential-Single Family
-
Product Family: DH6TE_3
-
Cooling Capacity - (Nominal): 115000 Btu/H
-
COP17 (HSVTC): 2.25
-
COP47 (HSVTC): 3.4
-
COP47 Ducted: 3.4
-
EER (HSVTC): 11.2
-
EER Ducted: 11.2
-
ENERGY STAR® Certified: No
-
IEER: 16.0
-
Produced in US: Yes
-
Compressor Stages: Two Stage
-
Compressor Type: Scroll
-
Expansion Device: TXV
-
Refrigerant Type: R-32
-
Tonnage: 10.0
-
Power Voltage: 208/230 V
-
Power Phase: 3 Ph
-
Power Frequency: 60 Hz
-
Cooling Operation Range - (Std. Max): 120 °F
-
Cooling Operation Range - (Std. Min): 55 °F
-
Heating Operation Range - (Std.Max): 70 °F
-
Heating Operation Range - (Std.Min): -5 °F
-
Rated Cooling Condition - (Ambient DB): 95 °F
-
Rated Cooling Condition - (Ambient WB): 75 °F
-
Rated Cooling Condition - (Room DB): 80 °F
-
Rated Cooling Condition - (Room WB): 67 °F
-
Rated Heating Condition - (Ambient DB): 47 °F
-
Rated Heating Condition - (Ambient WB): 43 °F
-
Rated Heating Condition - (Room DB): 70 °F
-
Rated Heating Condition - (Room WB): 60 °F
-
Max Overcurrent Protection: 50 A
-
Min. Circuit Amps: 41.6 A
-
Rated Load Amps: 15.4 A
-
Valve Size Liquid (O.D.): 5/8 in
-
Valve Size Suction (O.D.): 1-1/8 in
-
Pipe Size Liquid: 5/8 in
-
Factory Std. Refrigerant Charge: 110 oz
-
Refrigerant Pre-Charged Line Length: 15 ft
-
Standard Line Set Length - (Max): 150 ft
-
Standard Line Set Length - (Vertical): 25 ft
-
Vertical Length - (OD Above ID): 25 ft
-
US HTS Code: 8415.90.8065
-
Canadian HTS Code: 8415.90.90.00
-
Heating Capacity - (Max): 97000 Btu/H
-
Cooling Capacity - (Rated): 115000 Btu/H
-
Heating Capacity - (Rated): 97000 Btu/H
-
SKU: DH6TE12030
-
EER: 11.2
-
Depth: 35.5"
-
Width: 35.5"
-
Height: 41.5"
-
Decibel Level (dBA): 84 Decibels
-
Replaces: DZ14XA1203
-
Electrical: 208/230v 3 Phase 60 Hz
-
Cooling BTU: 115,000 BTU
-
Heating BTU: 100,00 BTU
-
Phase: 3 ph
-
Condenser Stages: Two Stage
-
Max Breaker Size: 70 Amps
-
Min. Breaker Size: 46.4 Amps
-
Liquid Valve Size: 5/8"
-
Suction Valve Size: 1 3/8"
-
Up to: 3.5 HSPF
-
Capacity: 7.5 to 10 Tons
-
Model: DH6TE12030
-
UPC: 633190265951
-
AHRI Number: 215885510
-
Product Height (in): 41.5
-
Avg Coverage Area: 3,000+ Sq Ft
-
Electrical Phase: 3-Phase
-
Line Set Connection Type: Sweat
-
Liquid Line Size: 5/8 inch
-
Primary Heating Capacity: 110,001 - 115,000 BTU
-
Suction Line Size: 1 1/8 inch
-
System Application Type: Central Split Systems
-
Voltage: 240
-
Region Compatibility: Nationwide
-
Model Number (s): DH6TE12030
-
Type: Heat Pump
-
Ton: 10.0 Ton
-
Cooling Stage(s): 2
-
Compressor Stage: Two
-
Electrical Phase(s): 3-Phase
-
Suction Valve Size (Inches): 1 1/8
-
Liquid Valve Size (Inches): 5/8
-
Amp(s): 50
-
Heating Stage(s): 2
-
Height (Inches): 41 1/2
-
Width (Inches): 35 1/2
-
Depth (Inches): 35 1/2
-
Item Name: Split System Heat Pump
-
Series: DH6TE Series
-
Nominal Capacity: 10 ton
-
Cooling Capacity: 115000 Btu/hr
-
EER Rating: 11.2
-
Sound Rating: 85.9 dB
-
Voltage Rating: 208/230 V
-
Ampere Rating: 15.4 A
-
Frequency Rating: 60 Hz
-
Heating Capacity: 97000 Btu/hr
-
Valve Type: Sweat
-
Capacity in Tons: 10
-
Refrigerant Charge: 110 oz
-
Dimensions: 41-1/2 in H x 35-1/2 in W x 35-1/2 in D
-
Construction: Powder Painted Nickel Galvanized Steel
-
Connection Method: Sweat
-
Capacity (Max.)Heating at 17 Deg F: 60 mbh
-
Capacity (Max.)Heating at 47 Deg F: 97 mbh
-
Capacity (Max.)Heating at 5 Deg F: 45.2 mbh
-
Capacity Heating at 47 Deg F: 97 mbh
-
Capacity Heating at 17 Deg F: 60 mbh
-
Electrical Conduit Size: 1/2 in, 3/4 in
-
Full Load Amperage: 7 A
-
Locked Rotor Amperage: 156.4 A
-
Power Consumption Rated (Max.)Heating @ 17 Deg F: 7.82 kW
-
Power Consumption Rated (Min. - Max.)Heating @ 47 Deg F: 8.36 kW
-
Rated Load Amperage[Compressor]: 15.4 A
-
Locked Rotor Amps: 156.4 A
-
Maximum Overcurrent Amps: 50 A
-
Stages of Cooling: 2
-
Standards: ASHRAE 90.1, AHRI Certified, ETL Listed
