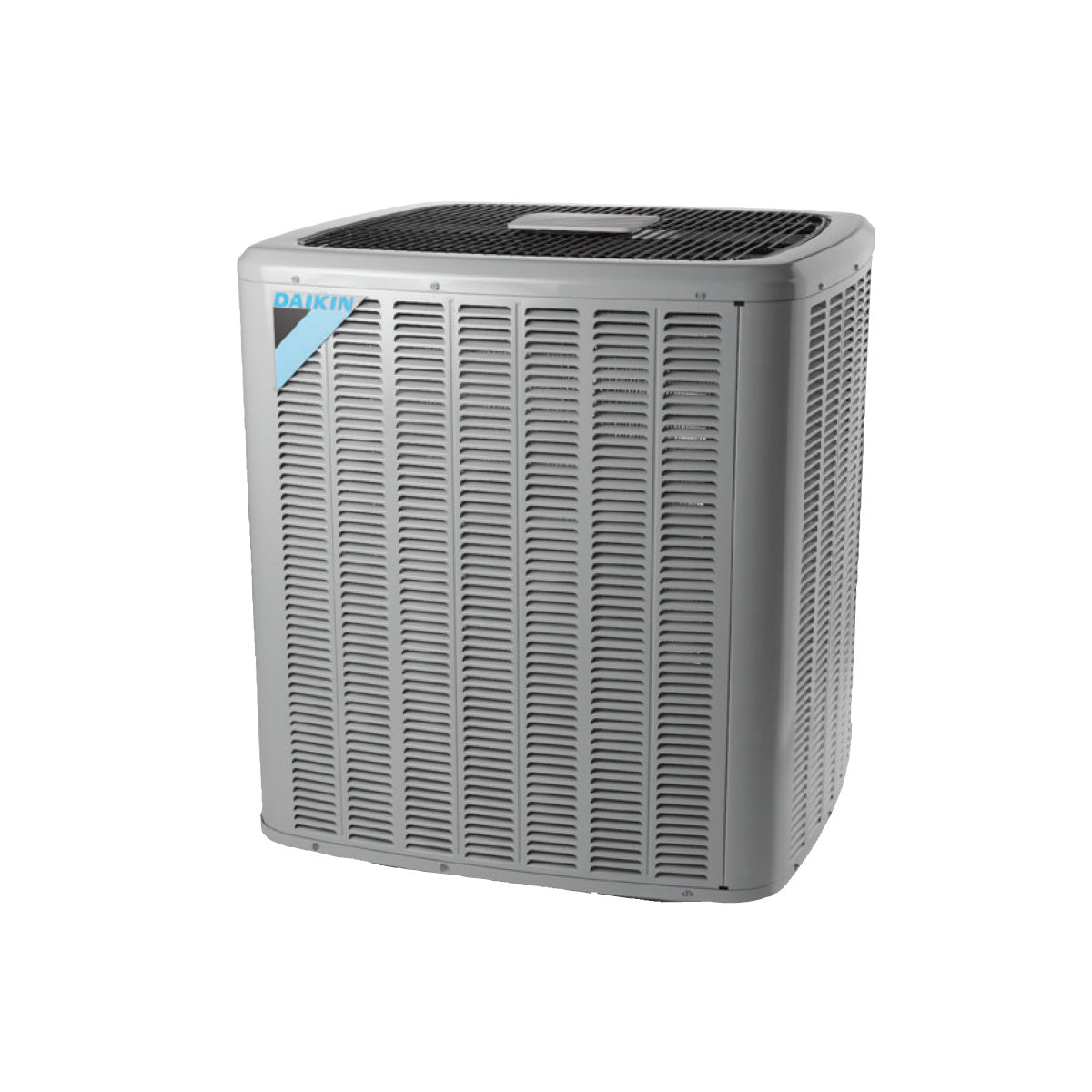

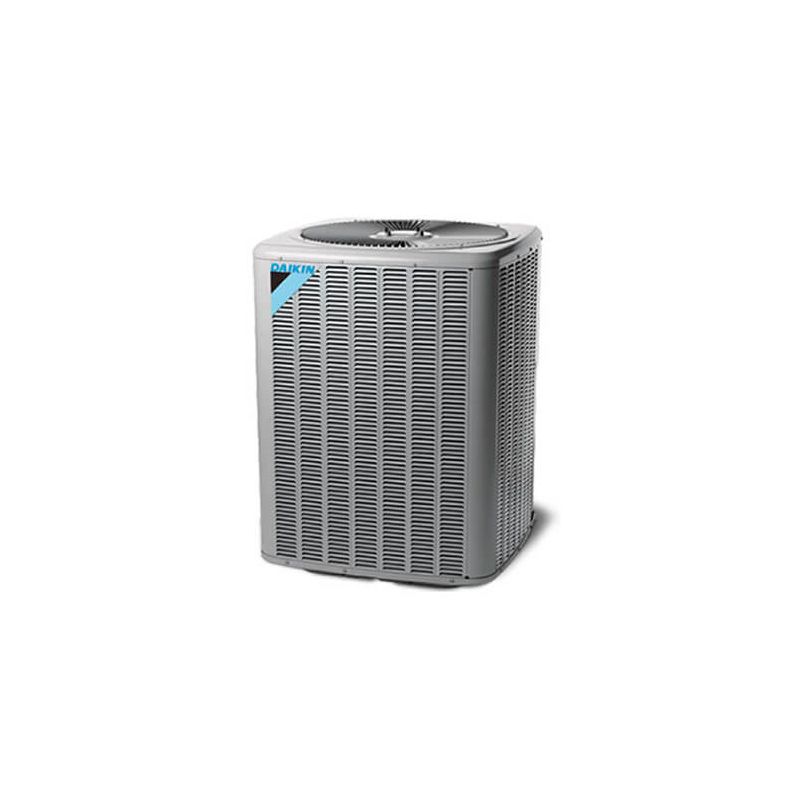

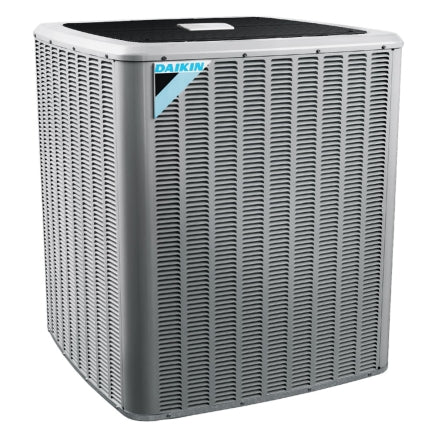

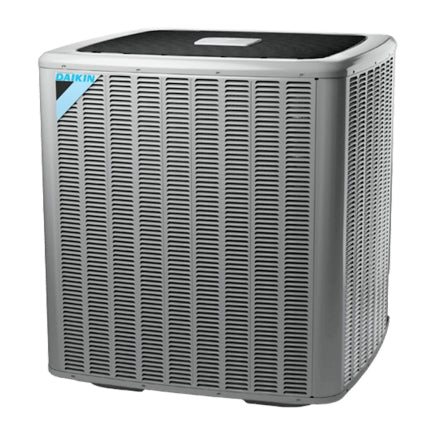

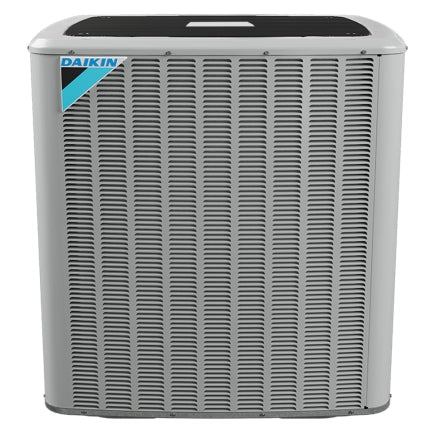

Daikin DH6TE09030 Split Heat Pump, Two Stage 7.5 ton

Product Description

The Daikin DH6TE09030 split heat pump is a two stage unit providing energy-efficient cooling and heating. Suitable for ground-level or rooftop installations, this 7.5 ton unit features a two-stage tandem compressor design with internal pressure release valve. It is designed for use with R-32 refrigerant.

• Features a two-stage tandem compressor design with internal pressure release valve
• Equipped with a high-capacity, steel-cased, bi-flow heat pump filter drier
• Complies with ASHRAE 90.1-2016 and is AHRI Certified and ETL Listed

Product Highlights

This Daikin heat pump provides efficient and reliable climate control for residential and light commercial applications. Its robust construction and advanced features ensure long-lasting performance.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DH6TE09030
• Country of Origin: USA

Technical Specifications

• MPN: DH6TE09030
• Brand: Daikin
• Product Category: Light Commercial
• Product Class - (PIM): Split Heat Pump
• System Family: Light Commercial Split System
• Function Category: Heat Pump
• Product Type: Equipment
• Unit Type: Outdoor
• Market Type: Residential-Single Family
• Product Family: DH6TE_3
• Cooling Capacity - (Nominal): 92000 Btu/H
• COP17 (HSVTC): 2.25
• COP47 (HSVTC): 3.5
• COP47 Ducted: 3.5
• EER (HSVTC): 11.4
• EER Ducted: 11.4
• ENERGY STAR® Certified: No
• IEER: 16.0
• HSPF (HSVTC): 3.5
• Cooling Operation Range - (Std. Max): 125 °F
• Cooling Operation Range - (Std. Min): 55 °F
• Heating Operation Range - (Std.Max): 70 °F
• Heating Operation Range - (Std.Min): -5 °F
• Rated Cooling Condition - (Ambient DB): 95 °F
• Rated Cooling Condition - (Ambient WB): 75 °F
• Rated Cooling Condition - (Room DB): 80 °F
• Rated Cooling Condition - (Room WB): 67 °F
• Rated Heating Condition - (Ambient DB): 47 °F
• Rated Heating Condition - (Ambient WB): 43 °F
• Rated Heating Condition - (Room DB): 70 °F
• Rated Heating Condition - (Room WB): 60 °F
• Compressor RLA: 14.1 A
• Max Overcurrent Protection: 50 A
• Min. Circuit Amps: 38.7 A
• Power Frequency: 60 Hz
• Power Phase: 3 Ph
• Power Voltage: 208/230 V
• Rated Load Amps: 14.1 A
• Compressor Stages: Two Stage
• Compressor Type: Scroll
• Dimensions - (Unit Depth): 35.5 in
• Dimensions - (Unit Height): 41.5 in
• Dimensions - (Unit Width): 35.5 in
• Expansion Device: TXV
• Refrigerant Type: R-32
• Valve Size Liquid (O.D.): 5/8 in
• Valve Size Suction (O.D.): 1-1/8 in
• Weight - (Unit): 386 lb
• Cooling Capacity - (Max): 92000 Btu/H
• Cooling Capacity - (Rated): 92000 Btu/H
• Heating Capacity - (Max): 85000 Btu/H
• Heating Capacity - (Rated): 85000 Btu/H
• Tonnage: 7.5 Ton
• Additional Refrigerant Charge - (oz/ft): 1.54
• Factory Std. Refrigerant Charge: 110 oz
• Refrigerant Pre-Charged Line Length: 15 ft
• Standard Line Set Length - (Max): 150 ft
• Standard Line Set Length - (Vertical): 25 ft
• Vertical Length - (OD Above ID): 25 ft
• Proposition 65 Label: Yes
• Case Qty: 1.0
• Dimensions - (Case Depth): 37.00 in
• Dimensions - (Case Height): 44.00 in
• Dimensions - (Case Width): 37.00 in
• Dimensions - (Shipping Unit Depth): 37.00 in
• Dimensions - (Shipping Unit Height): 44.00 in
• Dimensions - (Shipping Unit Width): 37.00 in
• Shipping Volume - (Unit): 60236.000 in³
• Truck Factor: 0.0
• Volume - (Case): 60236.000 in³
• Decibel Level (dBA): 84 Decibels
• Replaces: DZ14XA0903
• Electrical: 208/230v 3 Phase 60 Hz
• Cooling BTU: 93,000 BTU
• Heating BTU: 82,000 BTU
• Phase: Three Phase
• Condenser Stages: Two Stage
• Max Breaker Size: 60 Amps
• Min. Breaker Size: 39.2 Amps
• Liquid Valve Size: 5/8"
• Refrigerant Charge: Pre-Charged For: 15'
• Suction Valve Size: 1 3/8"
• Model Number (s): DH6TE09030
• Type: Heat Pump
• Cooling Btu: 92,000
• Cooling Stage(s): 2
• Compressor Stage: Two
• Electrical Phase(s): 3-Phase
• Suction Valve Size (Inches): 1 1/8
• Liquid Valve Size (Inches): 5/8
• UPC #: 633190265937
• Amp(s): 50
• Voltage: 208/230V
• Heating Stage(s): 2
• AHRI Number: 215885508
• Product Height (in): 41.5
• Avg Coverage Area: 3,000+ Sq Ft
• Product Length (in): 35.5
• Product Width (in): 35.5
• Cooling Capacity: 6+ Ton
• Heat Pump Efficiency (HSPF): 3.5
• Line Set Connection Type: Sweat
• Liquid Line Size: 5/8 inch
• Primary Heating Capacity: 85,001 - 90,000
• System Application Type: Central Split Systems
• Region Compatibility: Nationwide
